Lenkeng KVM HDMI Extender over Ethernet 4K60Hz 70m Loop IR LKV565KVM

Product code: 20614720 // MPN: LKV565KVM

€123,84 (inc. VAT)

Available from 1 to 3 days

Add to wishlist

USB USB 3.0 Extender Cable (5m) ATEN

Code: 20843522

€42,90

Available from 4 to 10 days

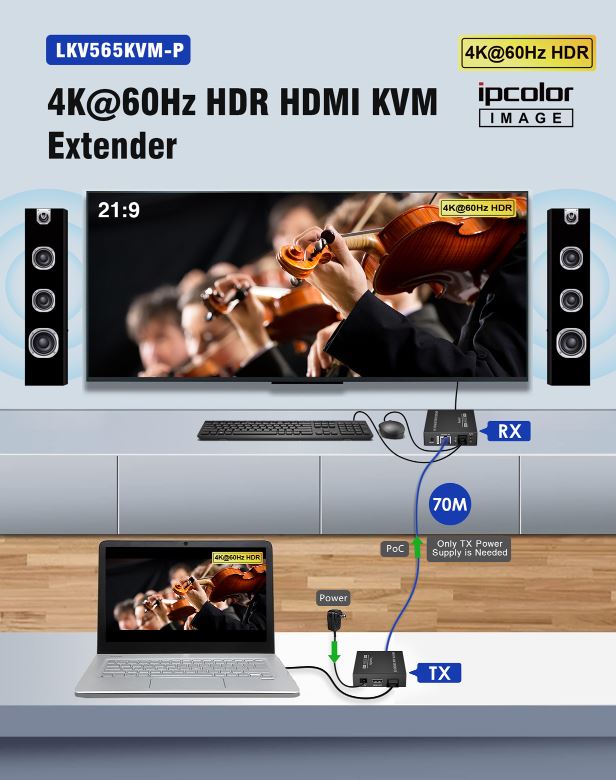

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI loop out, KVM function, 3.5mm stereo audio output, etc. This kit is a reliable, ultrahigh- definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.

ipcolor IMAGE
4K@60Hz
HDR
Visually Lossless
Ultra Low Latency
KVM
Widescreen Resolutions
70M
HDMI Loop-out
Auto Down-Scaling
3.5mm L/R Output
Lightning Protection-Surge Protection-ESD Protection

HDMI length ≤ 5m
Maximum transfer rate 18Gbps
Compatibility HDMI 2.0
HDCP 2.2
Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 3440x1440, 2560x1440, 2560x1080, 2048x1080, 1920x1440, 1920x1200, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
Transmission distance CAT6/6A/7 ≤ 60m
Audio formats LPCM/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos
USB version USB 1.1, compatible with USB 1.0
Power Supply TX: DC 5V/2A，RX: PoC (Powered by TX)
Power Consumption TX+RX<8W
Working -10℃~60℃
Storage temperature -30℃~70℃
Humidity 0~90% RH (no condensation)
Housing lron
Weight TX: 146g，RX: 146g
Color Black
Dimensions 85.0(L)x75.5(W)x21.5(H)mm
Protection ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
