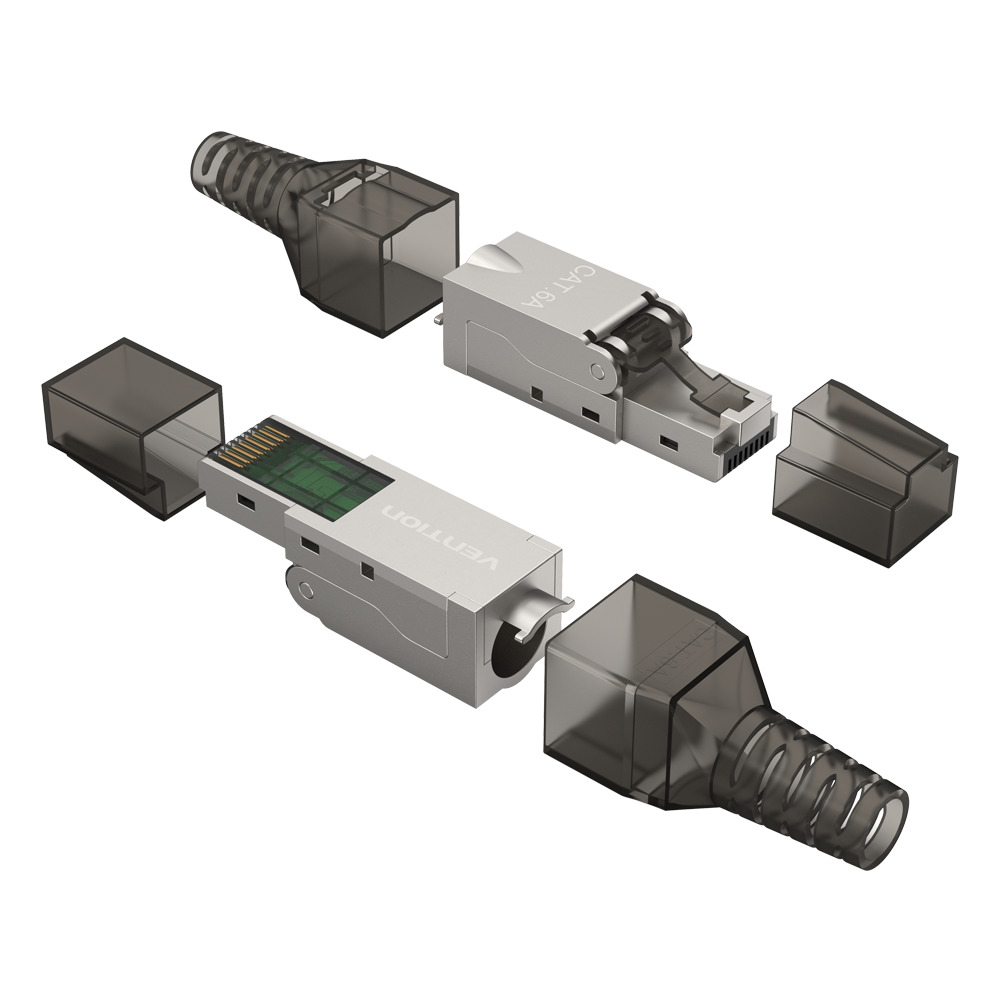

The Vention IDIH0 is a premium, heavy-duty Toolless RJ45 Connector designed for CAT6A networking. Unlike standard plugs that require a dedicated crimping tool, this is designed for "field termination," meaning you can assemble it by hand using the internal load bar and the screw-on boot.

Toolless Design: No crimper required. The connector uses a hinged "butterfly" or screw-cap mechanism to press the wires into the IDC (Insulation Displacement Connector) terminals.
CAT6A Performance: Rated for 10Gbps data transmission and 500MHz bandwidth—perfect for future-proofing your home or office network.
Full Metal Shielding: The Zinc Alloy housing provides excellent protection against EMI (Electromagnetic Interference), which is crucial for 10G speeds.
Integrated Boot: Includes a built-in strain relief boot that protects the cable's bend radius and secures the connection.

Type: FTP / Shielded.
Material: Zinc Alloy (Shell) + Gold-plated Phosphor Bronze (Pins).
Compatibility: Works with 22-24 AWG solid or stranded cables.
Standards: Meets TIA/EIA 568A/B standards.
Reusability: Unlike standard crimp-on plugs, these can often be opened and re-terminated if you make a mistake (though it's best to get it right the first time!).
