PC CASE

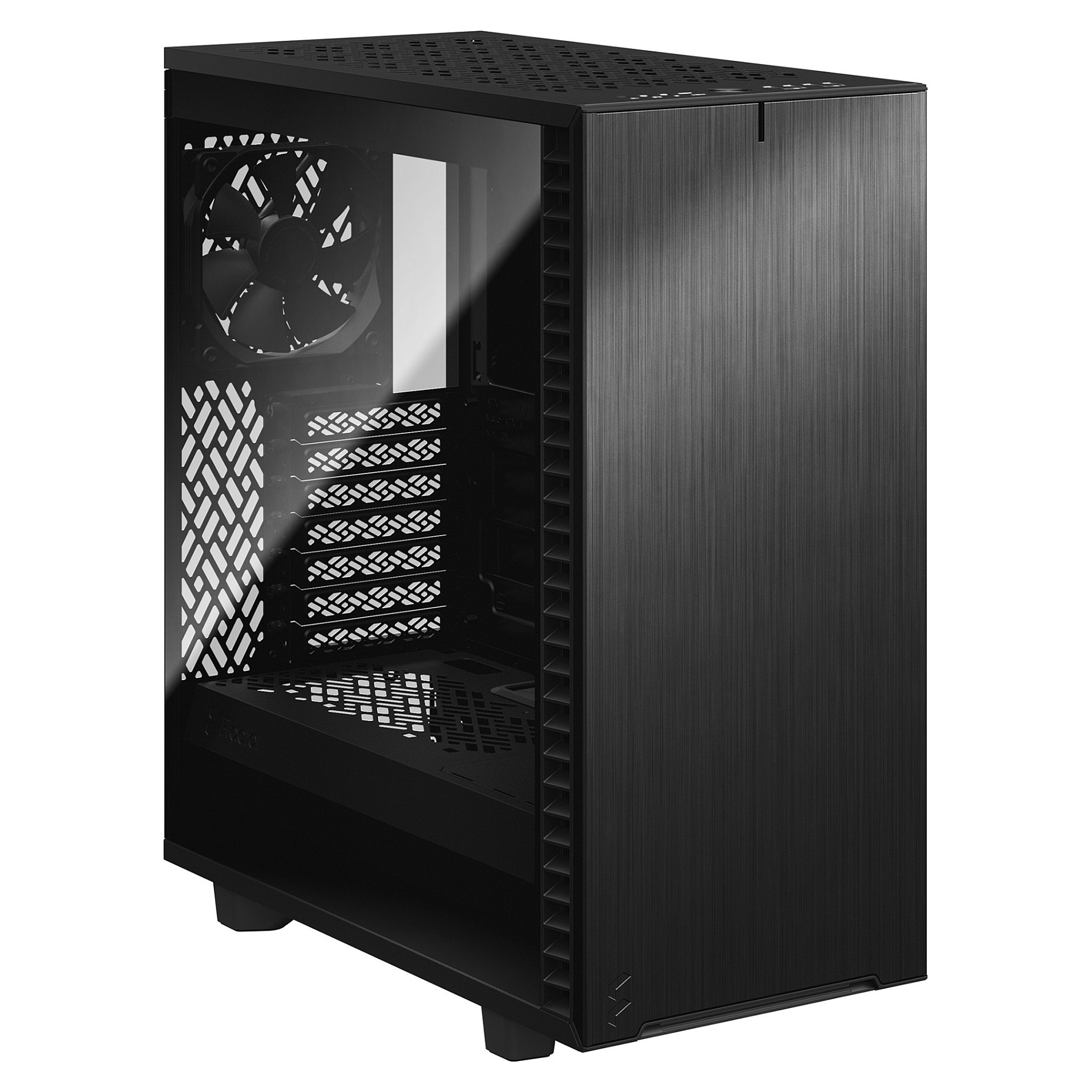

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

A cleaner look

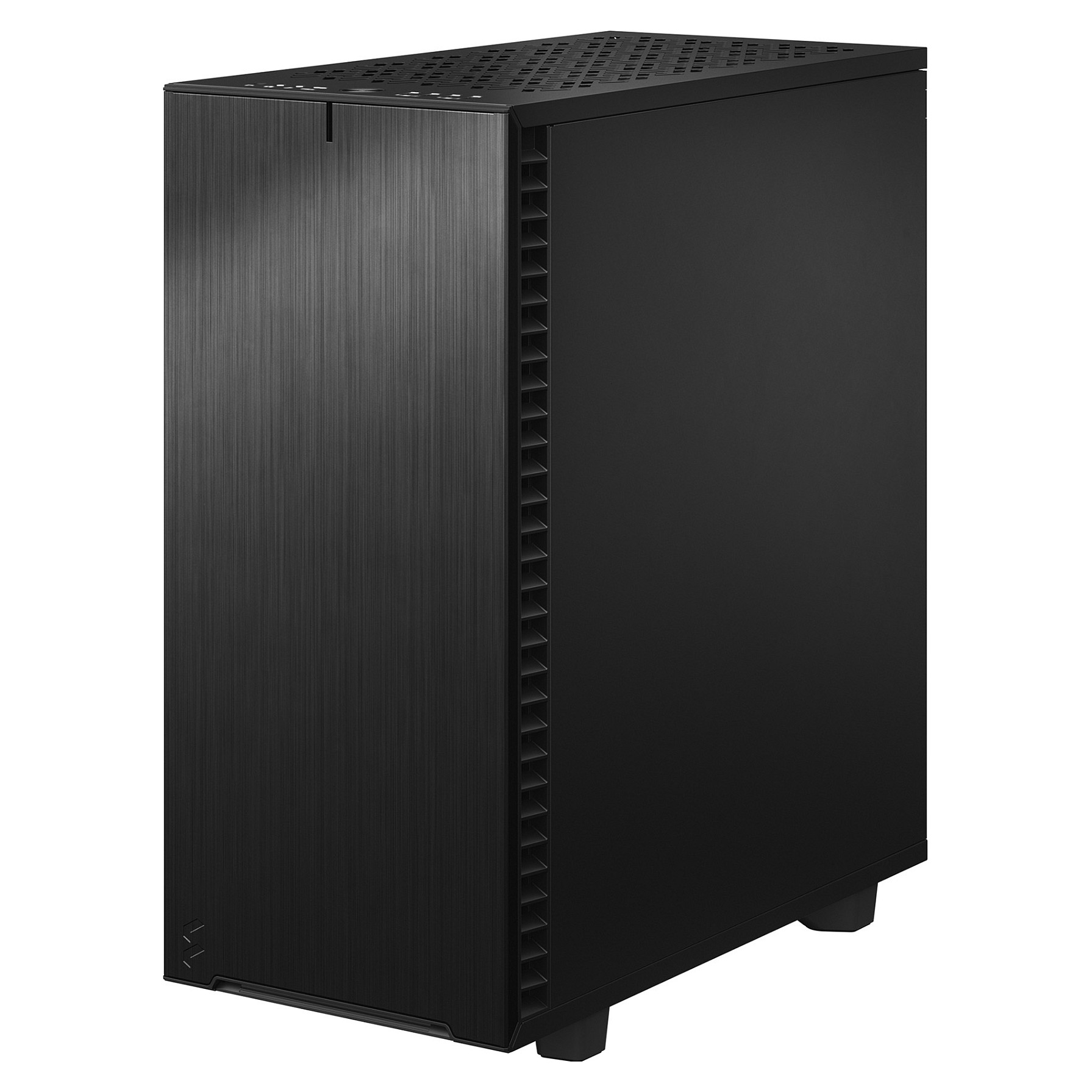

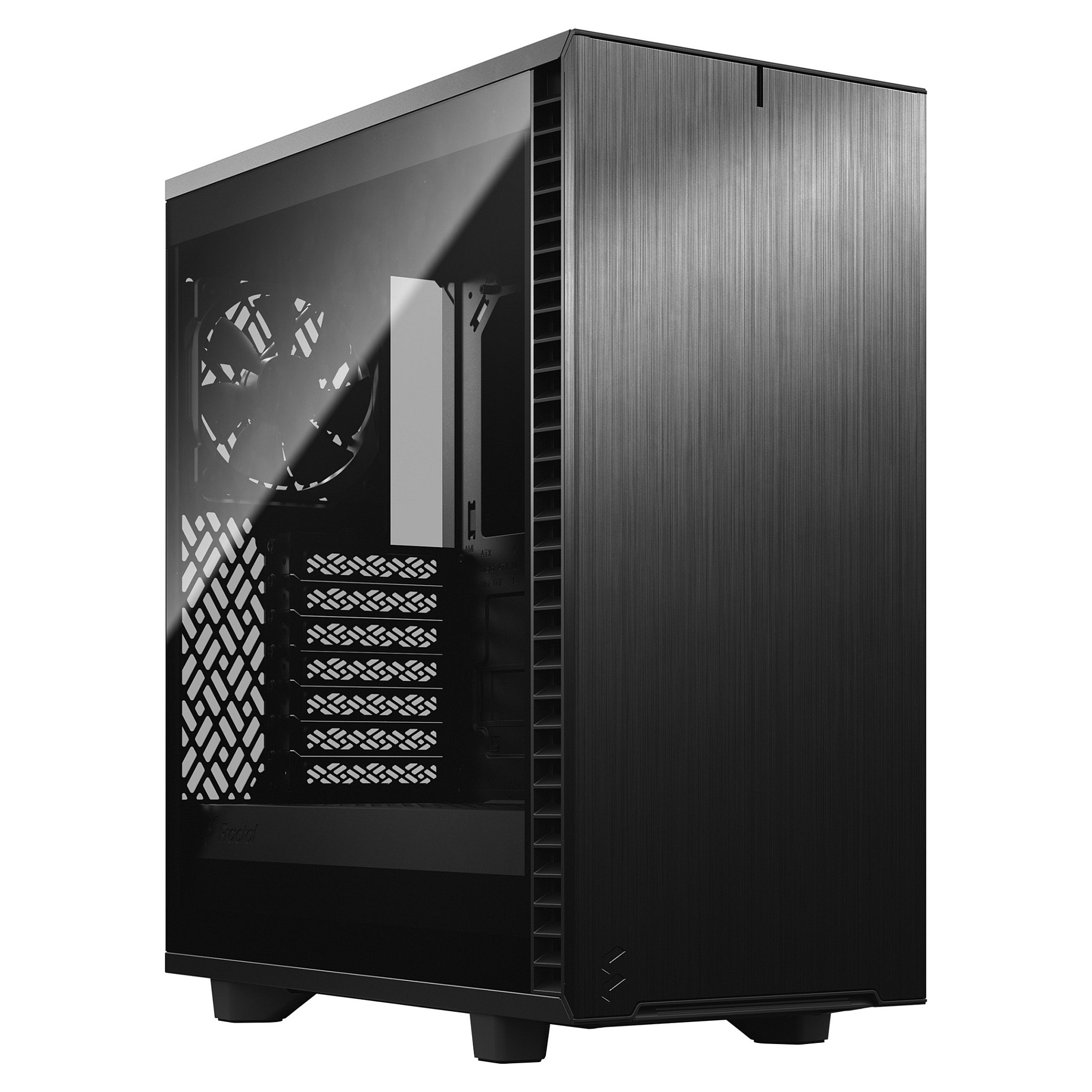

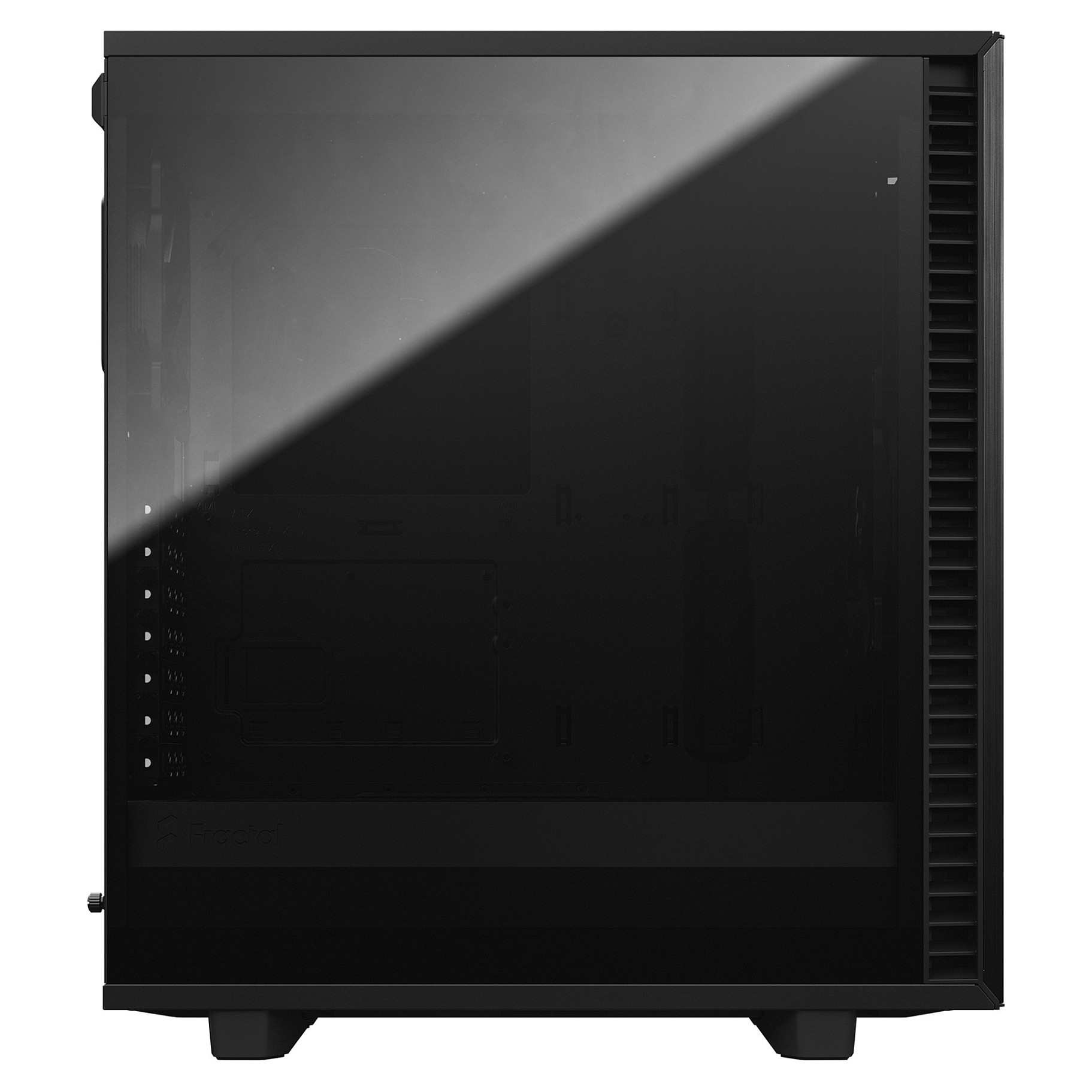

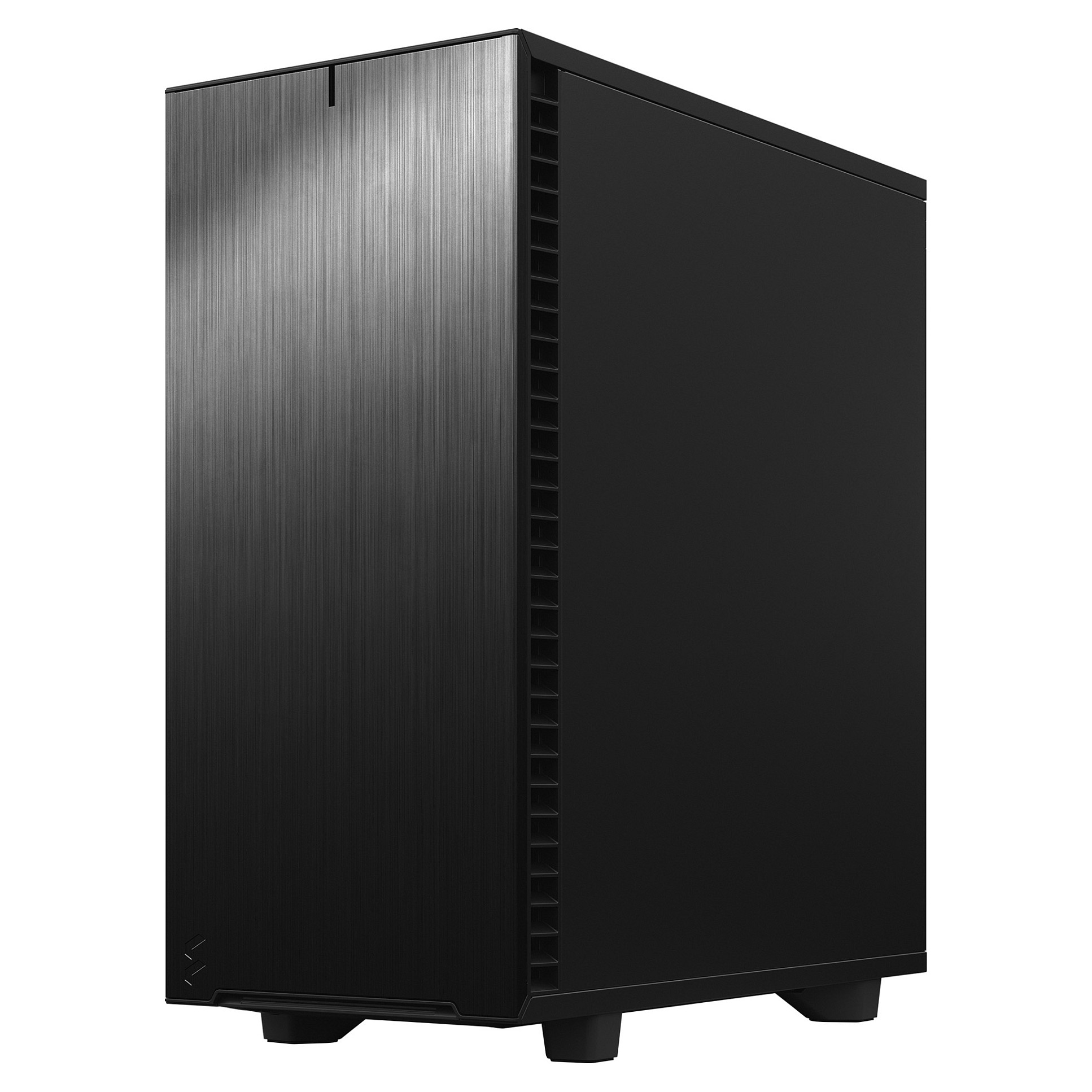

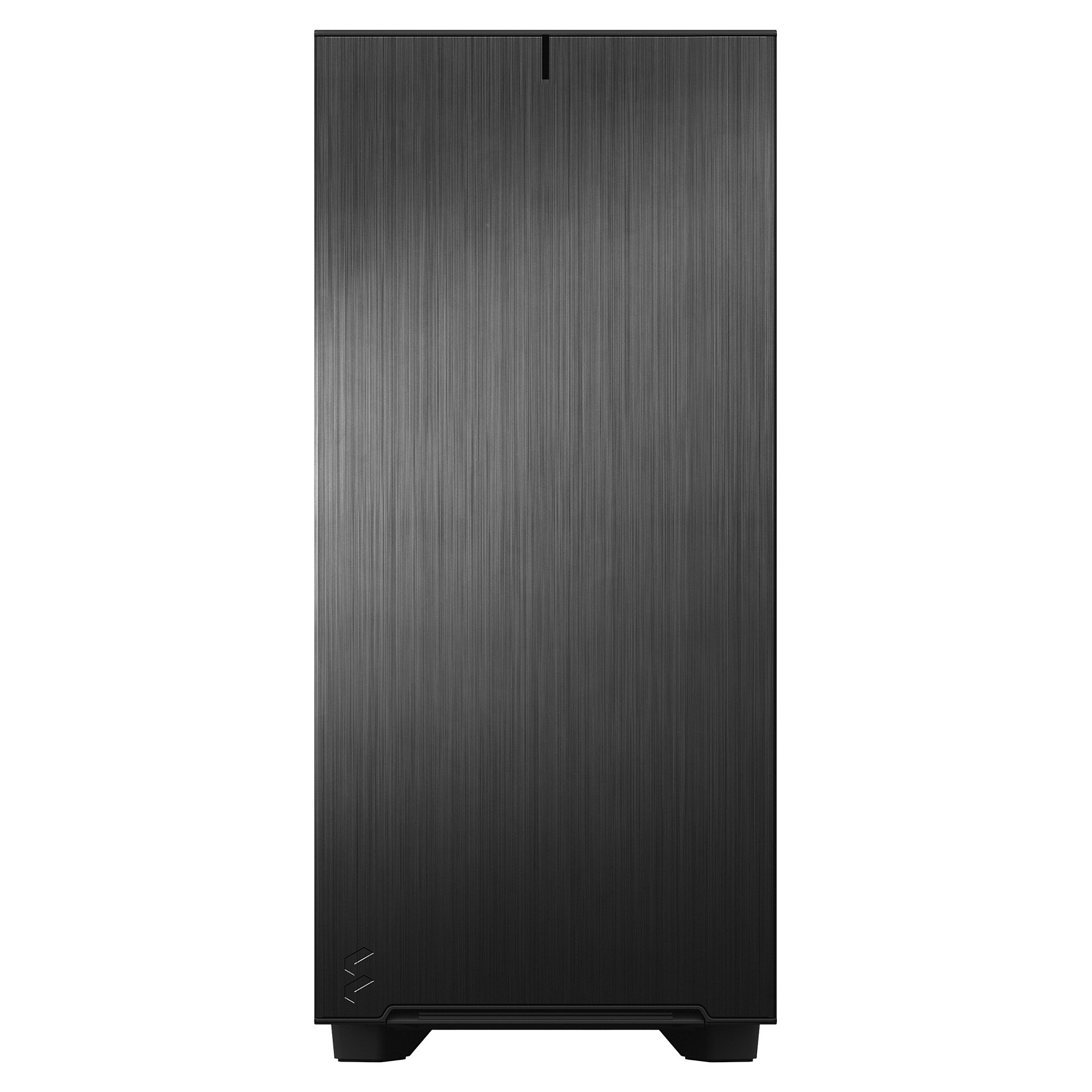

Brushed aluminum front and interchangeable side panels give a very clean look

Compact yet spacious

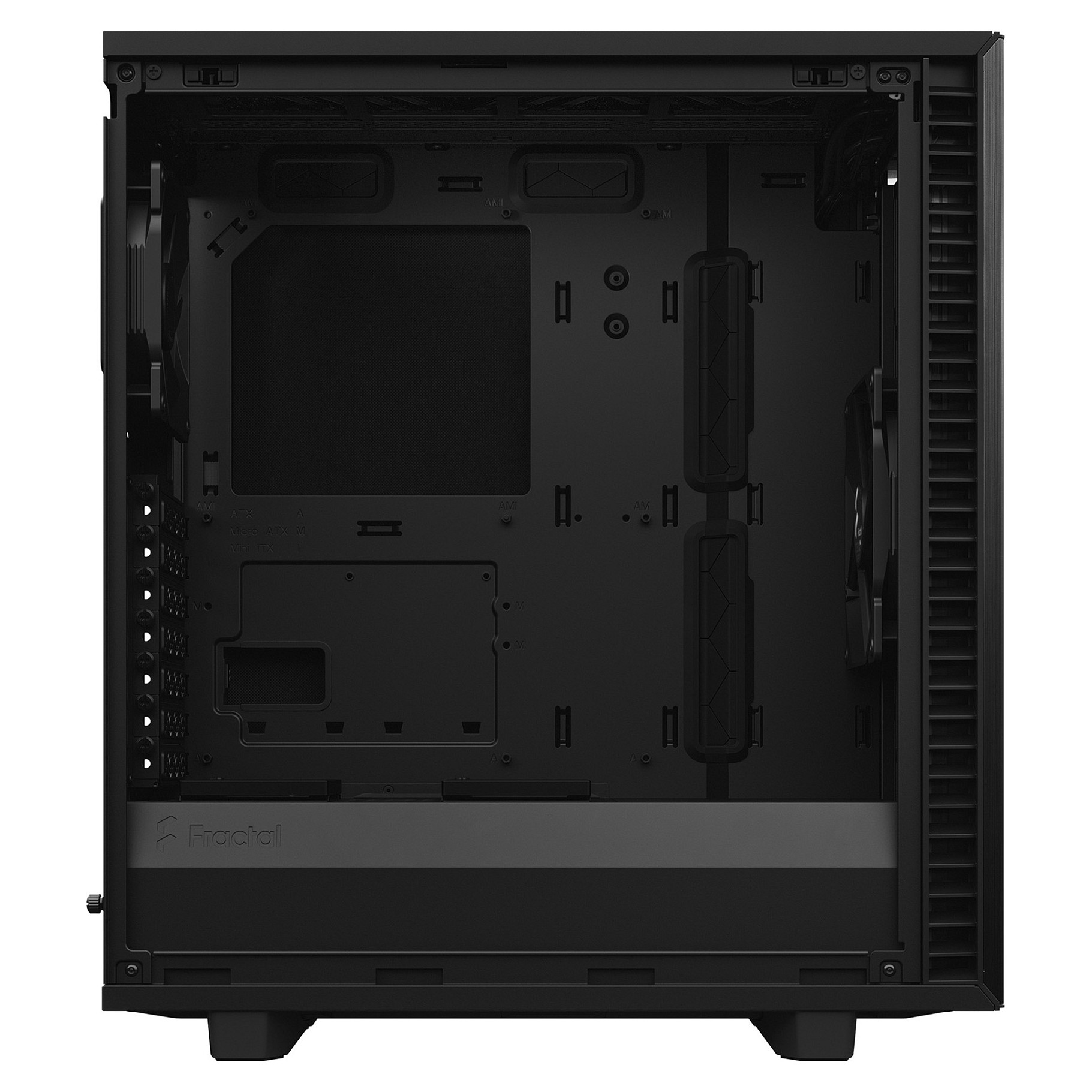

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example. you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet

- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look

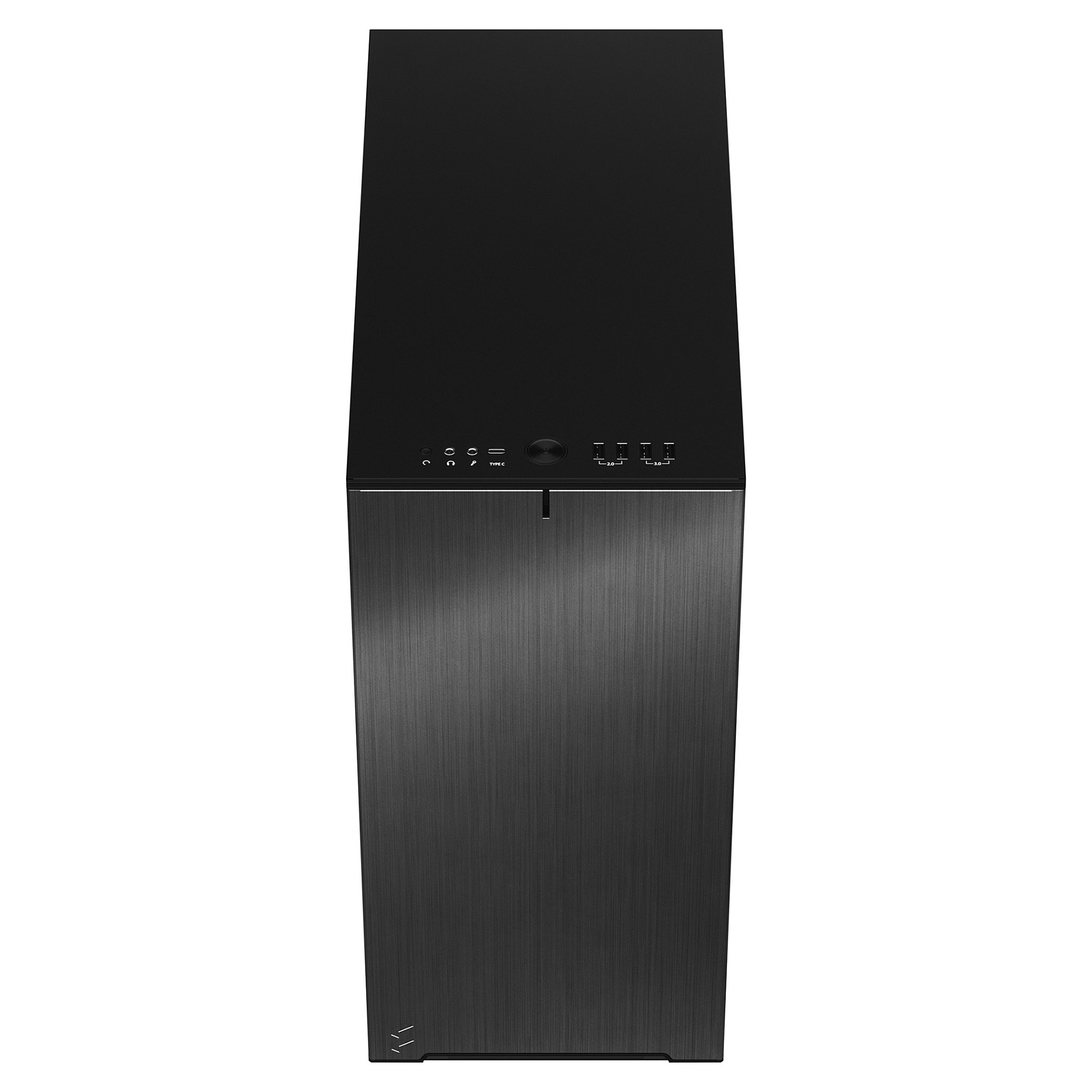

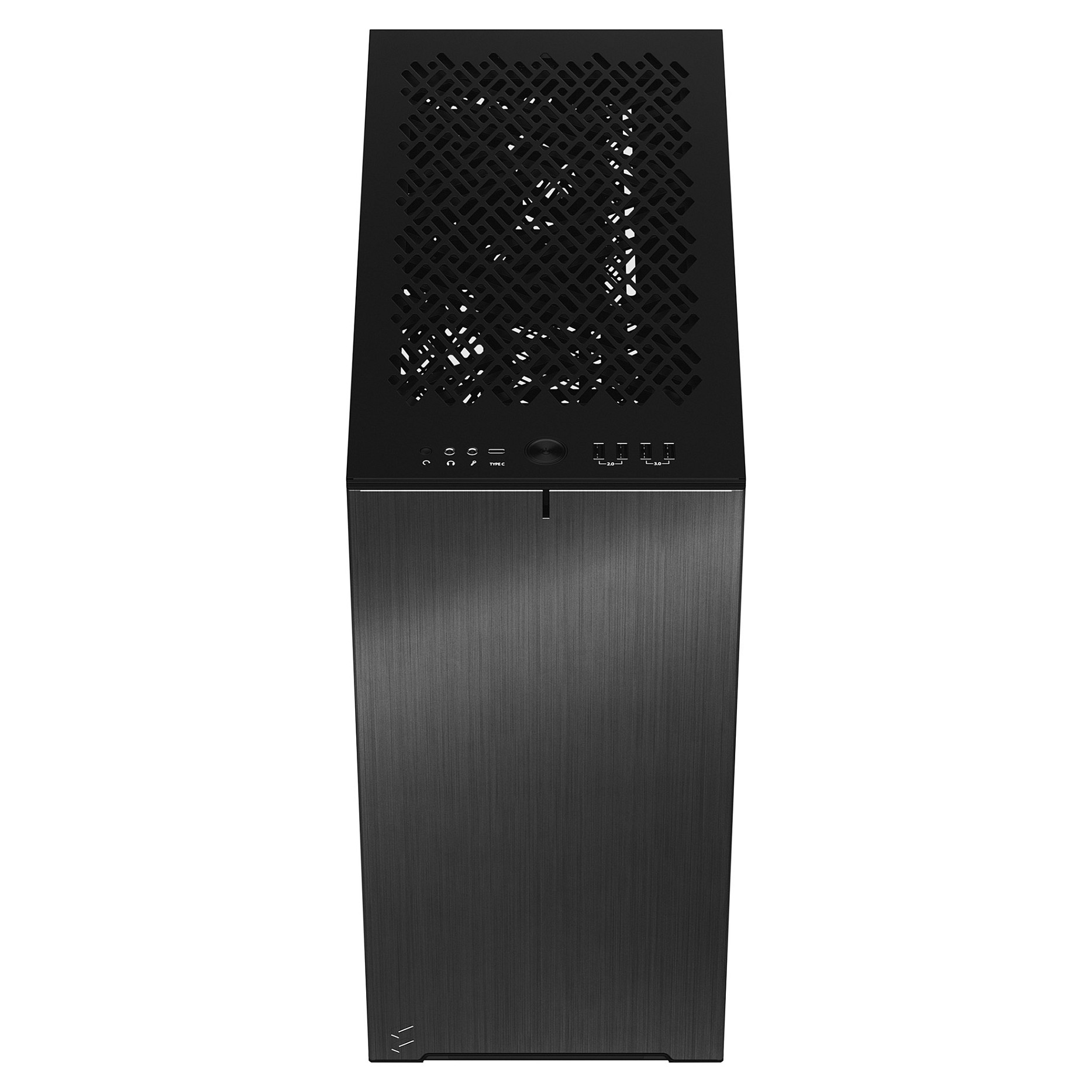

- Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling

- Install up to 7x 120 mm or 4x 140 mm fans. and radiators up to 360 mm

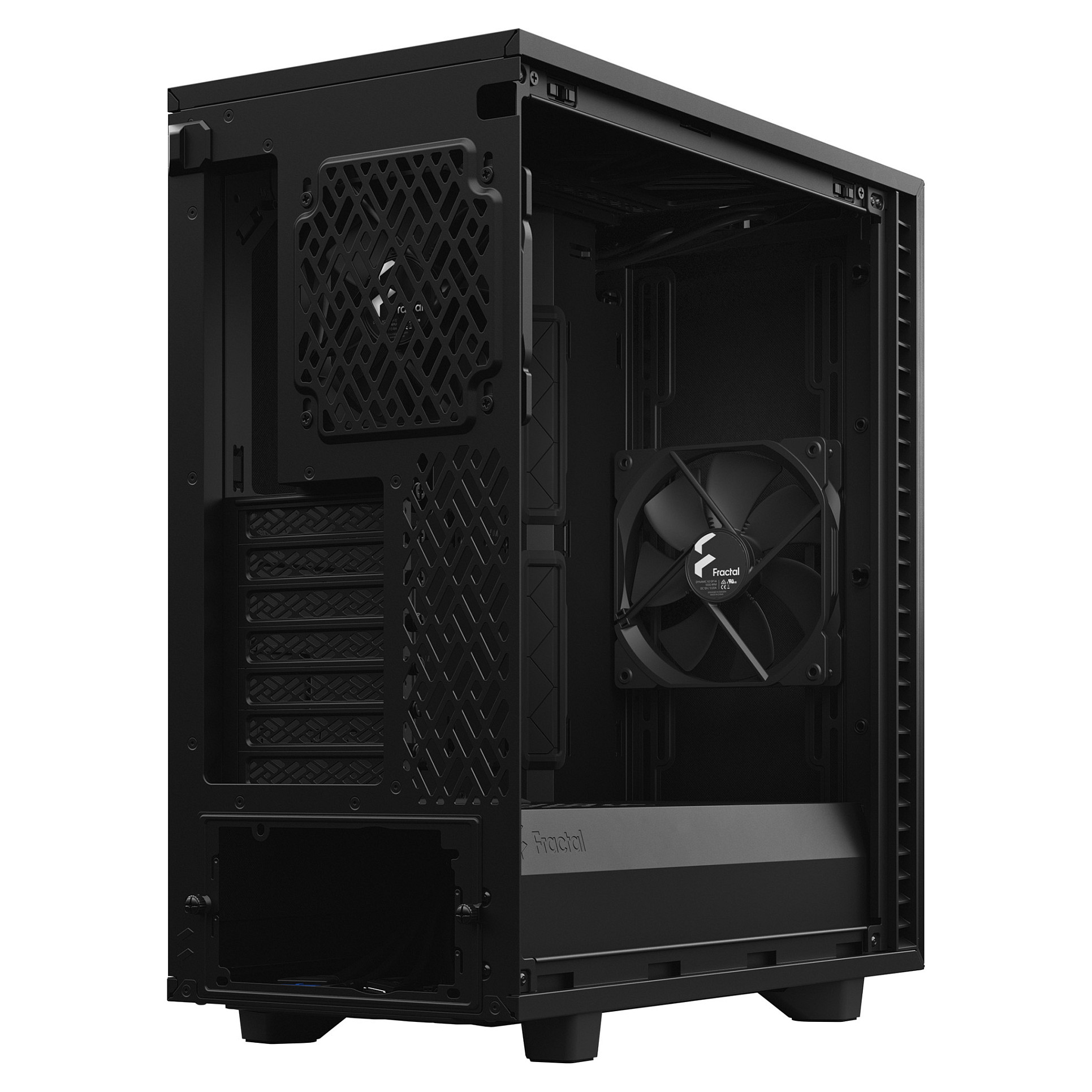

- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

Robust Front I/O

Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.

Concealed storage

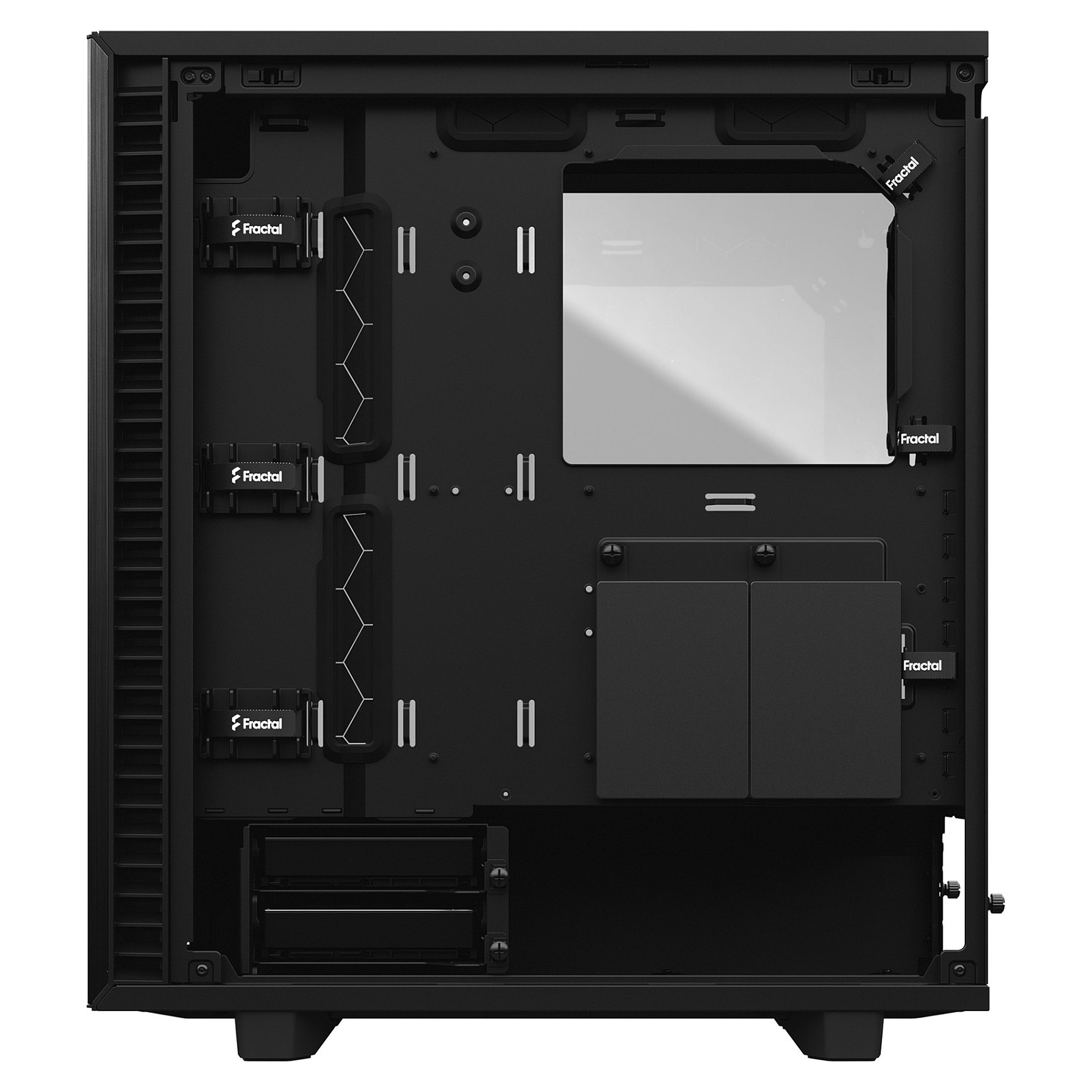

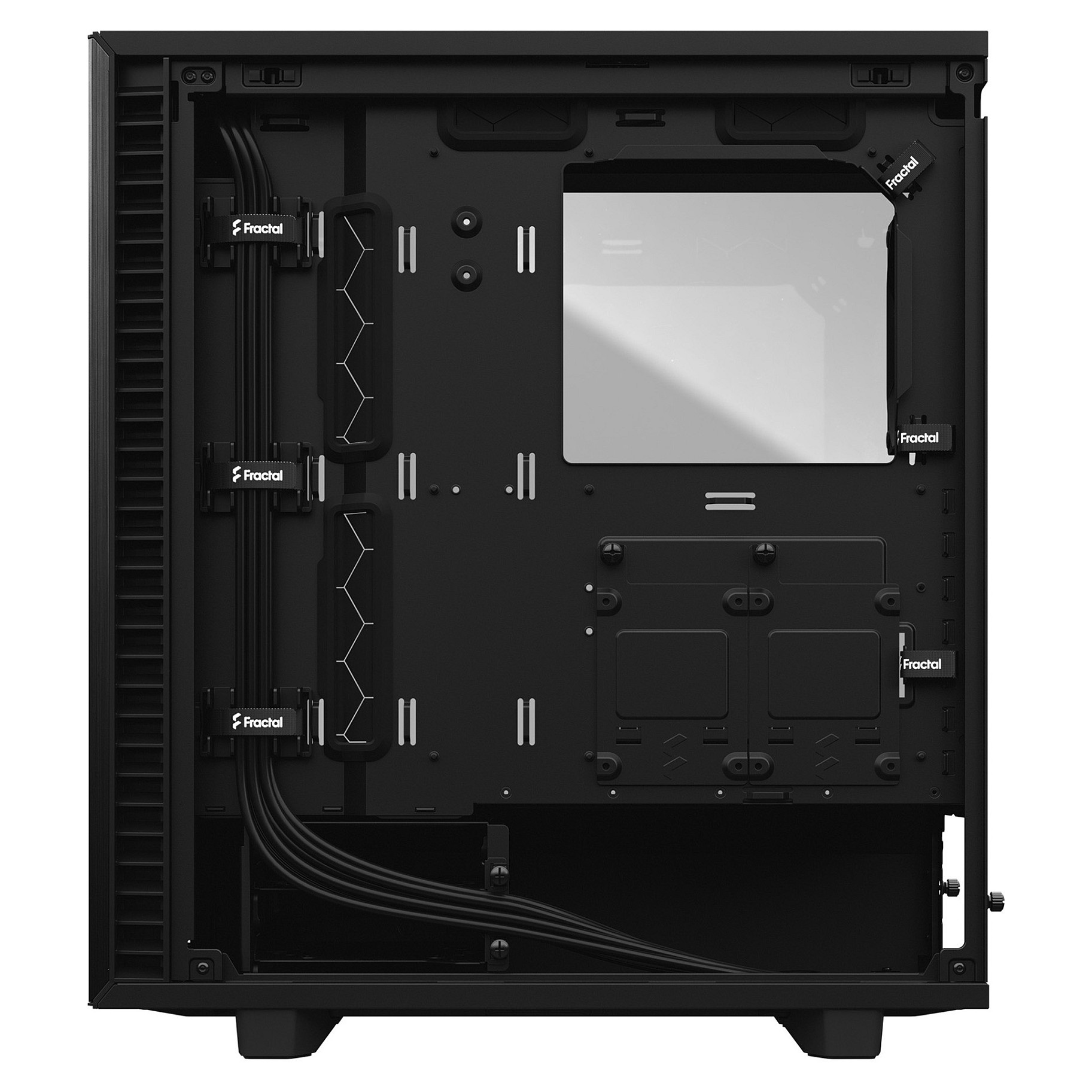

You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.

More in store

A pair of SSDs are easily mounted straight on the PSU shroud.

Front. top and base

Easy-to-clean high airflow nylon filters.

Open access

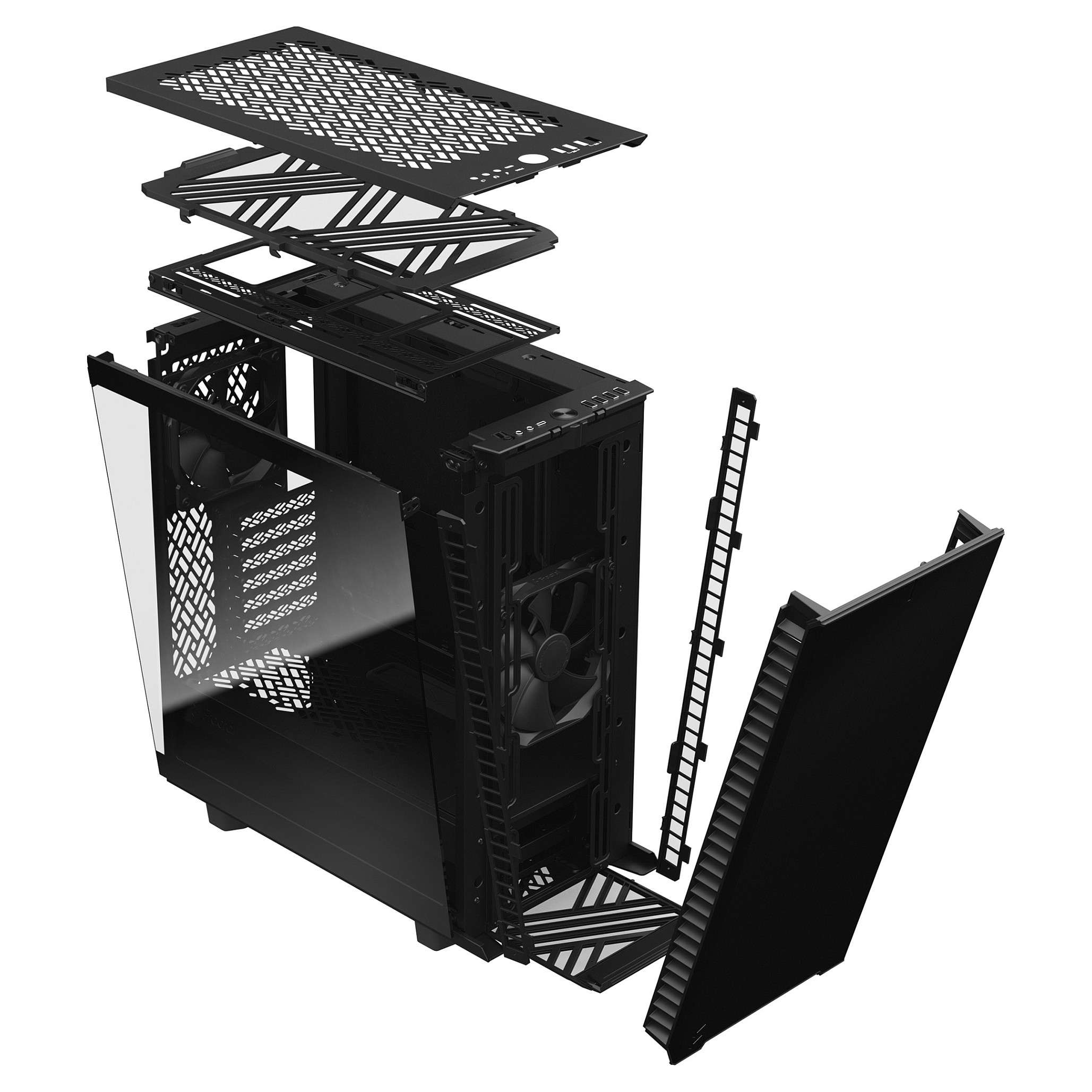

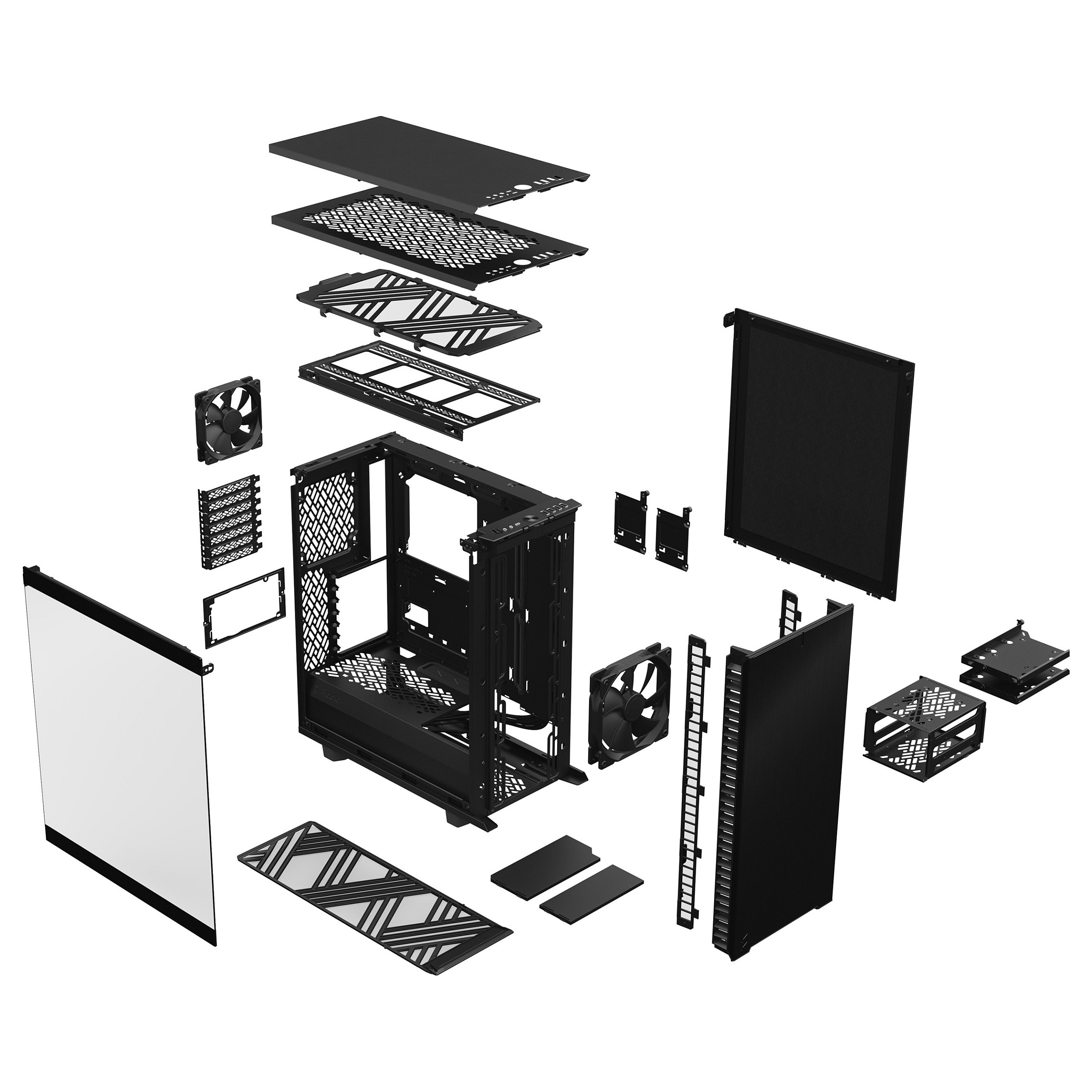

Remove the entire top to build and route with zero hindrance

Design
Material: Aluminium. Steel
Form factor: Midi Tower
Type: PC
Product colour: Black
Supported motherboard form factors: ATX. micro ATX. Micro-ITX
Number of 3.5" bays: 2
Number of 2.5" bays: 2
Number of internal 3.5" bays: 2
Number of expansion slots: 7
Suitable for: Home/Office
Feature: Anti-dust filter
Feature: Reset button
Feature: On/off button
Feature: LED indicators
Maximum CPU cooler height: 16.9 cm
Maximum graphics card length: 34.1 cm
Maximum PSU length: 20 cm
Power supply
Power supply location: Bottom
Number of power supply units: 1
Supported power supply form factors: ATX
Ports & interfaces
Feature: Audio input
Feature: Audio output
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Cooling
Front fans installed: 1x 140 mm
Number of front fans supported (max): 3
Front fans diameters supported: 120.140 mm
Rear fans installed: 1x 120 mm
Number of rear fans supported (max): 1
Rear fans diameters supported: 120 mm
Number of top fans supported (max): 2
Top fans diameters supported: 120.140 mm
Front radiator sizes supported: 280.360 mm
Rear radiator sizes supported: 120 mm
Top radiator sizes supported: 240 mm
Storage
Supported HDD sizes: 2.5.3.5"
Weight & dimensions
Width: 210 mm
Depth: 427 mm
Height: 474 mm
Weight: 8.61 kg
Packaging data
Package width: 310 mm
Package depth: 536 mm
Package height: 521 mm
Package weight: 10.9 kg
Logistics data
Harmonized System (HS) code: 84733080
Other features
Volume: 39.3 L
