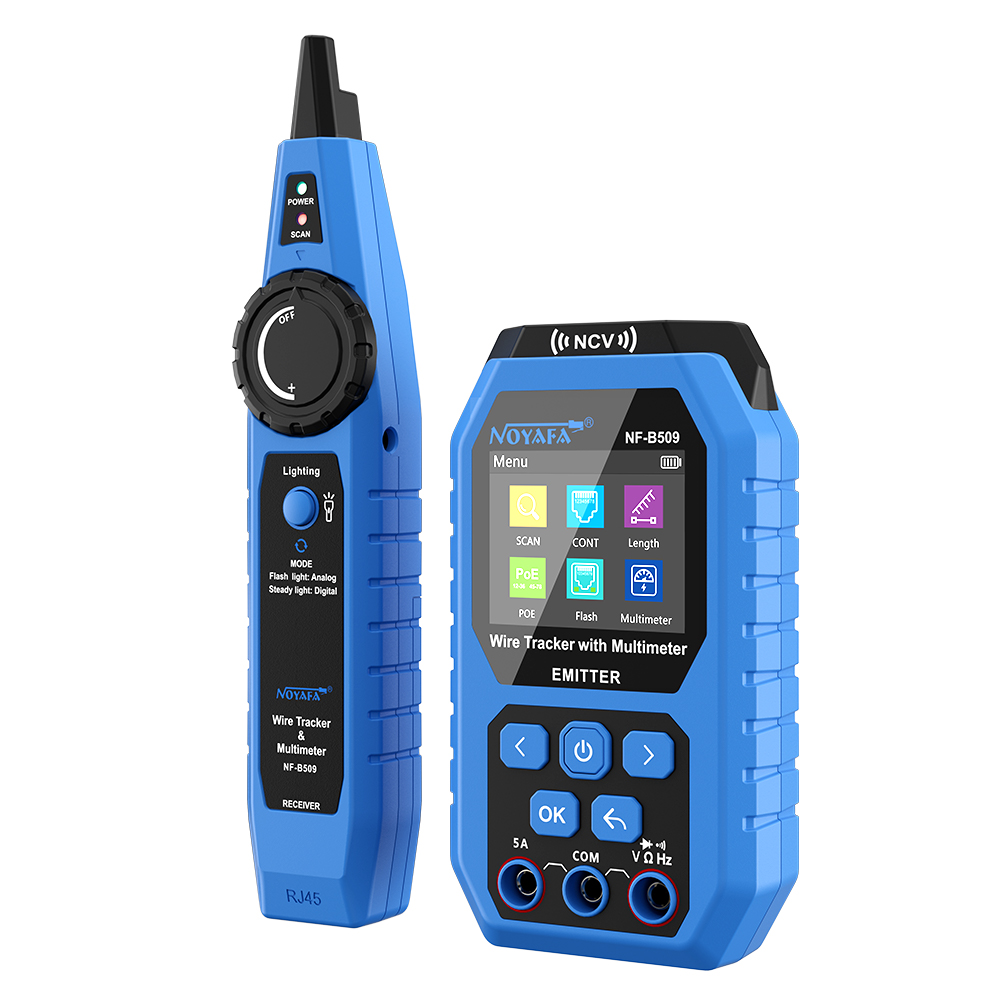

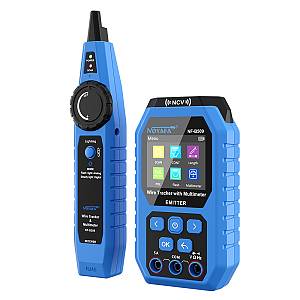

Noyafa Wire Tracker & Digital Multimeter with Cable Length Measurement, PoE Testing, NCV Detection, and LCD Display NF-B509
Product code: 20773320 // MPN: NF-B509
New entry
€80,64 (inc. VAT)
Available from 1 to 3 days
Similar products
Noyafa Network Multi Tester & Tracking Device with Cable Tracing & Fault Detection NF-826
Code: 20772320
€114,24
Available from 1 to 3 days- Toolbox for electrical & network engineers: Equip yourself with the versatile NF-B509 – one gadget to diagnose network and electrical components, from wires, cables, outlets, to ports, panels, and switches.

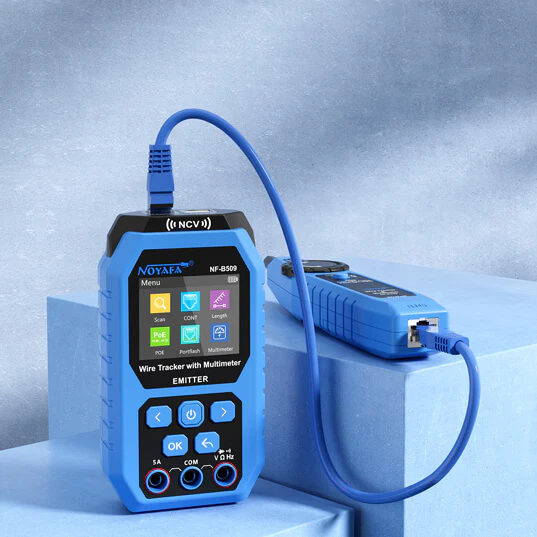

- Network cable tester: Swiftly run continuity checks for RJ45 UTP/STP network cables, identifying wiring issues within seconds.

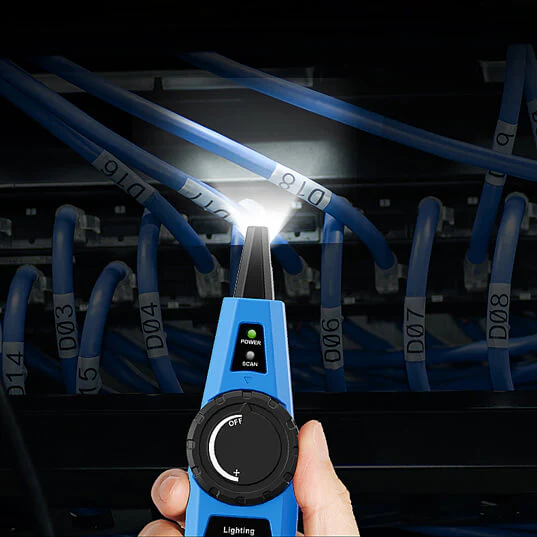

- Wire tracer: Effortlessly trace the location of a network cable using a probe and tone generator, making cable identification across different rooms a breeze.

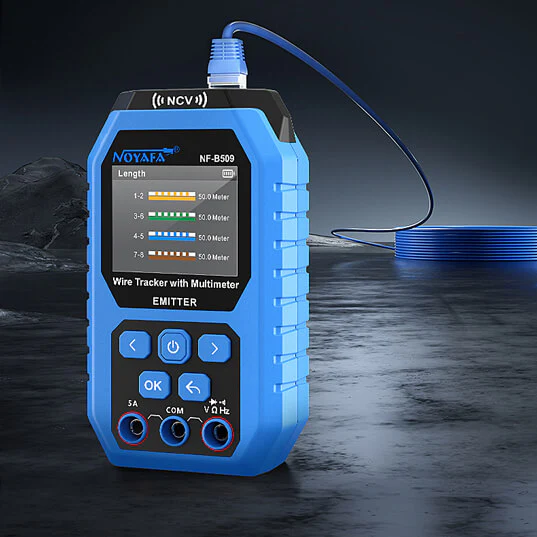

- Length meter: Measure RJ45 cables easily, eliminating manual measurements and saving valuable time.
- Ethernet tester: Connect and test ethernet status with detailed on-screen information, including voltage providers and standards.
- Router port locator: Locate a port connected with a cable in a router or other ethernet switch. Easily spot the target via a flashing light.
- Digital Multimeter: Connect the tester pins to unveil MF-B509's digital multimeter capabilities. Test the voltage and current (AC/DC) directly. Run electric diagnostics easily and fast.
- Main functions: Network cable tester, tracer, length meter; PoE test and port locator; digital multimeter and non-contact voltage detector
- Auto-off: Yes

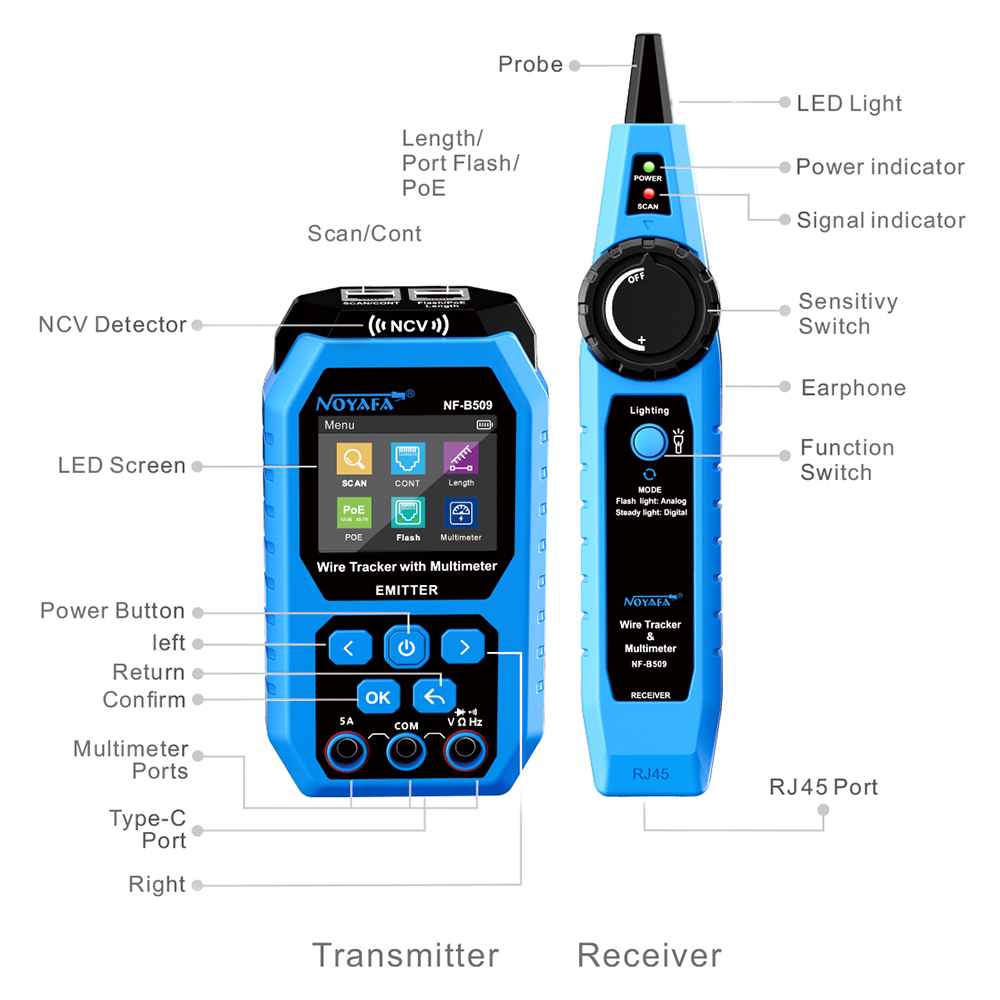

Transmitter:
- Continuity tester: 2000m or 6,561ft max test range
- Cable length meter: 5-200m (±3m) or 16-656ft(±9ft)
- Port locator: 10M, 100M, or 1000M
- PoE: 4 or 8 pins power tester; voltage test
- NCV: 0 to 4 levels
- Temperature Measure: Yes

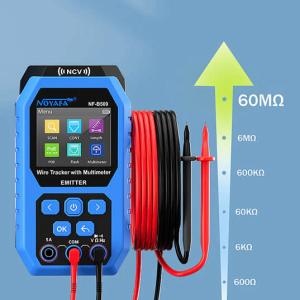

- Resistor Measure: 600Ω - 60MΩ (±1.0%+5)
- Voltage Measure: 600mV to 610V (DC: ±0.5%+3 ; AC: ±0.5%+3)
- Current Measure: 1mA - 3A DC ( ±0.8%+3)
- Power: 3.7V/1500mAh lithium battery

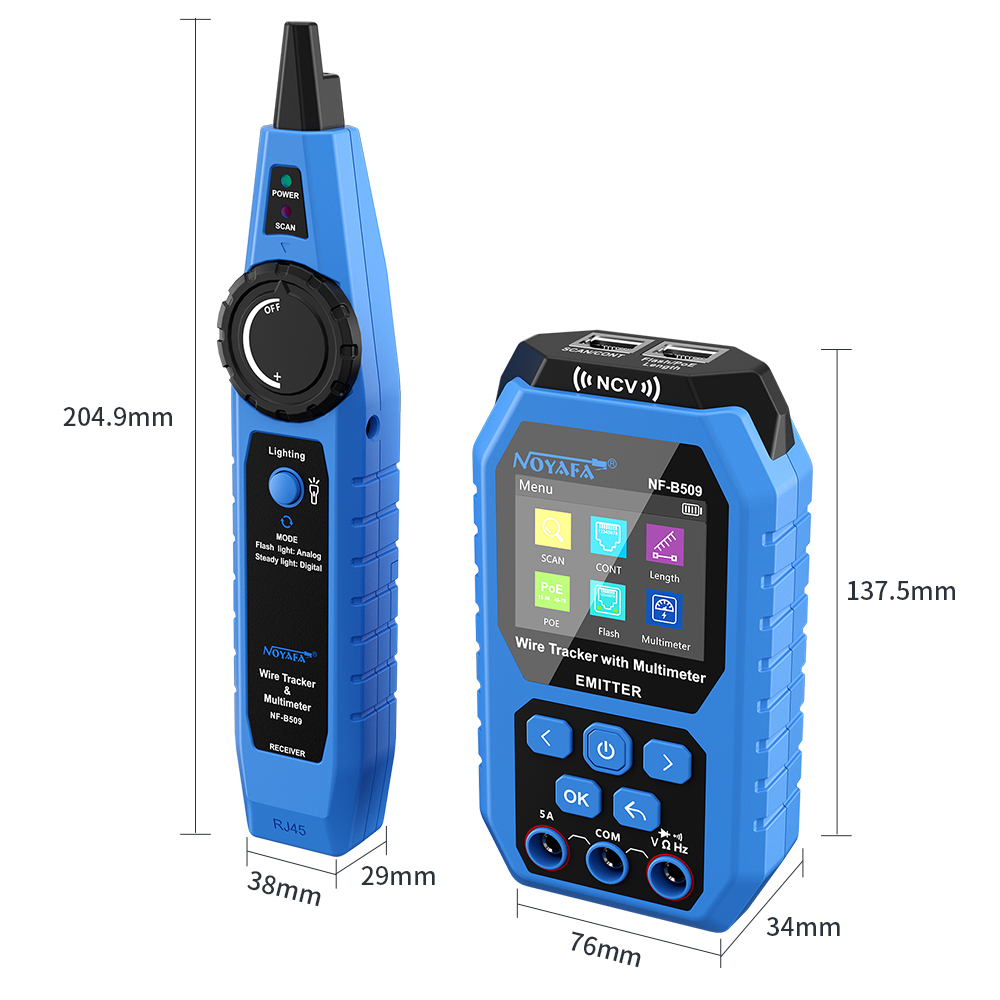

- Dimension: 137.5*76*34
Receiver:
- LED: Yes
- Earphone jack: Yes
- Max Working Current: 150mA
- Power: DC9V
- Dimension: 204.9*38*29
