Mercury CAT5e Cable CCA UTP 305m Grey 808.021UK
Product code: 20774320 // MPN: 808.021UK
New entry
€67,20 (inc. VAT)
Available from 1 to 3 days
Similar products
Important Note: CCA Cables are not recommended for POE installations

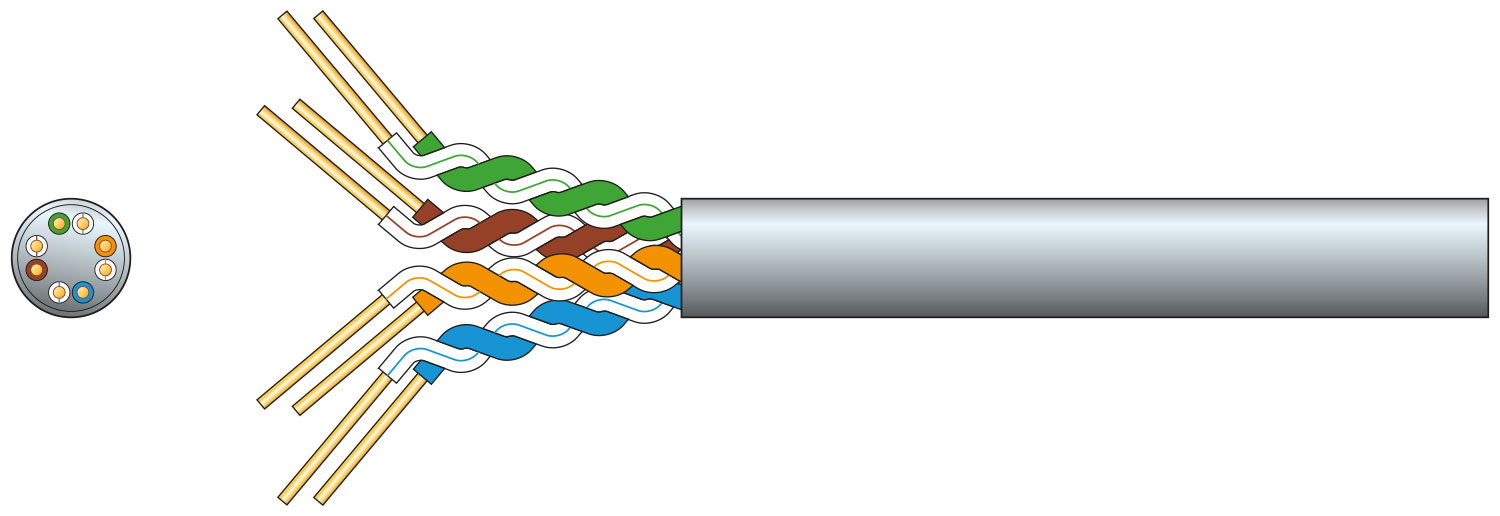

Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications.
- Solid copper clad aluminium conductor

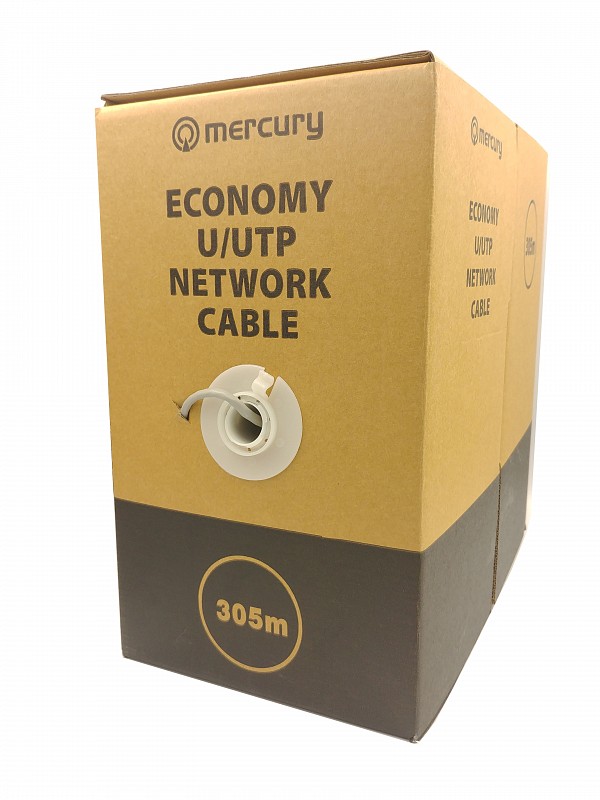

- Supplied in an easy-pull dispensing box
- Passes Cat5e fluke test 100m at 100MHz
- Conductor: Solid CCA
- Strands: 8 x 1/0.51mmØ ±2%
- CSA: 8 x 0.204mm²
- Cable diameter: 5mmØ
- Insulation: HDPE 0.19mm thickness
- Sheath: PVC 0.5mm thickness
- Impedance: 100 Ohms (±15)
- DC resistance @ 20°C:
- Return loss: >20dB @ 100m
- NEXT: >40dB @ 100m
- PSNEXT: >38dB @ 100m
- Cable colour: Grey
- Length: 305m
- Weight: 6kg
| All in one: | |
| Gaming: | |
| Cat Type: | CAT5e |
| Cable size: | 305m |
ADD YOUR REVIEW
Ask a question about the product
