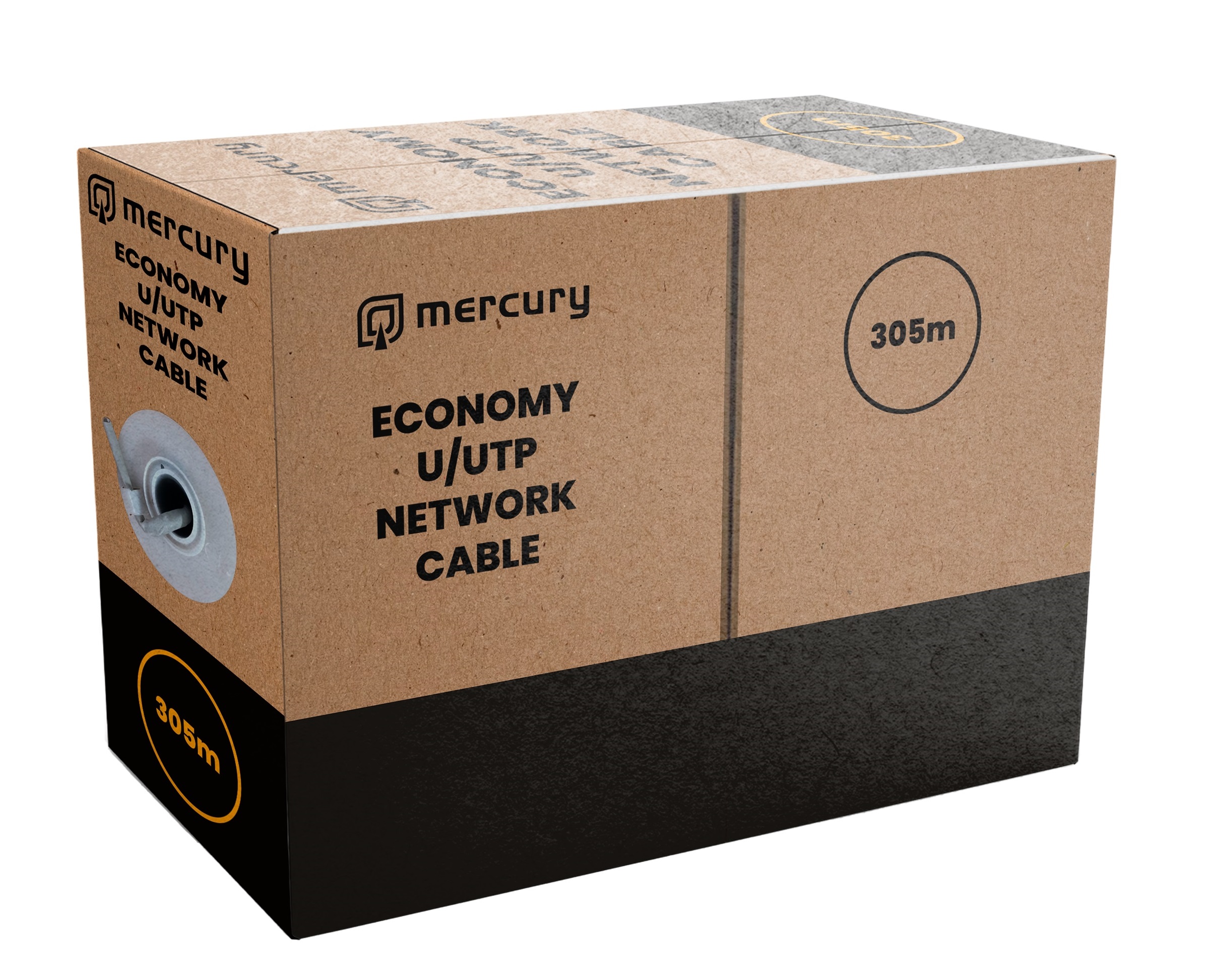

Mercury Economy CAT6 CCA Outdoor Cable 305m 808.027UK
Product code: 20775220 // MPN: 808.027UK
New entry
€115,20 (inc. VAT)
Available from 1 to 3 days
Similar products
Cat6 solid conductor twisted pair data cable with PE sheath supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.
- Solid copper clad aluminium conductor
- PE sheath with UV resistant properties ideal for outdoor installations
- Supplied in an easy-pull dispensing box
- Passes Cat6 fluke test 100m at 250MHz
- Complies to TIA/EIA-568 Cat6 standard
- Conductor Solid CCA
- Strands 8 x 1/0.57mmØ ±2%
- CSA 8 x 0.26mm²
- Cable : diameter 6mmØ
- Insulation HDPE 0.23mm thickness
- Sheath PE 0.5mm thickness
- Impedance 100 Ohms (±15)
- DC resistance @ 20°C<35 Ohms/100m
- Return loss >20dB @ 100m (from 1Mhz to 100Mhz)
- NEXT >40dB @ 100m
- PSNEXT >38dB @ 100m
- Cable colour Black
- Length 305m
- Weight 7kg
| All in one: | |
| Gaming: | |
| Cat Type: | CAT6 |
| Cable size: | 305m |
