Opton Mantar Fiber Wall Mounted Distribution Frame 12 x SC Duplex PSN-25/25/10

Κωδικός: 20781120 // Κωδικός προμηθευτή: MANTAR-PSN25/25/10PK

Νέο προϊόν

€55,68 (συμπ. ΦΠΑ)

Διαθέσιμο από 1-3 εργάσιμες ημέρες

Προσθήκη στη wishlist

Δείτε επίσης

DIGITUS Außenanschluss Patchkabel CAT6A Verbinder RJ45->RJ45

Κωδικός: 19392123

€10,95

4-10 εργάσιμες ημέρες

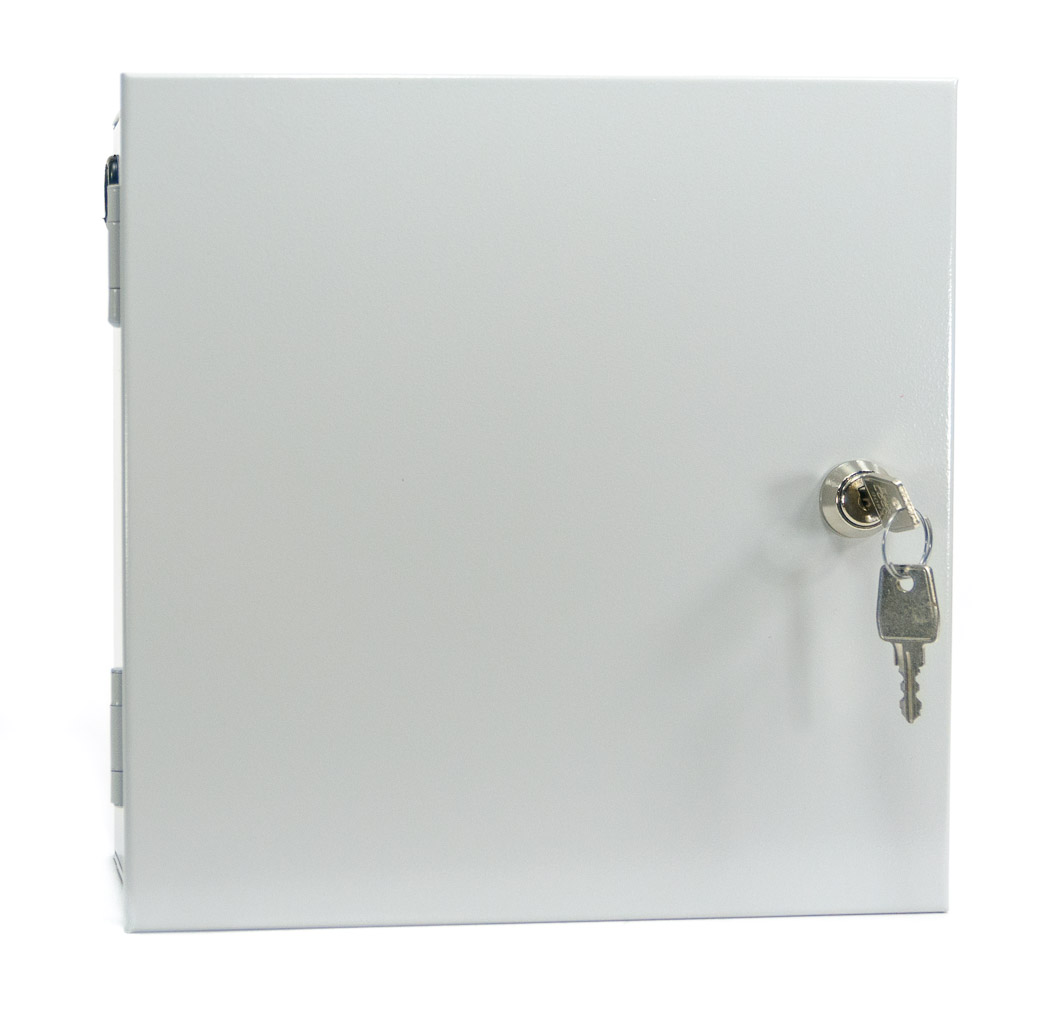

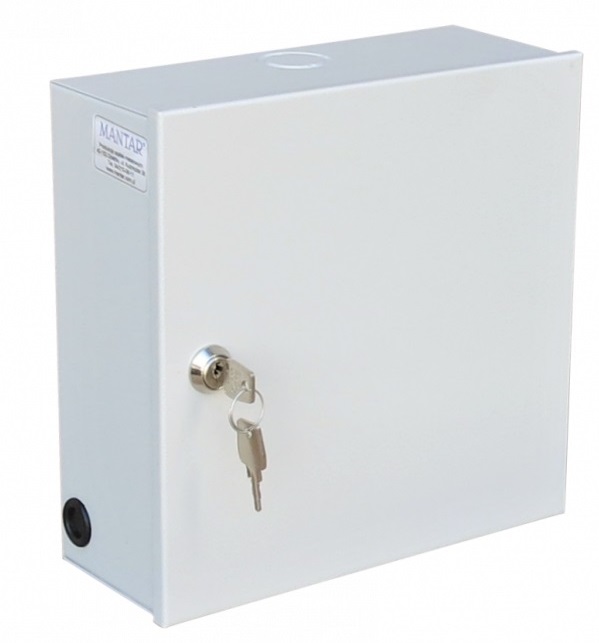

Wall-mounted switchboard

The offered product is a fiber optic switchboard adapted for wall mounting. It is made of 1 mm thick steel sheet and painted in light gray RAL7035. External dimensions are 255 x 255 x 101 mm.

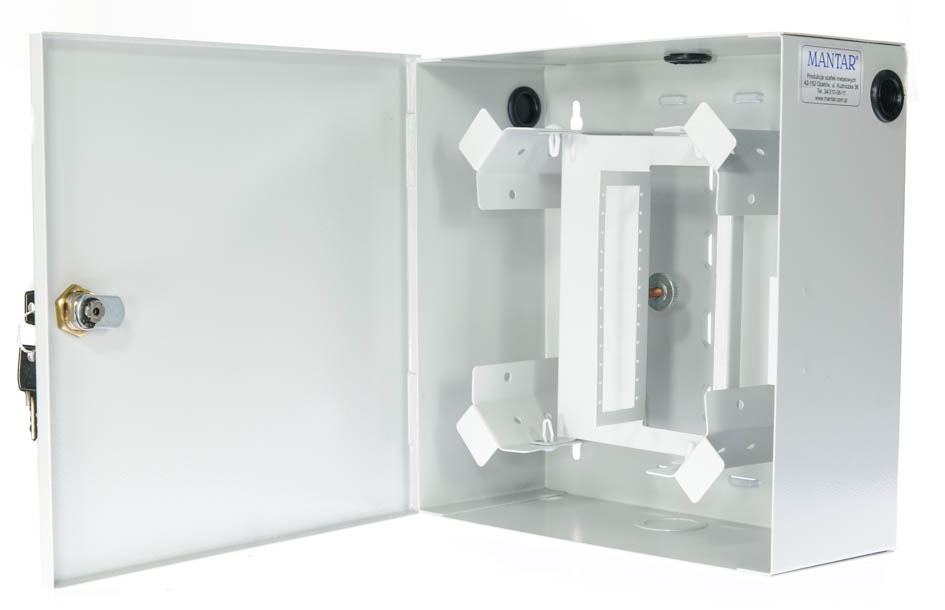

Frame for 12 SC Duplex adapters

Inside the switchboard there is a frame with 12 holes for mounting SC Duplex or LC Quad adapters. The frame is attached with a centrally placed screw, under it you can mount a splice tray. The switchboard has embossments that make it easier to manage the cables. Additionally, there are a total of 4 handles on the sides for winding the spare cable.

Universal switchboard

PSN-25/25/10 PK is a universal solution designed for FTTH networks in multi-family buildings. It has 1 opening on each wall, the one in the upper part has a diameter of 19 mm, the others 29/38 mm. The switchboard will work well both in standard PON networks and in combination with an easy access cable.

Frame: 12 holes for SC Duplex / LC Quad adapters
Height: 255 mm
Width: 255 mm
Depth: 101 mm
Installation method: On the wall
Libra: 3 kg
Sheet thickness: 1 mm
Color: RAL7035 light gray
