SWITCHES

Gigabit Ports for Faster Speed
Increase the speed of your network with the 5-port Gigabit switch. Non-blocking. 5 10/100/1000Mbps ports enables instant transferring of large. bandwidth intensive files without interference.

High Performance
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion. making the switch work reliably.

Support Loop Alarm
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion. making the switch work reliably.

Surveillance
Works with IP Cameras for home and office. small business

VoIP Conference Call
Works with VoIP phones for business conference

Wi-Fi Coverage
Works with WiFi APs for office and business

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T. 100BASE-TX. 1000BASE-TX
Cable types supported: Cat3. Cat4. Cat5. Cat5e. Cat6. Cat6+. Cat6a. Cat6e. Cat7. Cat7e. Cat8. Cat8.1
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10.100.1000 Mbit/s
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported
Feature: VLAN support
Data transmission
Switching capacity: 10 Gbit/s
Throughput: 7.44 Mpps
MAC address table: 1000 entries
Feature: Store-and-forward
Feature: Jumbo frames support
Jumbo frames: 2000
Packet buffer memory: 1 MB
Design
Product colour: Black
LED indicators: Loop. Link. Power
Performance
Mean time between failures (MTBF): 100000 h
Power
Power source: AC/DC
Feature: Power supply included
AC input voltage: 100 - 240 V
DC input voltage: 5 V
Operational conditions
Operating temperature (T-T): -10 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Operating altitude: 0 - 3048 m
Weight & dimensions
Width: 100 mm
Depth: 70 mm
Height: 26 mm
Weight: 200 g

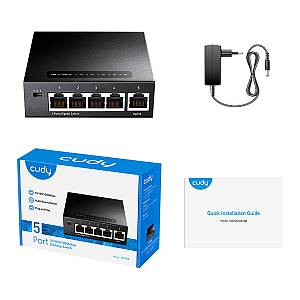

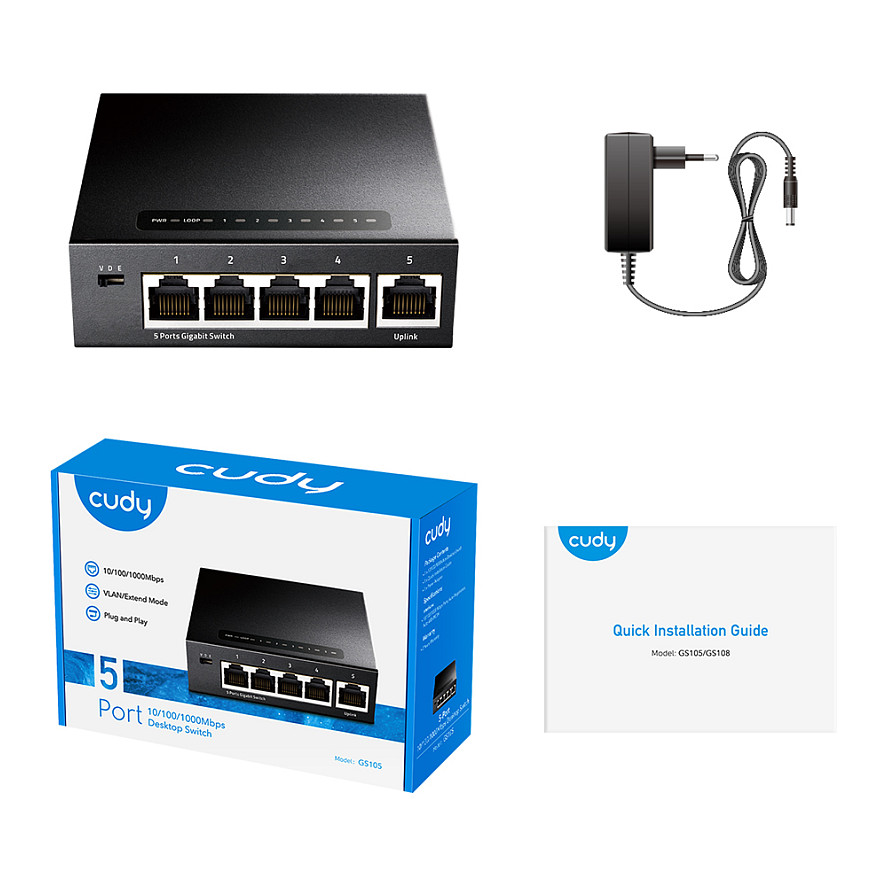

Packaging content
Cables included: DC
Feature: Manual
Packaging data
Package type: Box
Package width: 175 mm
Package depth: 120 mm
Package height: 63 mm
Package weight: 400 g
Logistics data
Master (outer) case width: 505 mm
Master (outer) case length: 320 mm
Master (outer) case height: 400 mm
Master (outer) case gross weight: 17 kg
Products per master (outer) case: 40 pc(s)
