Mercury CAT6A FTP Outdoor Network Cable OFC 305m Grey 808.034UK
Mercury CAT6A FTP Outdoor Network Cable OFC 305m Grey 808.034UK
Mercury CAT6A FTP Outdoor Network Cable OFC 305m Grey 808.034UK
Mercury CAT6A FTP Outdoor Network Cable OFC 305m Grey 808.034UK

Mercury CAT6A FTP Outdoor Network Cable OFC 305m Grey 808.034UK

Product code: 22869320 // MPN: 808.034UK
New entry

€312,00 (inc. VAT)

Available from 1 to 3 days
Add to wishlist
Similar products
EFB CAT6a GRAU 10m Patchkabel S/FTP PIMF
EFB CAT6a GRAU 10m Patchkabel S/FTP PIMF

Code: 19359523

€14,65

8-12 business days

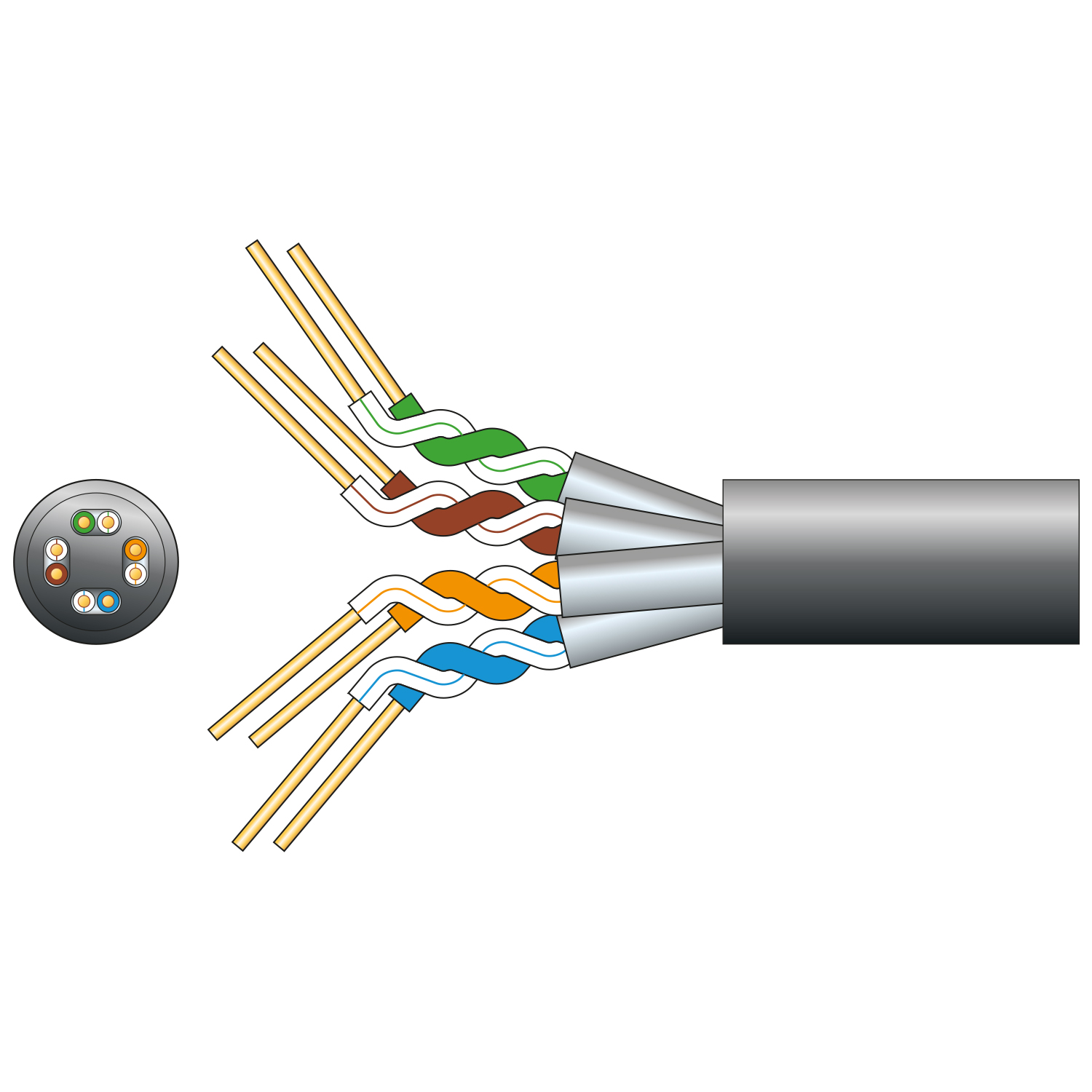

Cat6a oxygen free copper twisted pair data cable with LDPE sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.

  • AWG 23 oxygen free solid copper conductor
  • LDPE sheath with UV resistant properties ideal for outdoor installations
  • Supplied on a sturdy wooden drum reel
  • Passes Cat6a fluke test 100m at 500MHz
  • Complies to TIA/EIA-568 Cat6a standard
  • Conductor: Solid OFC
  • Strands: 8 x 1/0.560mmØ ±2%
  • Cable : diameter7.3±0.5mm
  • Screen: Aluminium/Mylar foil
  • Insulation: PE 1.330±0.05mmØ
  • Sheath: LDPE 0.55±0.05mm thickness
  • Capacitance: <330pf/100m
  • DC resistance @ 20°C: <9.38 Ohms/100m
  • Impedance (100 to 250MHz): 100±15 Ohms
  • Impedance (250 to 500MHz): 100±22 Ohms
  • Return loss: >26.62dB
  • Attenuation: <2.03dB
  • NEXT: >87.2dB
  • PSNEXT: >85.15dB
  • ELFEXT: >88.77dB
  • PSELFEXT: >86.74dB
  • Phase delay:<450.79ns
  • Colour: Black
  • Length: 305m
  • Weight: 17.4kg


All in one:
Gaming:
Cat Type: CAT6a
Cable size: 305m
