NETWORK PCI CARDS

Bluetooth 5.2 Technology
Built in with the latest bluetooth 5.2 technology. it can achieve 2× faster speed and 4× broader coverage than Bluetooth 4.2. Connect as many devices as you want. including game controllers. headphones. and keyboards. to enjoy a smoother experience than ever before.

Incredibly Smooth Experience
Lower latency is essential to gaming success. Revolutionary OFDMA reduces lag by up to 75%. Enjoy ultra-responsive real-time gaming or immersive VR experiences.

AX210 Module Inside
Combined with AX210 WiFi 6/6E card. this WiFi 6/6E PCIe card brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6/6E router. 2.4GHz provides 574Mbps maximum speed and extremely long range. 5GHz/6GHz reaches 2402Mbps maximum speed. ideal for gaming and 4K streaming. Full compatibility for 802.11ax/ac/a/b/g/n routers.

WPA3 Advanced Security
WPA3 provides more secure and individualized encryption in personal password safety. protecting your network from wireless hacking. Always keep your network safe while gaming online.

Windows 10/11 64-bit Compatible
Compatible with Windows 10/11 (64bit) only. Driver CD comes with the package. while if a CD ROM is not convenient for you. we also offer a download address which printed on the manual. you can get the driver from the link.

Ports & interfaces
Connectivity technology: Wireless
Host interface: PCI Express
Interface: WLAN / Bluetooth
PCI Card form factor: Full-height (low-profile)
Network
Maximum data transfer rate: 2400 Mbit/s
Networking standards: IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Wi-Fi 6E (802.11ax)
WLAN data transfer rates supported: 574.2402 Mbit/s
Spread spectrum method: OFDMA
Security algorithms: WPA3
Feature: Bluetooth
Bluetooth version: 5.2
LAN controller: Intel AX210
Design
Component for: PC
Feature: Internal
Feature: Antenna
Antenna design: External
Antenna direction type: Omni-directional
Antenna gain level (max): 5 dBi
System requirements
Windows operating systems supported: Windows 10. Windows 11
Operational conditions
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
Width: 65 mm
Depth: 44.5 mm
Height: 1.6 mm

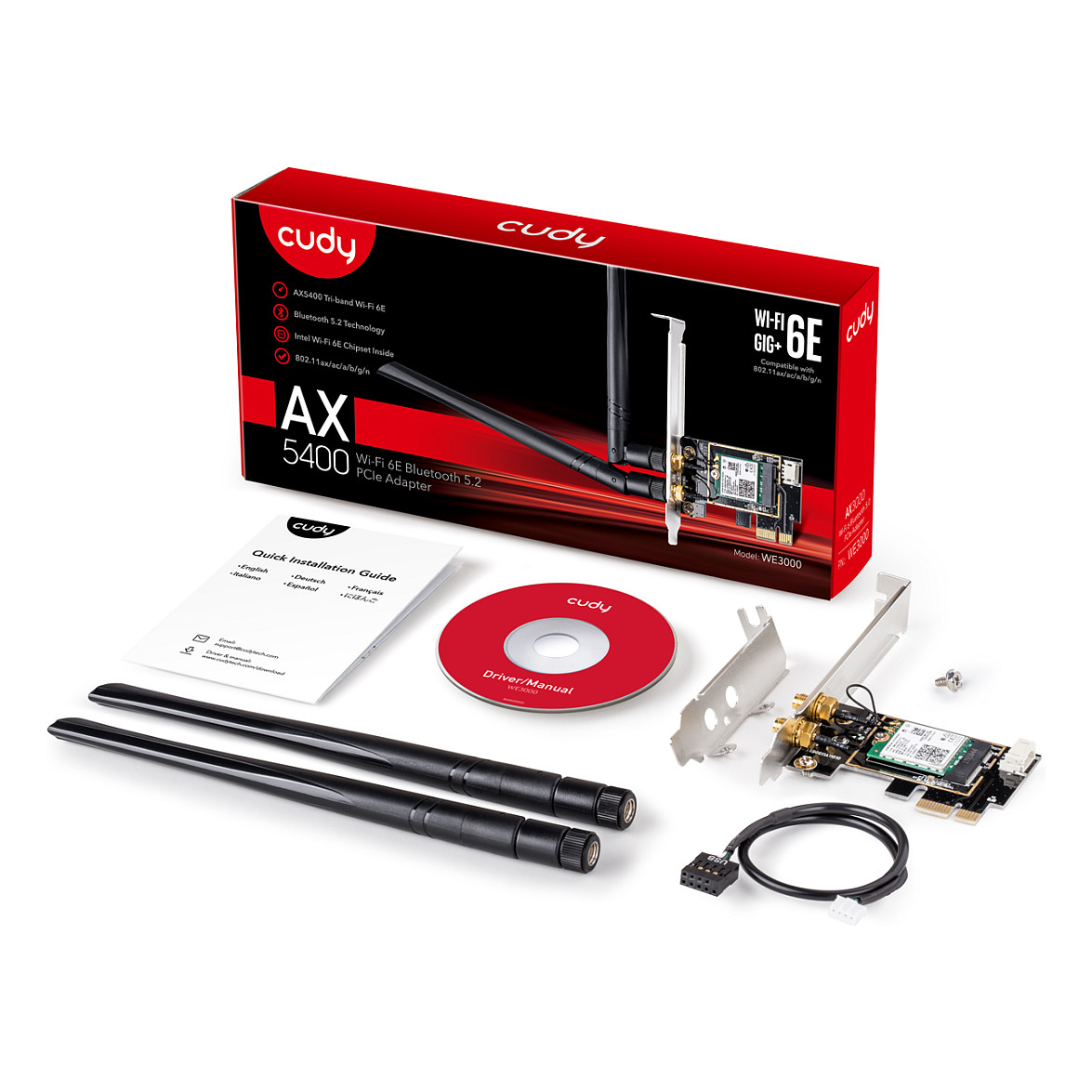

Packaging content
Feature: Mounting brackets included
Feature: Resource CD
Feature: Bluetooth header cable
Feature: Quick installation guide
Other features
Bracket height: Low-Profile (LP) / Full-Height (FH)
