ΤΡΟΦΟΔΟΤΙΚΑ (PSU)

No compromise silence and performance

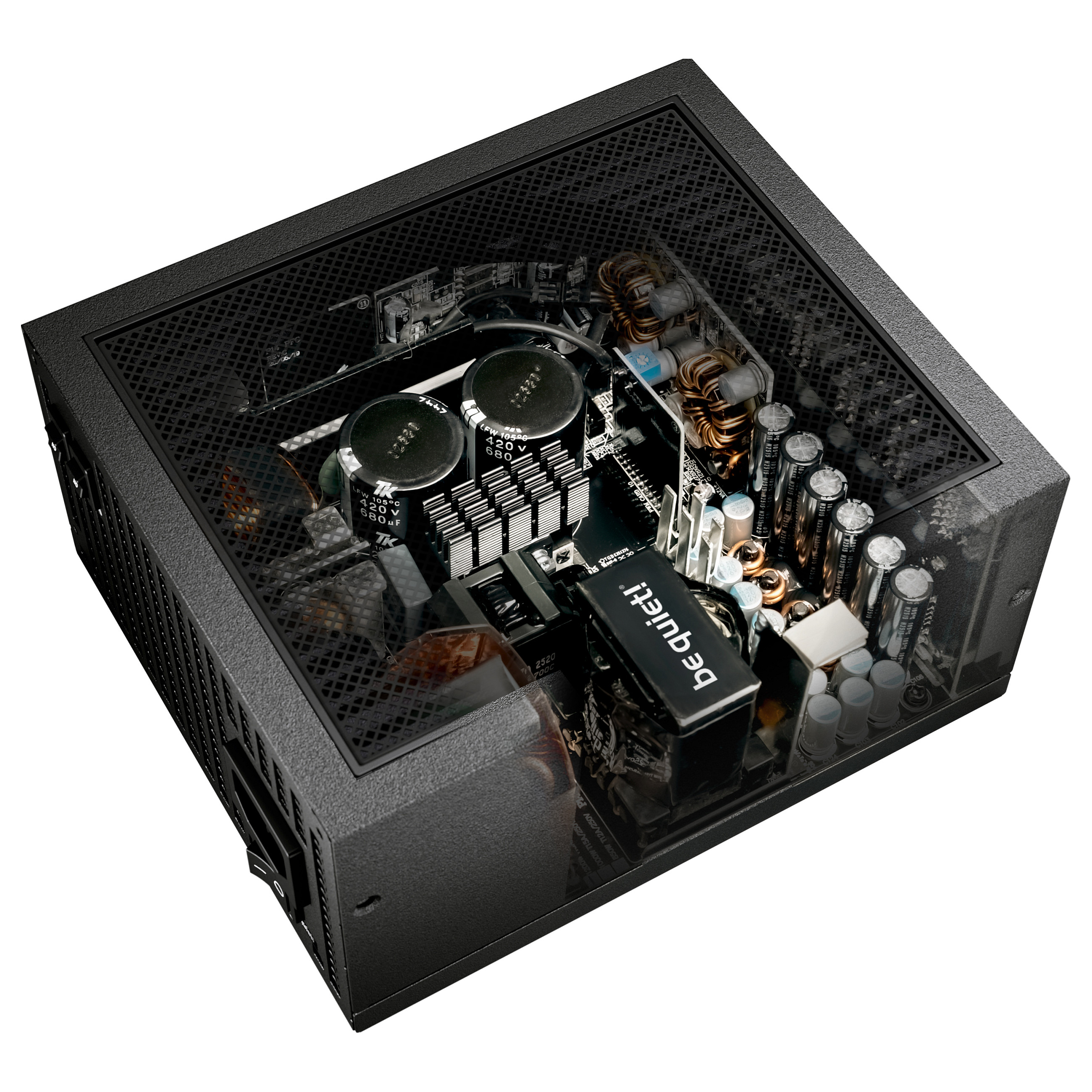

Dark Power 14 1200W claims nothing less than the top spot. This powerhouse features a high-performance heat sink design with an integrated fan and can be operated in either active or semi-passive mode.

Power
Total power: 1200 W
Peak power: 1300 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Power factor: 0.98
Number of +12V rail(s): 4
Combined power (+3.3V): 120 W
Combined power (+12V): 1200 W
Combined power (+5V): 120 W
Max output current (+3.3V): 25 A
Max output current (+12V1): 33 A
Max output current (+12V2): 33 A
Max output current (+12V3): 45 A
Max output current (+12V4): 45 A
Max output current (+5V): 24 A
Max output current (-12V): 0.5 A
Max output current (+5Vsb): 3 A
Hold time: 19.5 ms
Efficiency: 93.1%
Power protection features: Over current. Over voltage. Overheating. Overload. Short circuit. Surge & inrush protection (SIP). Under voltage

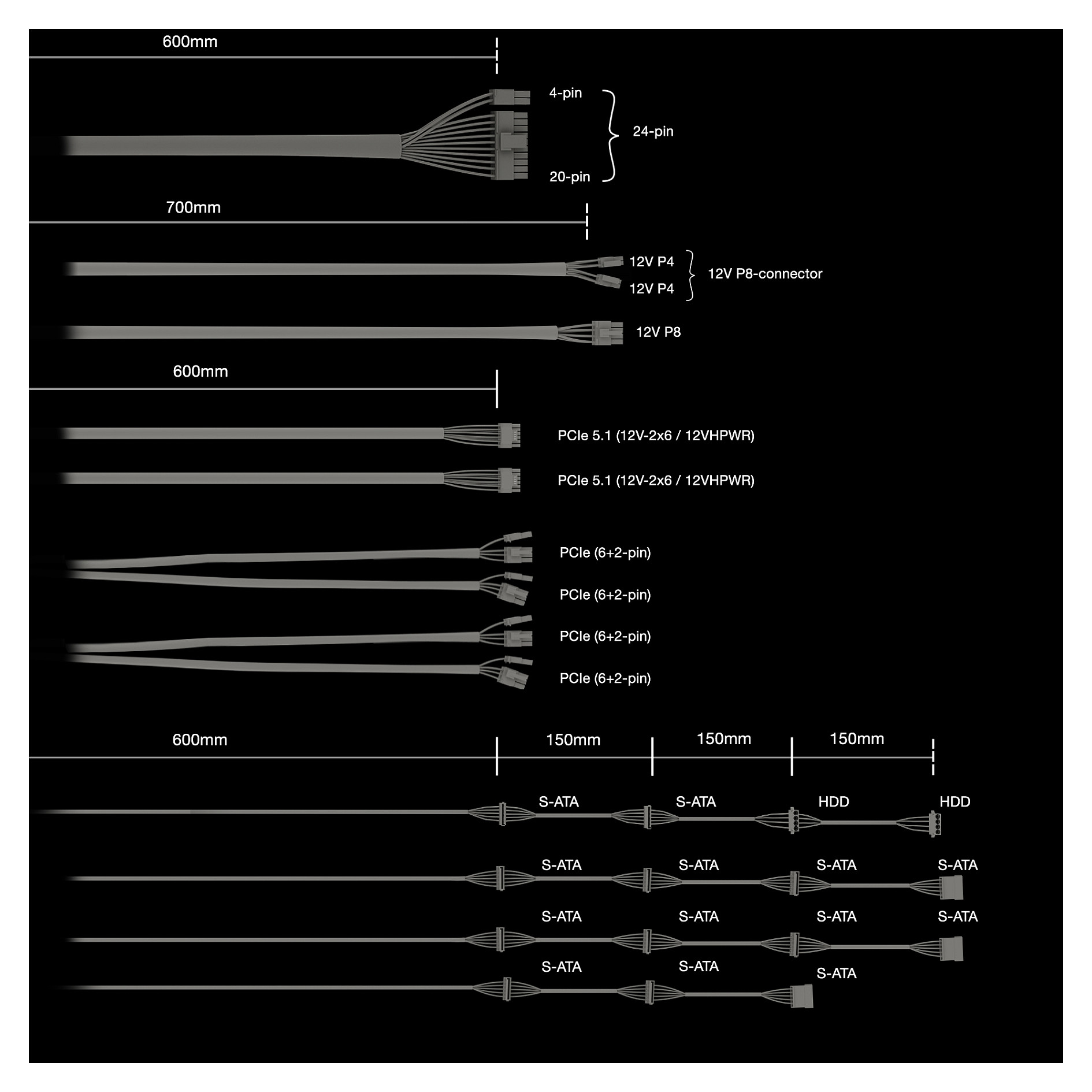

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 13
SATA power cable length: 600.750.900.1050 mm
Number of SATA power cables: 4
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 900.1050 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12-pin): 2
PCI Express power cable length: 60 cm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: ATX power connector (20+4 pin)
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Titanium
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Noise level: 21.1 dB
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 0 - 2100 RPM
Feature: On/off switch
Feature: On/off fan switch
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Certificates
Compliance certificates: CB. Federal Communications Commission (FCC). RoHS. TÜV mark. UKCA. WEEE. cTUVus
Weight & dimensions
Width: 150 mm
Depth: 175 mm
Height: 86 mm
Weight: 2.3 kg
Packaging data
Feature: Manual
Manual languages: Simplified Chinese. German. English. Spanish. French. Italian. Japanese. Polish. Russian. Thai. Ukrainian
Package width: 230 mm
Package depth: 126 mm
Package height: 355 mm
Package weight: 3.7 kg
Technical details
Sustainability certificates: ENERGY STAR. ErP. Triman
Logistics data
Shipping (inner) case length: 52.8 cm
Shipping (inner) case width: 36.8 cm
Shipping (inner) case height: 26 cm
Shipping (inner) case net weight: 20.1 kg
Products per shipping (inner) case: 4 pc(s)
Other features

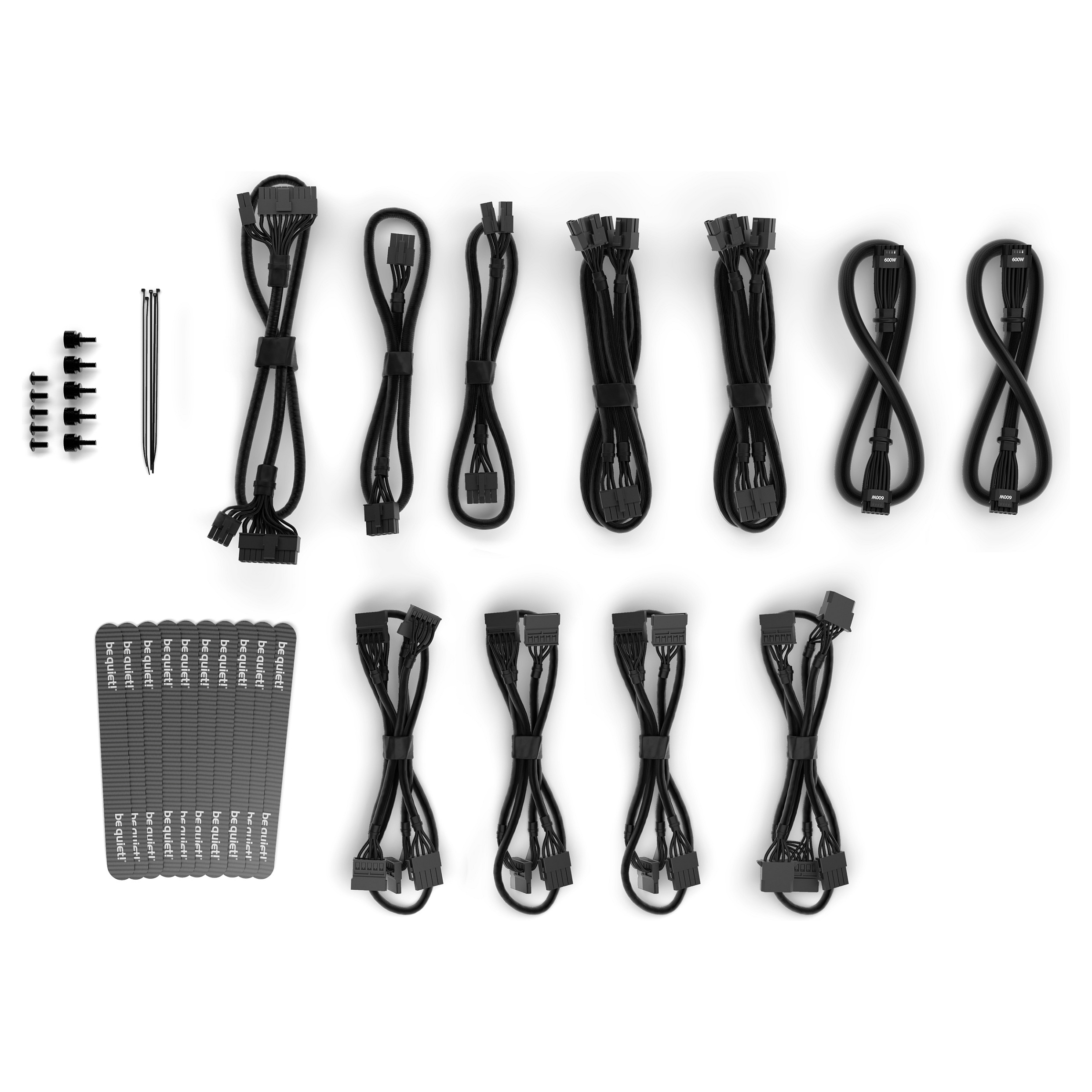

Feature: Screws included
Feature: Cable ties included
