ACCESS POINTS

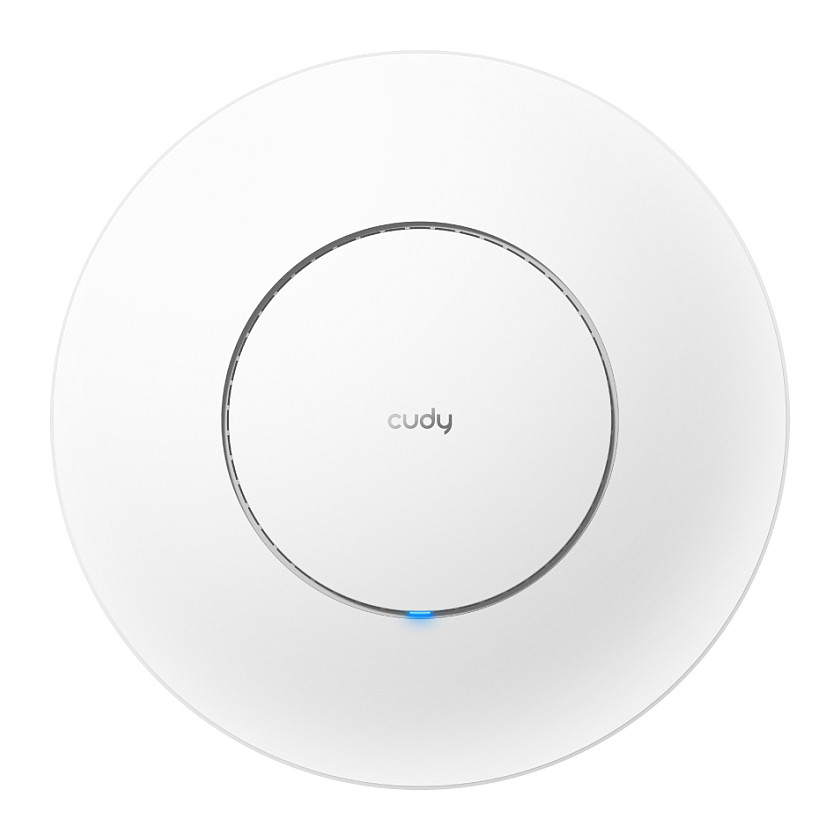

A wall/ceiling-mounted WiFi 7 AP designed for malls. offices. campuses. and other high-density scenarios. featuring a 2.5G PoE IN port and a PoE Out port.



Features
Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2882 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 2882 Mbit/s
Ethernet LAN data rates: 10.100.1000.2500 Mbit/s
Networking standards: IEEE 802.3af. IEEE 802.3at
Feature: MIMO
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack
Power
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Output voltage: 48 V
Power consumption (max): 10 W
Design
Placement: Ceiling. Wall
Product colour: White
Feature: Reset button
LED indicators: System
Antenna
Antenna type: Internal
Antennas quantity: 4
Antenna gain level (max): 5.5 dBi
Performance
Feature: Built-in processor
Processor frequency: 2000 MHz
Flash memory: 128 MB
Internal memory: 512 MB
Certificates
Compliance certificates: CE. Federal Communications Commission (FCC)
Weight & dimensions
Width: 231.9 mm
Height: 57.1 mm
Packaging content
Feature: AC adapter included
Cables included: LAN (RJ-45)
Feature: Mounting kit
Feature: Quick start guide
Operational conditions
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 95%
