KVM SWITCH

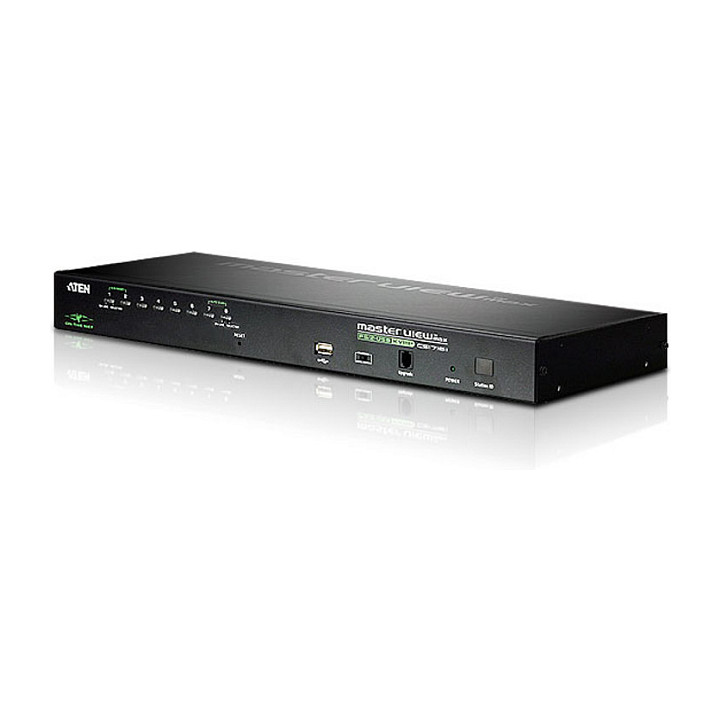

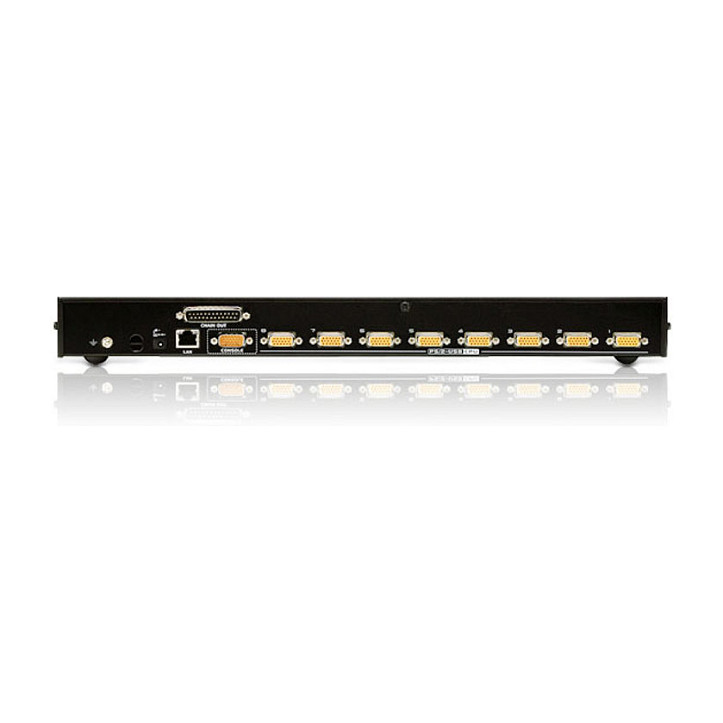

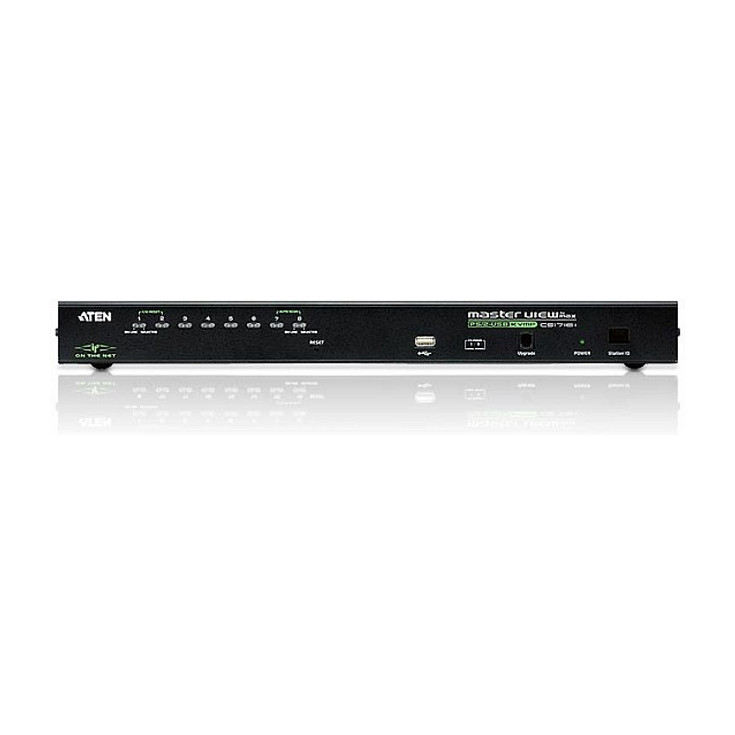

The CS1708i is an 8-port KVM switch in a 1U housing for convenient rack mounting. This device allows system administrators to access the attached servers both locally and over IP (LAN and/or WAN). CS1708i works platform independent and supports e.g. Windows, Linux, MAC, SUN

The special KVM cables and the Aten feature “Video DynaSync", makes sure that an optimal video resolution can be maintained. In addition it's easy to expand the KVM installation. By using Daisy Chain cables the number of accessible servers can be increased up to 128.
1x CS1708i KVM over IP Switch
1x 2L-5202P PS/2 KVM Cable
1x 2L-5202U USB KVM Cable
1x LIN5-27X6-U21G Console Cable
1x Firmware Upgrade Cable
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x 0AD8-1605-24M1 Power Adapter
1x User Instructions

Ports & interfaces
Number of computers controlled: 128
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
Console ports: VGA (D-Sub)
Console USB ports quantity: 1
USB connector type: USB Type-A
DC-in jack: Yes
Network
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Security algorithms: 128-bit RC4, RSA, SSL/TLS
Performance
HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
Scan interval: 1,255 s
DDC2B support: Yes
Hot-Plug support: Yes
Daisy chain: Yes
Number of users: 32 user(s)
Firmware upgradeable: Yes
Design
Rack mounting: Yes
Rack capacity: 1U
Product colour: Black
Housing material: Metal
LED indicators: Yes
Push button: Yes
Hot keys: Yes
Display
Built-in display: No
On Screen Display (OSD): Yes
Power
Power source: DC
Input voltage: 5.3 V
Power consumption (typical): 9.5 W
System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Sustainability
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
Width: 437.2 mm
Depth: 159.6 mm
Height: 44 mm
Weight: 3.42 kg
Packaging data
Package width: 116 mm
Package depth: 540 mm
Package height: 233 mm
Package weight: 3.83 kg
Packaging content
Cables included: DC, KVM
Quick installation guide: Yes
Manual: Yes
Software included: Yes
Rack mount kit: Yes
Logistics data
Master (outer) case net weight: 10.3 kg
Harmonized System (HS) code: 85176200
Master (outer) case width: 375 mm
Master (outer) case length: 565 mm
Master (outer) case height: 258 mm
Master (outer) case gross weight: 12.1 kg
Products per master (outer) case: 3 pc(s)
