Convert two 15-pin SATA power supply connectors to a 6-pin PCI Express video card power connector

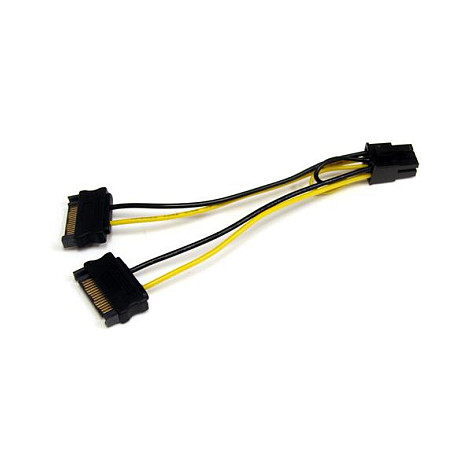

The SATPCIEXADAP SATA to PCI Express Video Card Power Adapter Cable features a 6-pin PCI Express (male) power connector as well as two 15-pin SATA (male) power connectors, providing a cost-effective way to connect a PCIe video card to Serial ATA power connectors provided by the computer power supply, and eliminating the need to upgrade the power supply for the sake of video card compatibility.

NOTE: When powering a graphics card, we recommend using two separate power supply cables, each with a SATA power connector.

The StarTech.com Advantage


Features
Cable length: 0.15 m

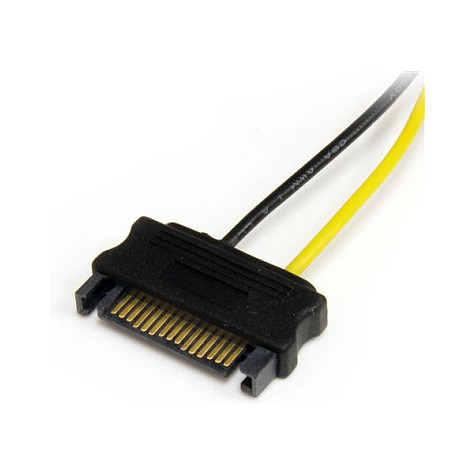

Connector 1: SATA 15-pin

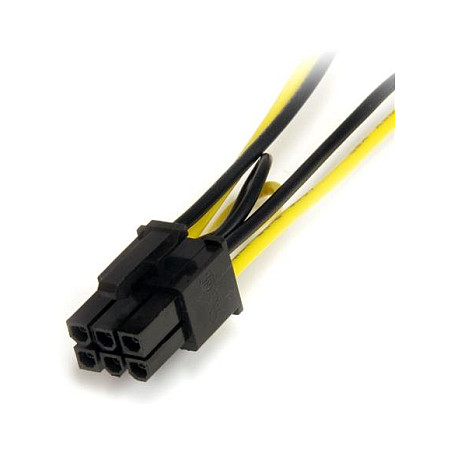

Connector 2: PCI-E (6-pin)
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Product colour: Black, Yellow
Certificates
Compliance certificates: RoHS
Certification: CE, REACH
Weight & dimensions
Width: 31.2 mm
Depth: 152.4 mm
Height: 20 mm
Weight: 15 g
Packaging data
Package width: 128 mm
Package height: 220 mm
Package weight: 23 g
Other features
Jacket material: Polyvinyl chloride (PVC)
Logistics data
Harmonized System (HS) code: 84733080
