AV CABLES

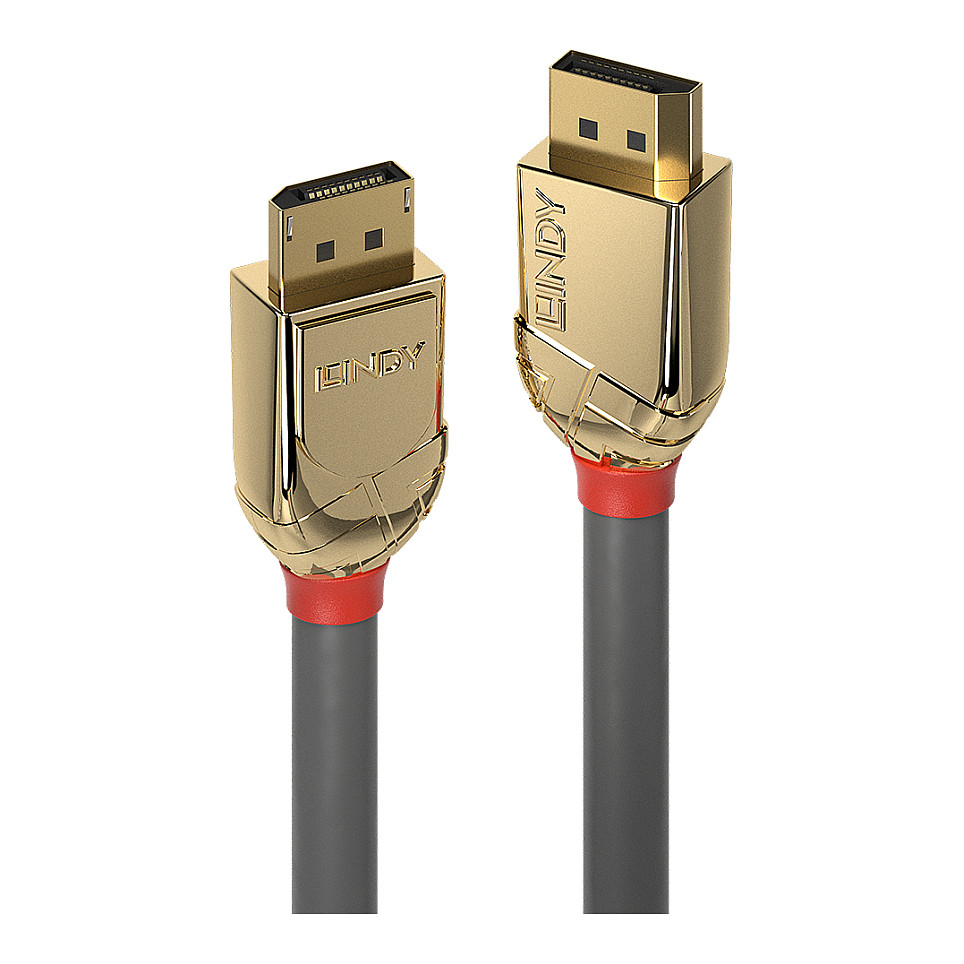

From the Lines cable connectivity concept developed by Lindy, Gold Line DisplayPort cables are the no compromise, high performance connection solution for use in the most demanding professional environments.

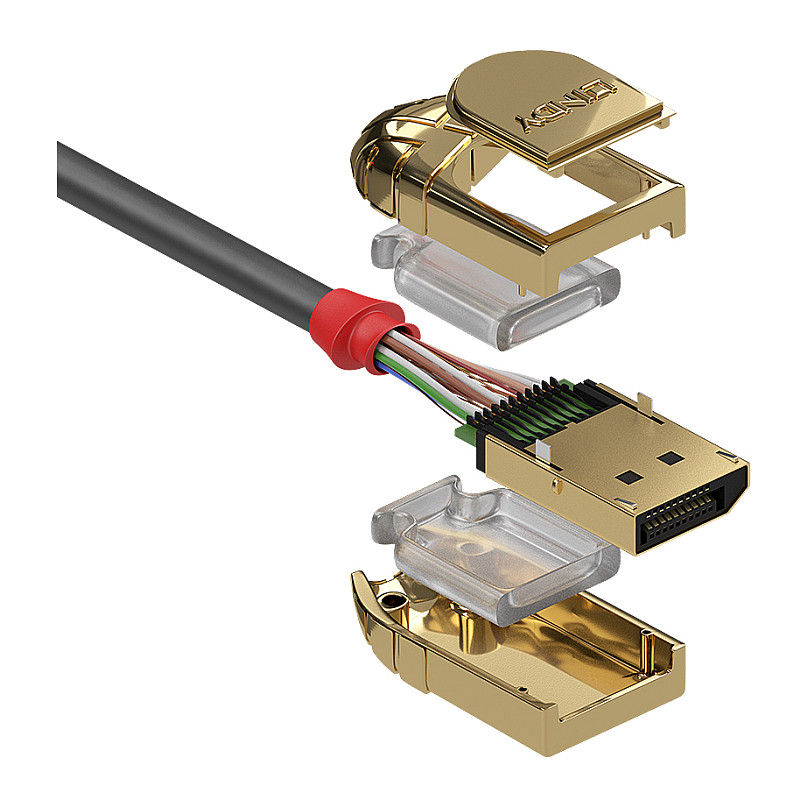

Gold Line DisplayPort cables feature triple shielded construction with 24AWG OFC conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@30Hz 4:4:4 8bit, including stereoscopic 3D and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

These superior quality cables utilise a unique low attenuation design that ensures consistent and reliable transmission even over very long distances.

Gold DisplayPort cables are available in lengths from 0.5m to 20m.

Features
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.2
Maximum resolution: 4096 x 2160 pixels
Supported graphics resolutions: 4096 x 2160
Maximum refresh rate: 30 Hz
3D: Yes
Cable length: 15 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Gold
Magnetically shielded: Yes
Jacket material: Polyvinyl chloride (PVC)
AWG wire size: 24
Data transfer rate: 10.8 Gbit/s
Operational conditions
Operating temperature (T-T): -20 - 80 °C
Storage temperature (T-T): -25 - 80 °C
Certificates
Compliance certificates: REACH, RoHS
Sustainability
Sustainability compliance: Yes
Weight & dimensions
Cable diameter: 9 mm
Packaging data
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
