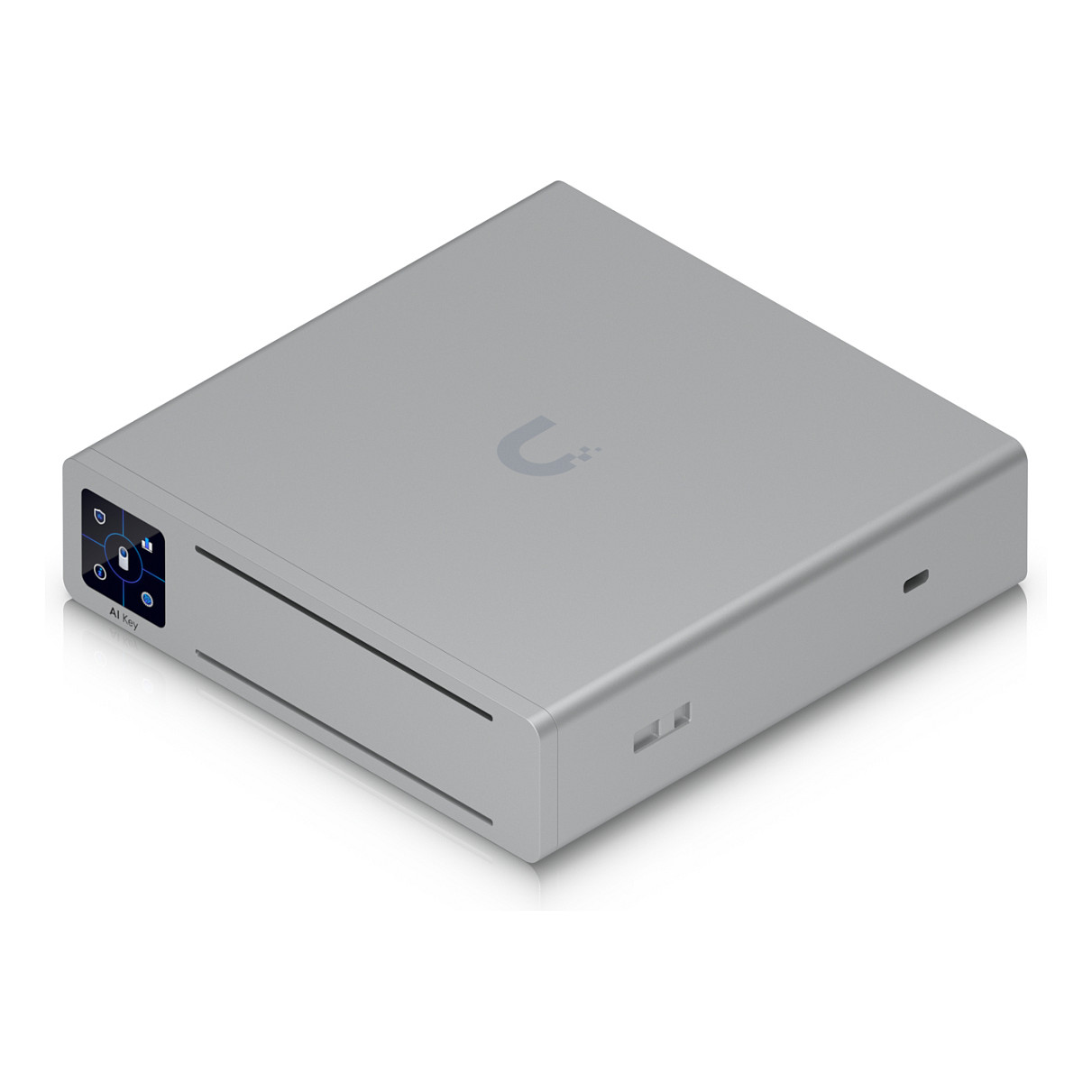

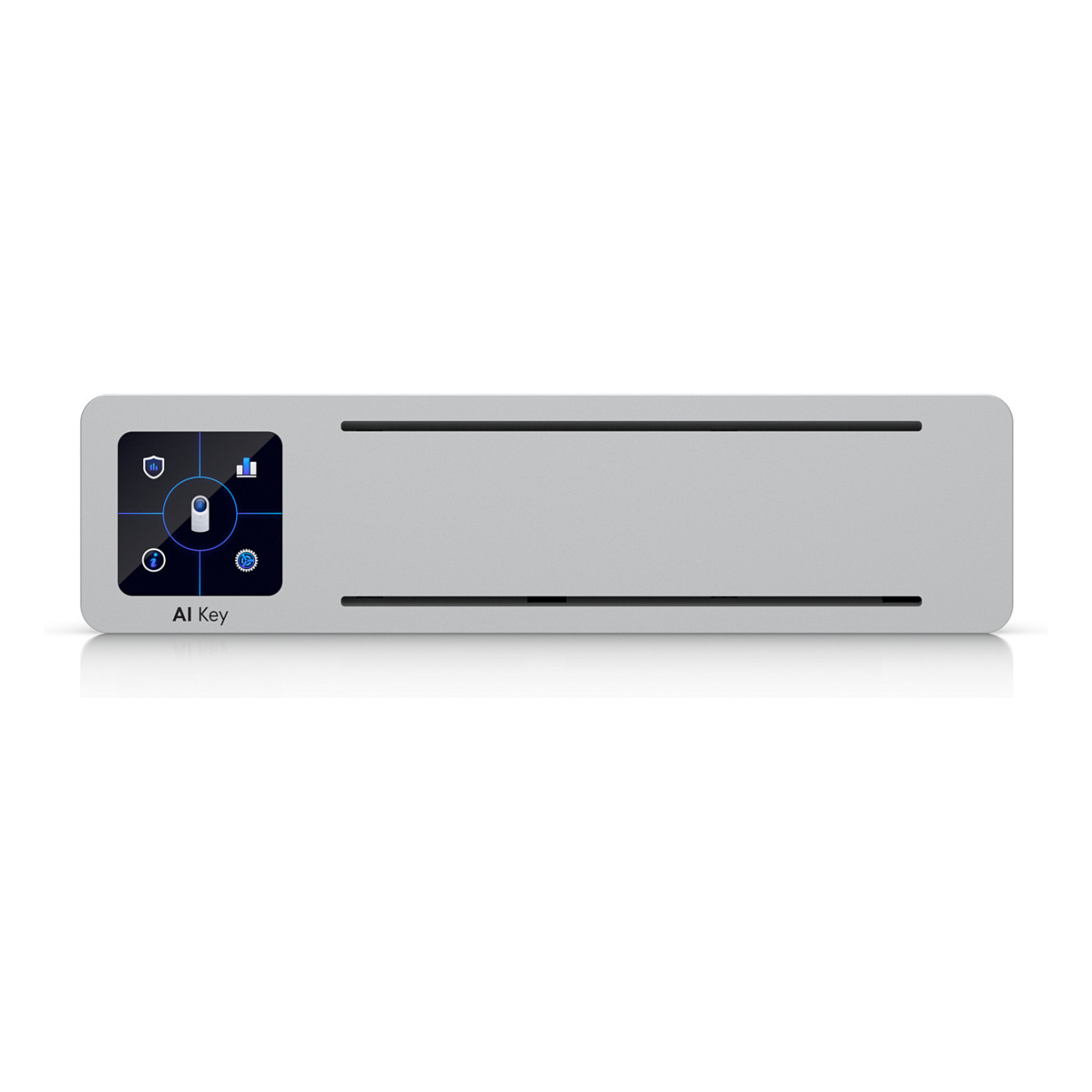

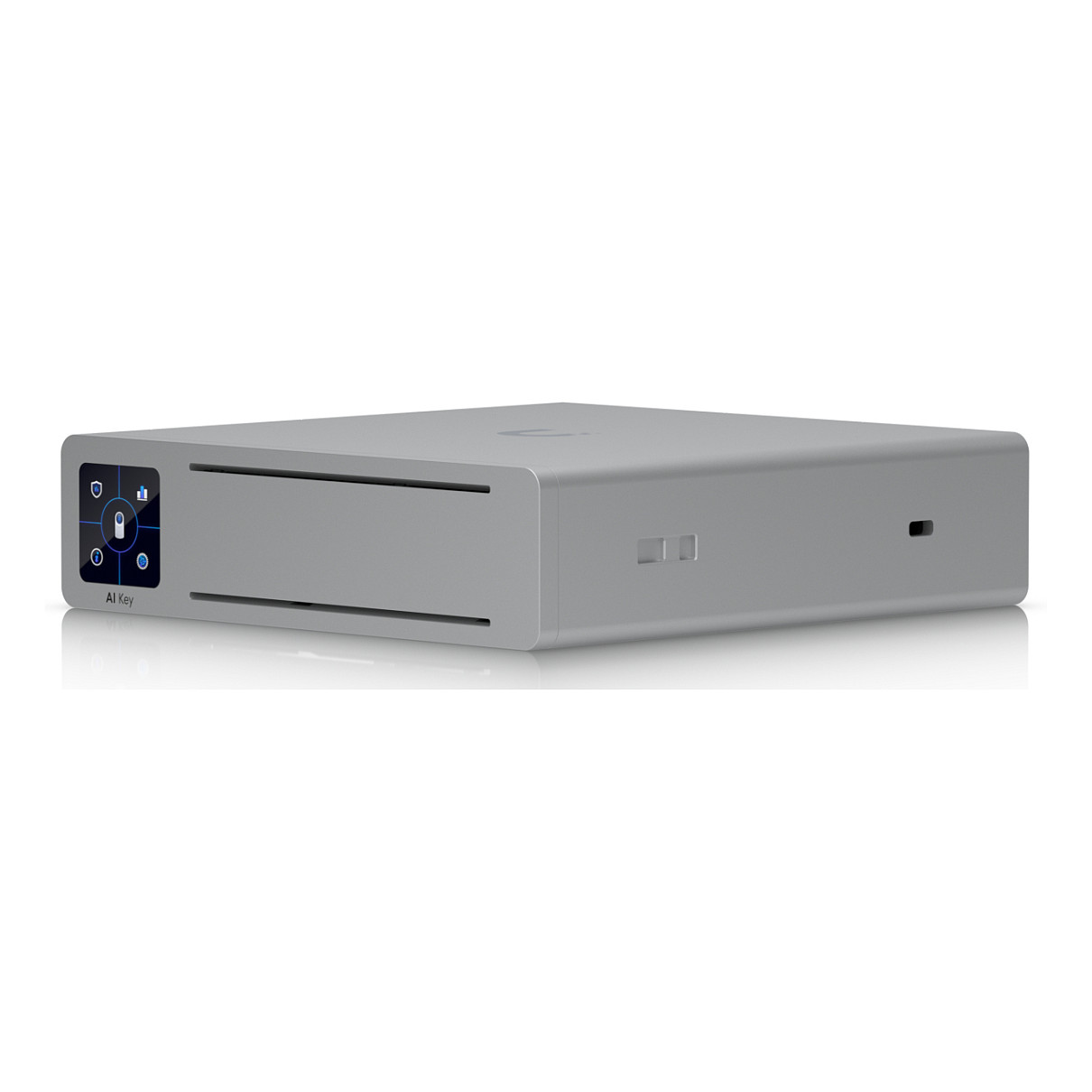

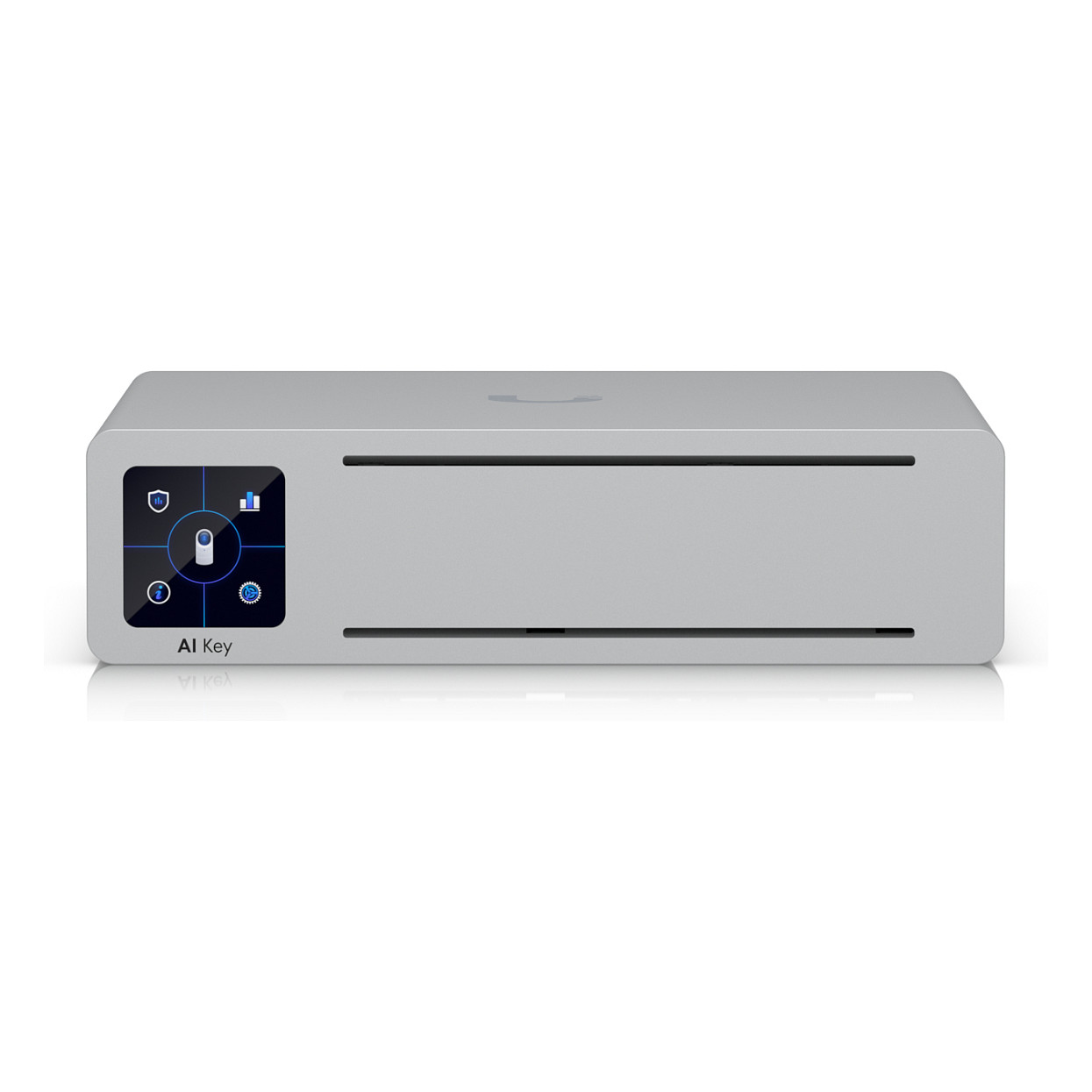

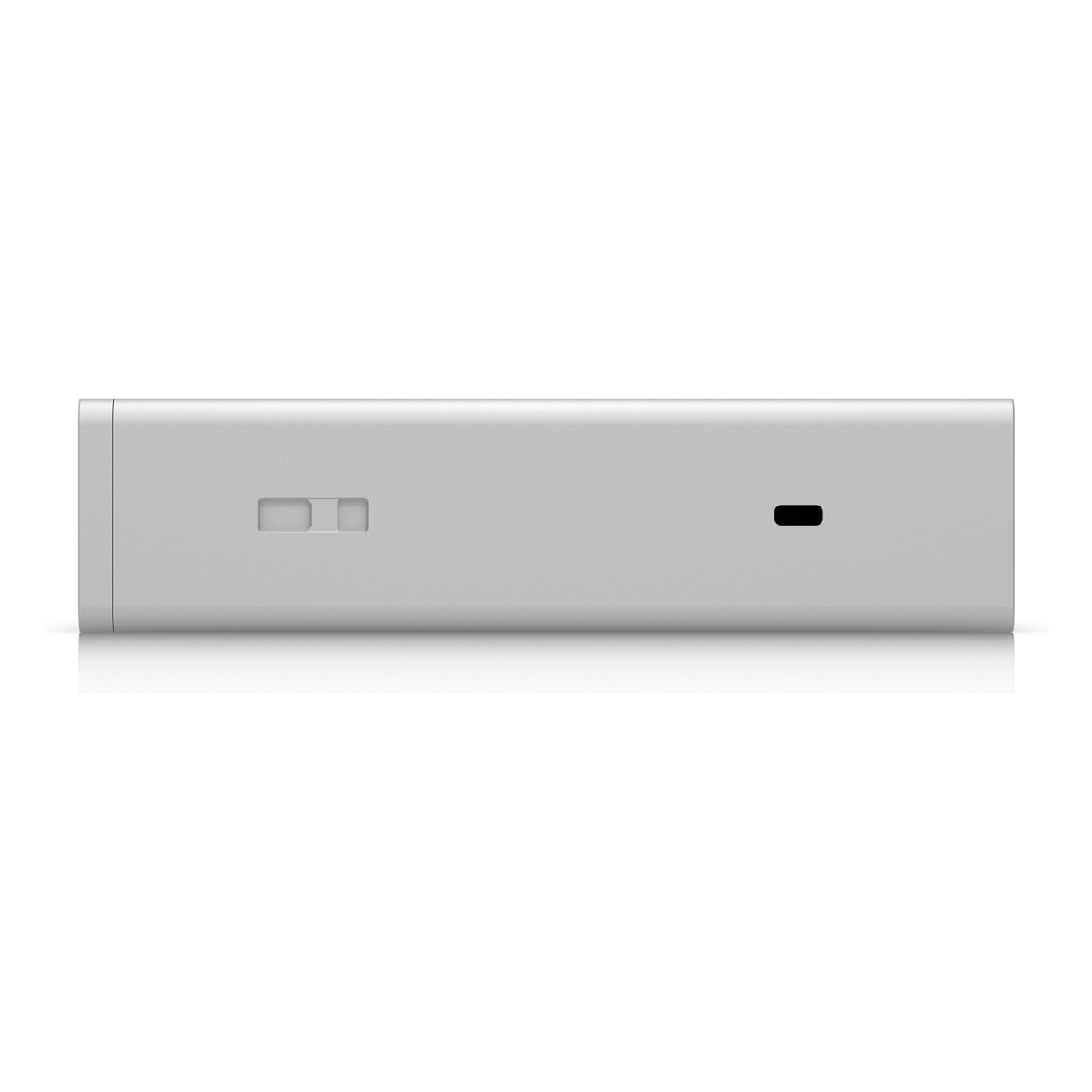

AI Key is an advanced edge AI appliance designed to elevate your UniFi Protect security system. It enhances detection capabilities with powerful features like NeXT AI natural language search, AI alerts, speech transcription, image enhancement. Setting up the AI Key is quick and straightforward, allowing you to unlock advanced AI-driven insights that transform how you monitor and secure your environment.

AI Key works as an edge appliance by receiving smart detections from paired UniFi cameras. Traditionally, Protect cameras are only able to recognize very basic objects such as people and vehicles. AI Key takes these basic smart detections and runs them through a series of advanced AI models to provide powerful new features. While the models used by AI Key provide many useful new features, they might occasionally return inaccurate results. Over time these models will be optimized to improve their accuracy and add additional features.

Design
Product colour: Steel
Enclosure material: Aluminium
Performance
Control display unit: Yes
Built-in processor: Yes
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: Cortex-A78AE
Internal memory: 16000 MB
Internal memory type: LPDDR5
SSD capacity: 128 GB
Detections per hour: 1000
Network
Ethernet LAN data rates: 1000 Mbit/s
Ports & interfaces
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
Management features
Reset button: Yes
Power
Power consumption (max): 45 W
Input voltage: 50-57 V
Power over Ethernet (PoE) type supported: PoE++ (4PPoE)
Power over Ethernet (PoE): Yes
Electrostatic Discharge (ESD) protection: Yes
Electrostatic Discharge (ESD) protection (air): 12 kV
Electrostatic Discharge (ESD) protection (contact): 8 kV
Electromagnetic (EMP) protection: Yes
Electromagnetic (EMP) protection (air): 12 kV
Electromagnetic (EMP) protection (contact): 8 kV
Weight & dimensions
Width: 134.2 mm
Depth: 131.2 mm
Height: 33.7 mm
Weight: 635 g
Operational conditions
Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Certificates
Compliance certificates: CE, Federal Communications Commission (FCC)
Certification: IC
Display
Touchscreen: Yes
Display diagonal: 3.3 cm (1.3")
