ACCESSORIES

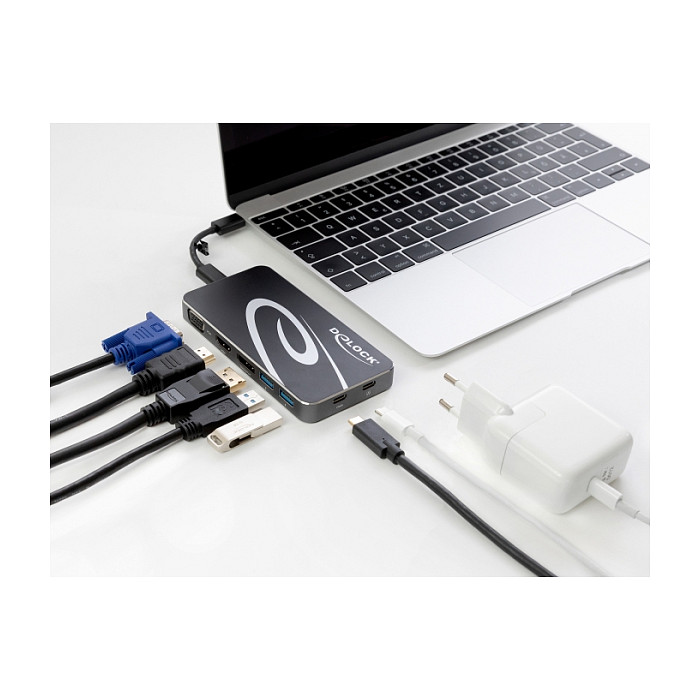

This docking station by Delock can be connected to a computer with a USB-C Alt-Mode or Thunderbolt 3 port and provides a variety of interfaces. Three monitors can be operated simultaneously at the DisplayPort, HDMI and VGA outputs. Two built-in USB Type-A ports and one USB Type-C port allows the use of peripherals.

Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.
When Mac OS is used, the same image is displayed on all ports (mirrored), it is not possible to use the video ports independently of each other.

USB Power Delivery (USB PD 3.0) support up to 100 watt
The docking station has a USB Type-C Power Delivery port to connect the power supply of the laptop or tablet to charge it. The docking station can also be used without a power supply.

Ports & interfaces
Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 4.5 W
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
Performance
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Black
Country of origin: China
Software
Windows operating systems supported: Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64
Mac operating systems supported: Mac OS X 10.15.3 Catalina
Mobile operating systems supported: Android 9.0
Other operating systems supported: ChromeOS
Weight & dimensions
Width: 63 mm
Depth: 127 mm
Height: 14 mm
Packaging content
Cables included: USB Type-C to USB Type-C
Manual: Yes
