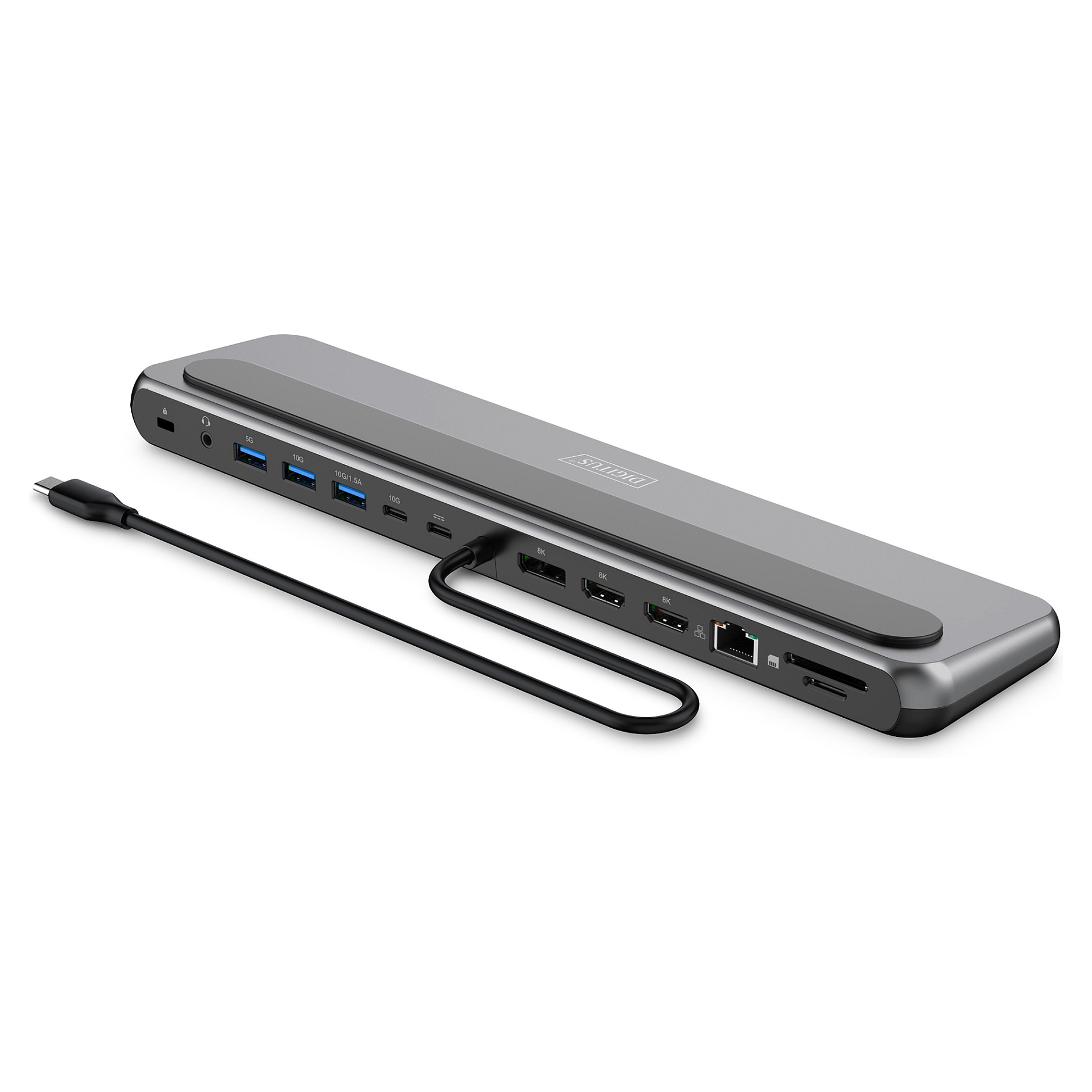

Optimally equipped: The Digitus USB-C 8K Docking Station offers maximum image quality and numerous connections for a sophisticated setup

- 2x HDMI port + 1x DP port (8K/30Hz) - Expand your workstation with up to 3 external monitors
- Supports dual monitor (2x 4K/60Hz) & triple monitor (1x 4K/60Hz + 2x 4K/30Hz) in MST mode (Multi Stream Transport / extend screen) - Windows, ChromeOS
- 2x USB-A 3.2 Gen 2 (10 Gbit/s) connection for ultra-fast data transfer - one port with additional charging function (1.5A) for mobile devices
- 1x USB-A 3.2 Gen 1 (5Gbit/s) port for fast data transfer
- 1x USB-C 3.2 Gen 2 (10 Gbit/s) port for ultra-fast data transfer and charging function (1.5A) for mobile devices
- 1x Gigabit Ethernet connection 10/100/1000 Mbit/s (RJ45) - connection of your notebook to the network via cable
- 2x card reader (SD/MicroSD) - transfer speed of 104 MBps
- 1x 3.5 mm audio jack
- 1x USB-C Power Delivery (3.0) port for charging the notebook
- Rubberized feet and support - perfect for a secure stand without slipping

Expand your workplace with our powerful USB-C 8K docking station and enjoy brilliant image quality. When connecting a single monitor, a resolution of up to 8K/30Hz is supported. When using two or three monitors on the docking station, a resolution of up to 4K/60Hz is achieved. The docking station supports both dual monitor mode (2x 4K/60Hz) and triple monitor mode (3x 4K/60Hz) in SST mode (screen mirroring) and (1x 4K/60Hz + 2x 4K/30Hz) in MST mode (screen extending). With two USB-A 3.2 Gen 2 (10 Gbit/s), one USB-C 3.2 Gen 2 (10 Gbit/s) and one USB-A 3.2 Gen 1 (5 Gbit/s), you can transfer data at lightning speed. Two ports also offer a charging function (1.5A) for mobile devices. The Gigabit Ethernet port (RJ45) ensures a stable network connection, while the SD & MicroSD card reader (104 MB/s) enables fast file transfers. The docking station is powered via the USB-C Power Delivery port. Simply connect your own USB-C charger (at least 100 W) – this is located to the right of the 10 Gbit/s USB-C port. The dock automatically distributes the power: up to 85 W is supplied to your notebook, and the remaining 15 W is used by the docking station for its own operation. This ensures that your laptop remains reliably charged even when in full use. Rubberized feet and the non-slip pad provide stable support for both your notebook and the docking station. Connect all your devices with just one cable - for a tidy and productive working environment.

Ports & interfaces
Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
DisplayPorts quantity: 1
DisplayPort version: 1.4
Combo headphone/mic port: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm
HDCP: Yes
HDCP version: 2.2/2.3
USB Type-C DisplayPort Alternate Mode: Yes
Network
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 1000 Mbit/s
Performance
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 10 Gbit/s
HD type: 8K Ultra HD
Maximum refresh rate: 60 Hz
Cable lock slot: Yes
Cable lock slot type: Nano
Product colour: Black, Grey
High Dynamic Range (HDR) supported: Yes
Plug and Play: Yes
Charging function: Yes
Housing material: Aluminium, Plastic
Power
Power source type: USB
Output voltage: 5 V
Output current: 1.5 A
USB cable length: 0.35 m
Software
Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android, ChromeOS
Operational conditions
Operating temperature (T-T): 0 - 35 °C
Weight & dimensions
Width: 73 mm
Depth: 300 mm
Height: 20 mm
Weight: 450 g
Packaging data
Quantity per pack: 1 pc(s)
Package width: 300 mm
Package depth: 73 mm
Package height: 22 mm
Package weight: 450 g
Packaging content
Quick start guide: Yes
