Διαθέσιμο από 4-8 εργάσιμες ημέρες12th Gen Hybrid Power Makes Multitask Easy

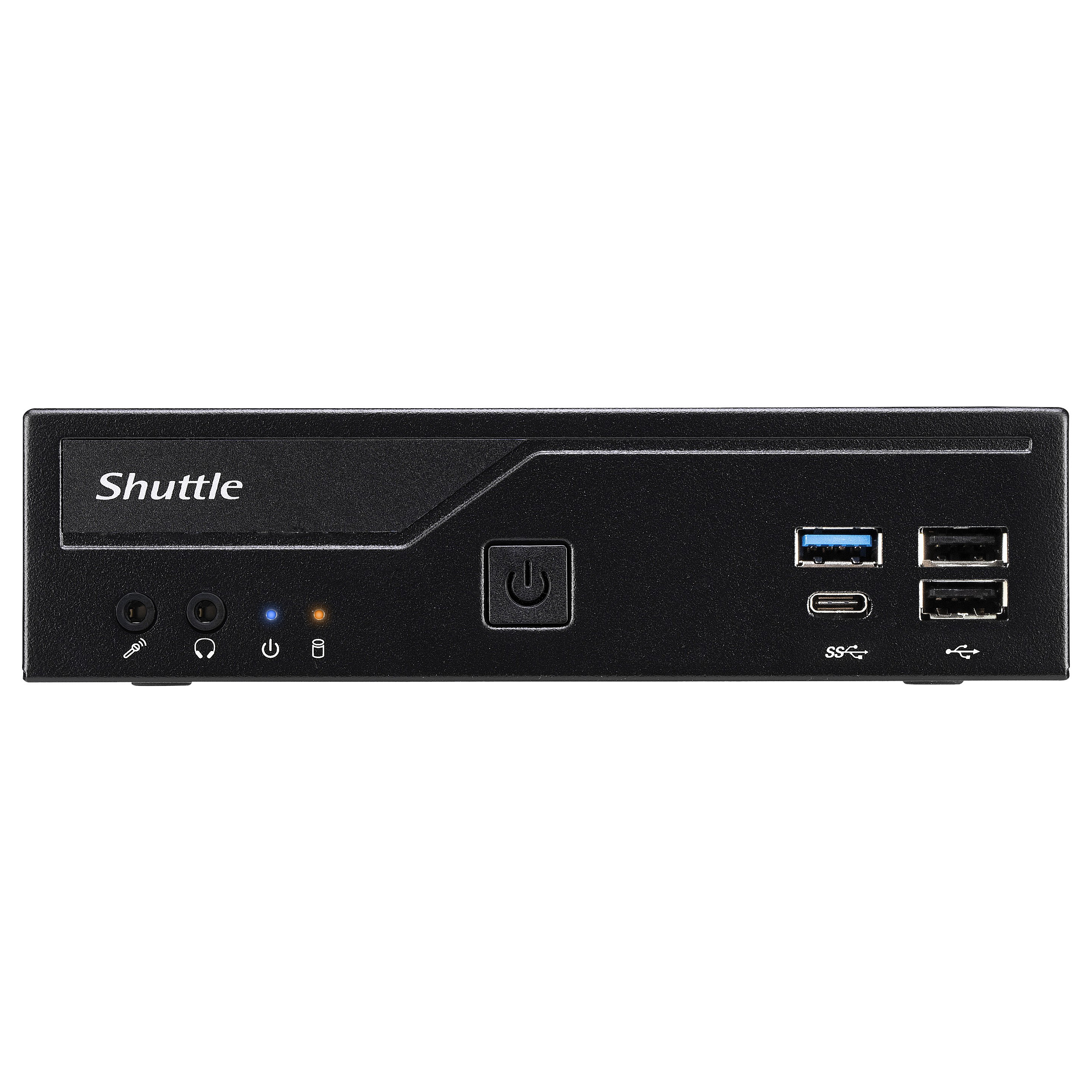

Shuttle XPC Slim series DH610 supports Intel® 12th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.
Intel® 12th Gen processor
Based on the H610 chipset, DH610 is designed for 12th Gen Intel® processors in the LGA1700 socket and supports up to 64GB (32GBx2) of DDR4-3200 memory, which delivers a performance improvement uplift of up to 28%, providing powerful computing capacity. In addition, with Intel® UHD Graphics 700 series integrated, DH610 is potential for multi-platform AI deployment.
Triple-Display Productivity
With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.
Strong Expansion Capacity with M.2
With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.
Rich Connectivity and High-speed Intel® 2.5GbE LAN
DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN and Teaming Mode functions to provide high-speed data transfer capability and a better business networking integration.
Exclusive Cooling Technology
DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.
Processor
Built-in processor: No
Memory
Internal memory installed: No
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 3200 MHz
Supported memory types: DDR4-SDRAM
Storage
Storage drives installed: No
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5"
Storage drive interface: M.2, Serial ATA, Serial ATA II, Serial ATA III
Graphics
On-board graphics card: Yes
Graphics card family: Intel
Maximum resolution: 3840 x 2160 pixels
Number of displays supported: 3
Audio
Built-in speaker(s): No
Network
Ethernet LAN: Yes
Wi-Fi: No
Ports & interfaces
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 2
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
COM ports quantity: 2
Number of SATA III connectors: 1
DC-in jack: Yes
Expansion slots
Number of M.2 (M) slots: 2
Design
Chassis type: 1.3L sized PC
Product colour: Black
Cooling type: Active
On/off switch: Yes
LED indicators: HDD, Power
Cable lock slot: Yes
Cable lock slot type: Kensington
VESA mounting: Yes
Product type: Mini PC barebone
Performance
Processor socket: LGA 1700
Number of processors supported: 1
Software
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Linux operating systems supported: Yes
Power
Power supply type: External AC adapter
Power supply: 120 W
AC input voltage: 100 - 240 V
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A
Weight & dimensions
Width: 165 mm
Depth: 190 mm
Height: 43 mm
Packaging content
Power cord included: Yes
AC adapter included: Yes
Quick start guide: Yes
Drivers included: Yes
Shuttle XPC Slim series DH610 supports Intel® 12th Gen LGA1700 processors. With Intel® new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel® 2.5GbE + Intel® 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.
Intel® 12th Gen processor
Based on the H610 chipset, DH610 is designed for 12th Gen Intel® processors in the LGA1700 socket and supports up to 64GB (32GBx2) of DDR4-3200 memory, which delivers a performance improvement uplift of up to 28%, providing powerful computing capacity. In addition, with Intel® UHD Graphics 700 series integrated, DH610 is potential for multi-platform AI deployment.
Triple-Display Productivity
With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.
Strong Expansion Capacity with M.2
With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
*M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.
Rich Connectivity and High-speed Intel® 2.5GbE LAN
DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN and Teaming Mode functions to provide high-speed data transfer capability and a better business networking integration.
Exclusive Cooling Technology
DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.
Processor
Built-in processor: No
Memory
Internal memory installed: No
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 3200 MHz
Supported memory types: DDR4-SDRAM
Storage
Storage drives installed: No
Supported storage drive types: HDD & SSD
Storage drive sizes supported: 2.5"
Storage drive interface: M.2, Serial ATA, Serial ATA II, Serial ATA III
Graphics
On-board graphics card: Yes
Graphics card family: Intel
Maximum resolution: 3840 x 2160 pixels
Number of displays supported: 3
Audio
Built-in speaker(s): No
Network
Ethernet LAN: Yes
Wi-Fi: No
Ports & interfaces
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0b
DisplayPorts quantity: 2
Microphone in: Yes
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 2
COM ports quantity: 2
Number of SATA III connectors: 1
DC-in jack: Yes
Expansion slots
Number of M.2 (M) slots: 2
Design
Chassis type: 1.3L sized PC
Product colour: Black
Cooling type: Active
On/off switch: Yes
LED indicators: HDD, Power
Cable lock slot: Yes
Cable lock slot type: Kensington
VESA mounting: Yes
Product type: Mini PC barebone
Performance
Processor socket: LGA 1700
Number of processors supported: 1
Software
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Linux operating systems supported: Yes
Power
Power supply type: External AC adapter
Power supply: 120 W
AC input voltage: 100 - 240 V
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A
Weight & dimensions
Width: 165 mm
Depth: 190 mm
Height: 43 mm
Packaging content
Power cord included: Yes
AC adapter included: Yes
Quick start guide: Yes
Drivers included: Yes
