Affordable AI-PC in Nano Format Powered by AMD Ryzen™ Zen 4 APU

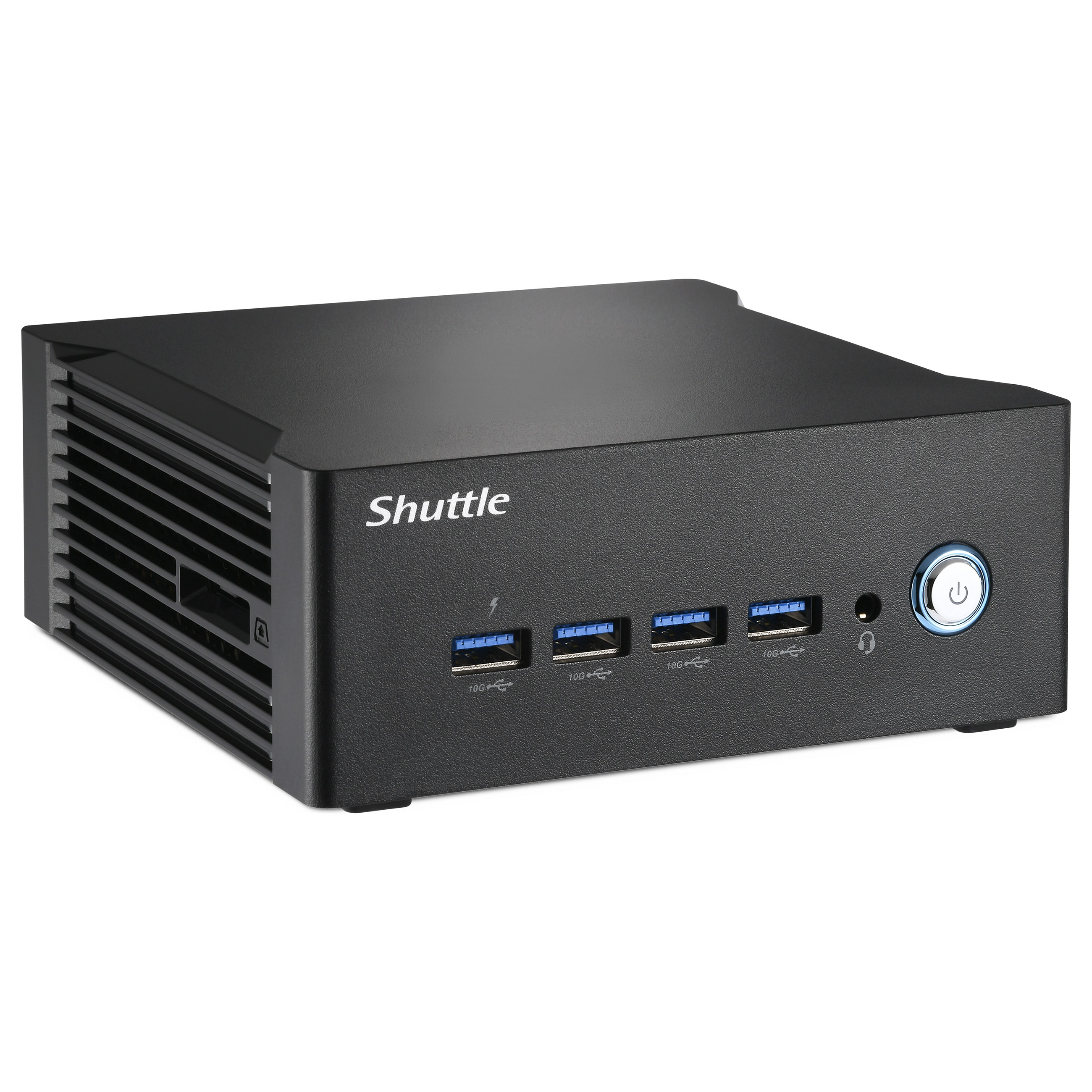

The Shuttle XPC Barebone NA10H7, part of the XPC nano family, is powered by the AMD Ryzen™ 7-8845HS APU, featuring the cutting-edge Zen 4 microarchitecture. With 8 cores, 16 threads, and AMD Radeon™ 780M graphics, it delivers exceptional performance and is primed for AI-readiness.

The integrated Neural Processing Unit (NPU) achieves 16 TOPS of AI performance, while the combined NPU, CPU, and GPU offer a total of 39 TOPS, enabling demanding AI workloads. Supporting up to 64 GB of DDR5 memory, the NA10H7 also boasts a comprehensive array of I/O options, including four UHD graphics ports and two USB4 ports.

Designed as a cost-effective, high-performance solution for generative AI tasks, the NA10H7 excels in a variety of applications, such as content creation, gaming, entertainment, office work, commerce, and AIoT implementations. With its compact nano chassis and advanced connectivity features, it sets a new standard for affordable AI-PCs.

Processor
Processor manufacturer: AMD
Processor family: AMD Ryzen™ 7
Processor generation: AMD Ryzen 8000 Series
Processor model: 8845HS
Processor cores: 8
Processor threads: 16
Processor boost frequency: 5.1 GHz
Processor frequency: 3.8 GHz
Built-in processor: Yes
L2 cache: 8 MB
L3 cache: 16 MB
Thermal Design Power (TDP): 45 W
Memory
Internal memory installed: No
Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 5600 MHz
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory voltage: 1.1 V
Non-ECC: Yes
Storage
Storage drives installed: No
Supported storage drive types: SSD
Storage drive sizes supported: M.2
SSD form factor: M.2
Storage drive interface: PCI Express
NVMe: Yes
Card reader integrated: Yes
Compatible memory cards: SD
Graphics
On-board graphics card: Yes
Graphics card family: AMD
On-board graphics card model: AMD Radeon 780M
Number of displays supported: 4
Performance
BIOS type: UEFI AMI
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Audio chip: Realtek ALC269
Audio
Built-in speaker(s): No
Network
Ethernet LAN: Yes
Wi-Fi: No
LAN controller: Realtek RTL8125B
Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB4 Gen 2x2 ports quantity: 2
HDMI ports quantity: 2
HDMI version: 2.0
Combo headphone/mic port: Yes
Ethernet LAN (RJ-45) ports: 2
Design
Chassis type: 1L sized PC
Product colour: Black
Cooling type: Active
LED indicators: Power
Housing material: Plastic
Cable lock slot: Yes
Cable lock slot type: Kensington
VESA mounting: Yes
Panel mounting interface: 75 x 75,100 x 100 mm
Product type: Mini PC barebone
Technical details
Compliance certificates: BSMI, CB, CE, Federal Communications Commission (FCC), RoHS, cTUVus
Logistics data
Harmonized System (HS) code: 84714900
Software
Windows operating systems supported: Windows 11 x64
Linux operating systems supported: Yes
Sustainability
Sustainability certificates: ENERGY STAR, ErP
Power
Power supply type: External AC adapter
Power supply: 120 W
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
AC adapter output voltage: 19 V
AC adapter output current: 6.32 A
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
Width: 132 mm
Depth: 143 mm
Height: 55 mm
Weight: 800 g
Package weight: 1.7 kg
Packaging content
Power cord included: Yes
AC adapter included: Yes
Quick start guide: Yes
