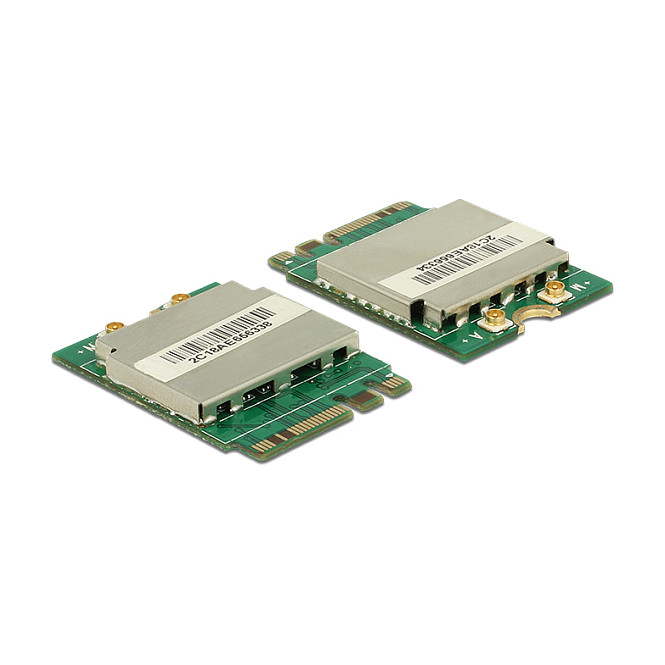

This M.2 module by Delock can be inserted into an M.2 slot with key A or key E. It provides one WLAN interface which exchanges signals via PCIe with the system and one Bluetooth interface which exchanges signals via USB with the system.

Ports & interfaces
Connectivity technology: Wireless
Host interface: M.2
Interface: WLAN / Bluetooth
Network
Maximum data transfer rate: 433.3 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n
Wi-Fi: Yes
Wi-Fi band: Single-band (2.4 GHz)
Frequency range: 2.4 - 2.4835 GHz
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 54,150,433 Mbit/s
Security algorithms: WPA, WPA2
Bandwidth (first): 2.4 GHz
Bandwidth (second): 5 GHz
Bluetooth version: 4.0
Design
Product colour: Green, Silver
Internal: No
Antenna design: Internal
Chipset: Realtek RTL8821AE
Power
Output voltage: 3.3 V
Power consumption: 500 mA
System requirements
Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1
Linux operating systems supported: Yes
Operational conditions
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -5 - 65 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
Width: 22 mm
Depth: 30 mm
Height: 2.5 mm
Packaging data
Drivers included: Yes
Package type: Box
Packaging content
Manual: Yes
Other features
Antennas quantity: 2
