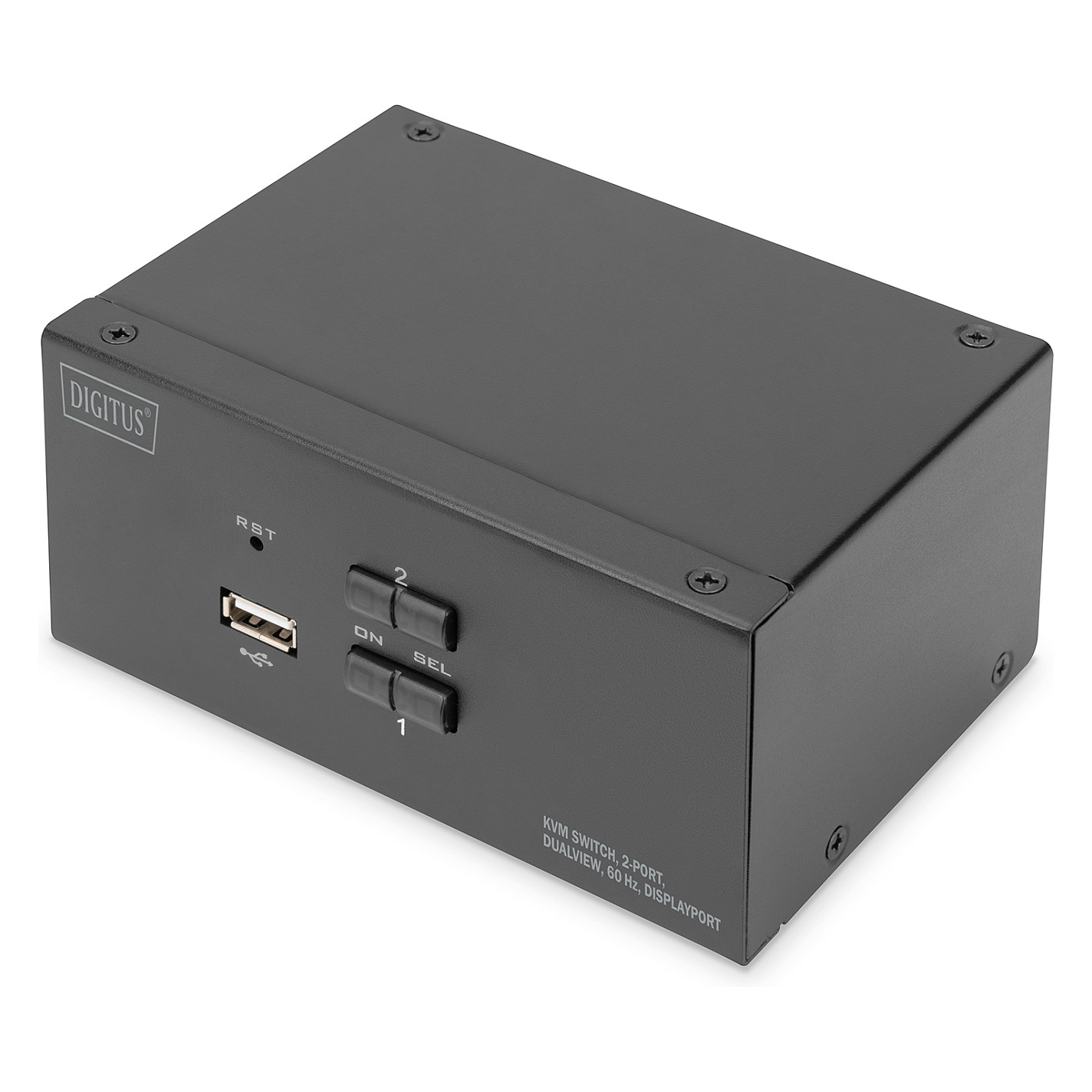

KVM SWITCH

Operate 2 PCs with dual display using a USB keyboard and mouse combination – switch between two computers by pressing a button

- Use two monitors, a mouse and a keyboard to operate 2 computers with dual display
- Supports a maximum UHD resolution of 4K / 60 Hz
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker, supports Dolby True HD and DTS HD Master Audio
- Integrated USB hub with USB A port for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch or hot key on the keyboard
- LED status and functional displays on the front side
- The KVM switch is supplied with power via the USB connection through a connected computer
- Real Plug and Play - no software or driver installation required (BIOS hardware connection)
- Sturdy metal housing

With the DIGITUS® 2-Port KVM Switch for dual displays, you can operate two 4k-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between the two PCs and are spared the trouble of replugging all cables. Output on up to two monitors is provided via two DisplayPort® outputs on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.

Ports & interfaces
Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 6
USB 2.0 Type-B ports quantity: 2
Console ports: DisplayPort, USB A
USB connector type: USB Type-A
Audio connections: Yes
DC-in jack: Yes
Performance
HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Design
Rack mounting: No
Product colour: Black
Housing material: Metal
LED indicators: Status
Display
Built-in display: No
Power
Power source: DC
Input voltage: 9 V
Operational conditions
Operating temperature (T-T): 0 - 80 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%
Weight & dimensions
Width: 132 mm
Depth: 92 mm
Height: 66 mm
Weight: 580 g
Packaging data
Package width: 210 mm
Package depth: 210 mm
Package height: 120 mm
Package weight: 1.82 kg
Packaging content
Cables included: DisplayPort, KVM
Manual: Yes
Logistics data
Country of origin: China
