KVM SWITCH

Split a single HDMI 2.0 source across 2 HDMI displays
Supports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
HDCP 2.2 support for enhanced compatibility
EDID Management for hassle free installation
2 Year Warranty

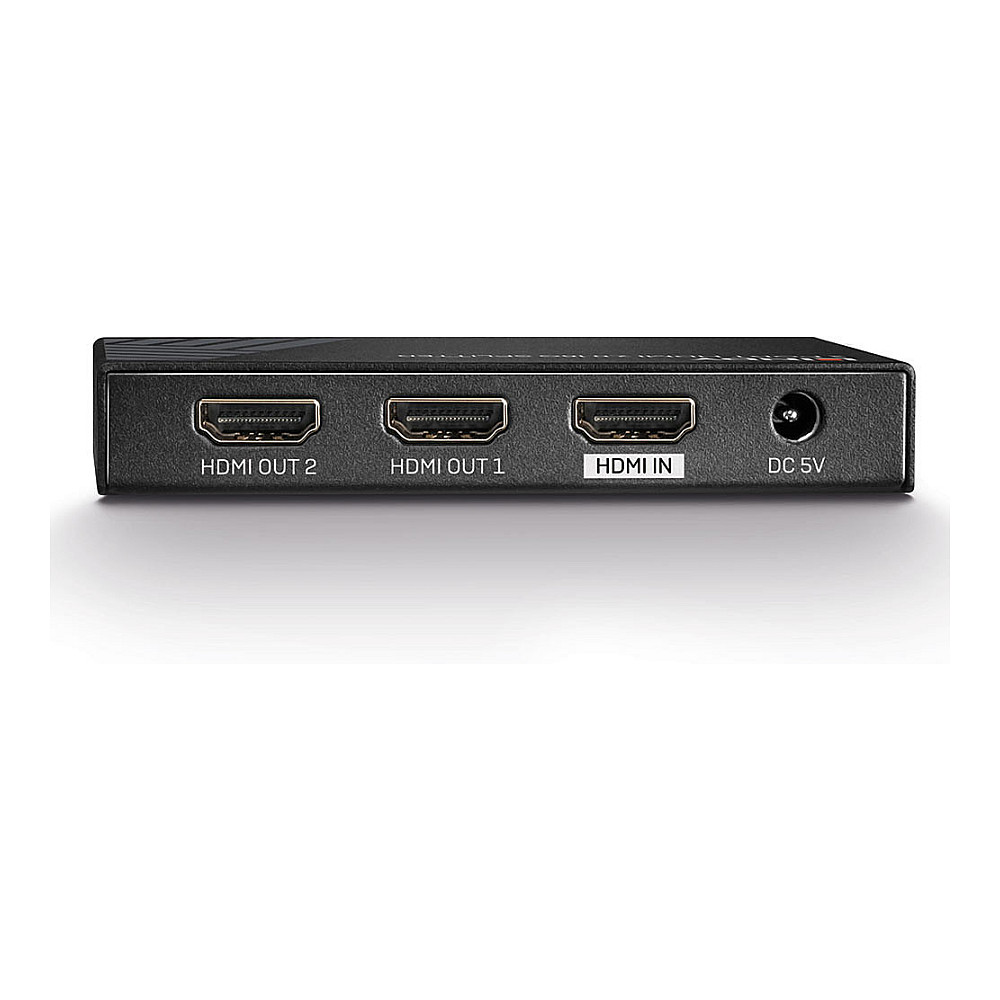

The Lindy 2 Port HDMI 18G Splitter is a compact, high quality solution for distributing HDMI 2.0 18G signals across dual displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars.

The additional ability to cascade this splitter up to three further levels allows for an extended HDMI splitting experience, ideal for multi-screen situations such as informational broadcasting in airports, train stations or stock exchange offices.

Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.

HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display.

The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen.

Ports & interfaces
Video port type: HDMI
Video out: 2x HDMI
HDMI version: 2.0
Video ports quantity: 1
DC-in jack: Yes
Features
Product colour: Black
Housing material: Metal
Maximum resolution: 3840 x 2160 pixels
HDCP version: 2.2
HDCP: Yes
Certification: CE, FCC, RoHS, REACH, California Proposition 65
Power
AC input voltage: 5 V
Input current: 1 A
Weight & dimensions
Width: 100 mm
Depth: 56 mm
Height: 16 mm
Weight: 263 g
Packaging data
Package width: 146 mm
Package depth: 65 mm
Package height: 105 mm
Package weight: 342 g
Package type: Box
Packaging content
Manual: Yes
AC adapter included: Yes
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
Logistics data
Harmonized System (HS) code: 85176990
