KVM SWITCH

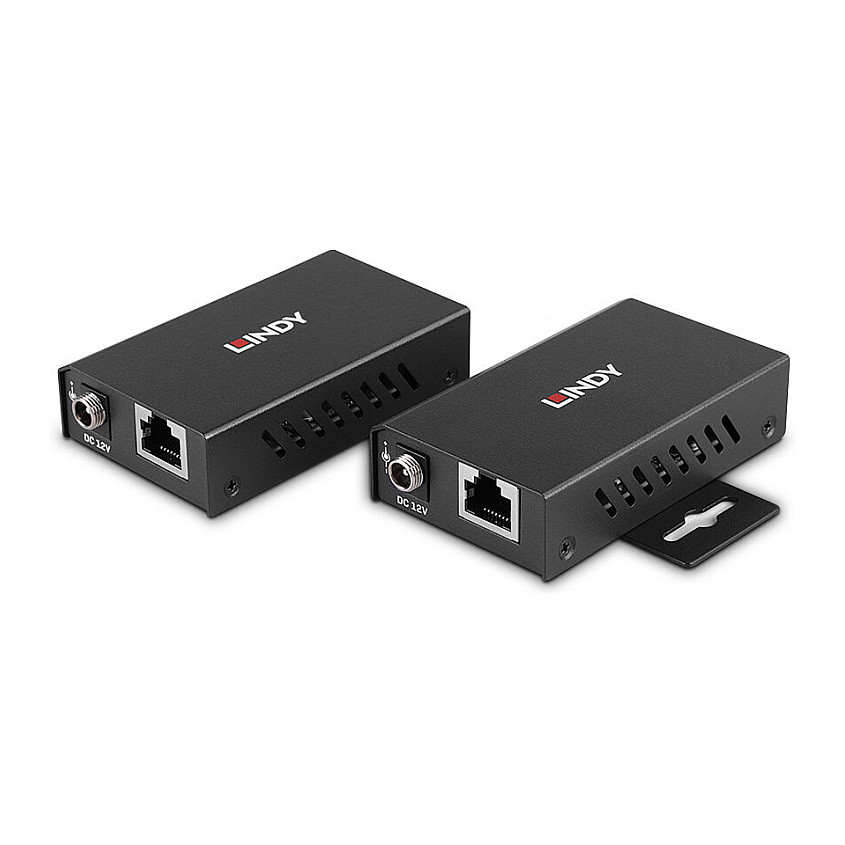

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between two USB peripheral devices and the host computer by up to 100m. A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.

The Extender features bidirectional Power over Cable (PoC) functionality, which provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit.

With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.

Features
Type: AV transmitter & receiver
Maximum transfer distance: 100 m
Chipset: VA6000
Bandwidth: 0.48 Gbit/s
Material: Metal
Product colour: Black
Certification: CE, FCC, RoHS & REACH, CP65
Ports & interfaces
Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
USB ports quantity: 3
USB version: 2.0
USB connector type: USB Type-B
DC-in jack: Yes
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
Width: 82 mm
Depth: 49 mm
Height: 20 mm
Weight: 200 g
Packaging data
Quantity per pack: 2 pc(s)
Package width: 200 mm
Package depth: 115 mm
Package height: 75 mm
Package weight: 600 g
Package type: Box
Packaging content
Cables included: USB Type-A to USB Type-B
Manual: Yes
Mounting brackets included: Yes
Packaging content: Transmitter unitReceiver unit0.9m USB 2.0 A Male to B Male cableMulti-Country Power Supply (EU, UK, US & AUS)Mounting BracketsLindy Manual
