KVM SWITCH

Extends HDMI 4K (3840x2160p60Hz 4:2:0) or VGA (max 1920x1200) Video signals over a Gigabit IP network
Supports point to point installation up to 100m (393ft) and point to multipoint installation using a Gigabit Switch (also for Video Wall creation)
Extends USB 2.0, USB HID  (for KVM functions), bidirectional analog audio, bidirectional IR and RS232 signals
HDMI 2.0 & HDCP 2.2/1.4 compliant
2 year warranty

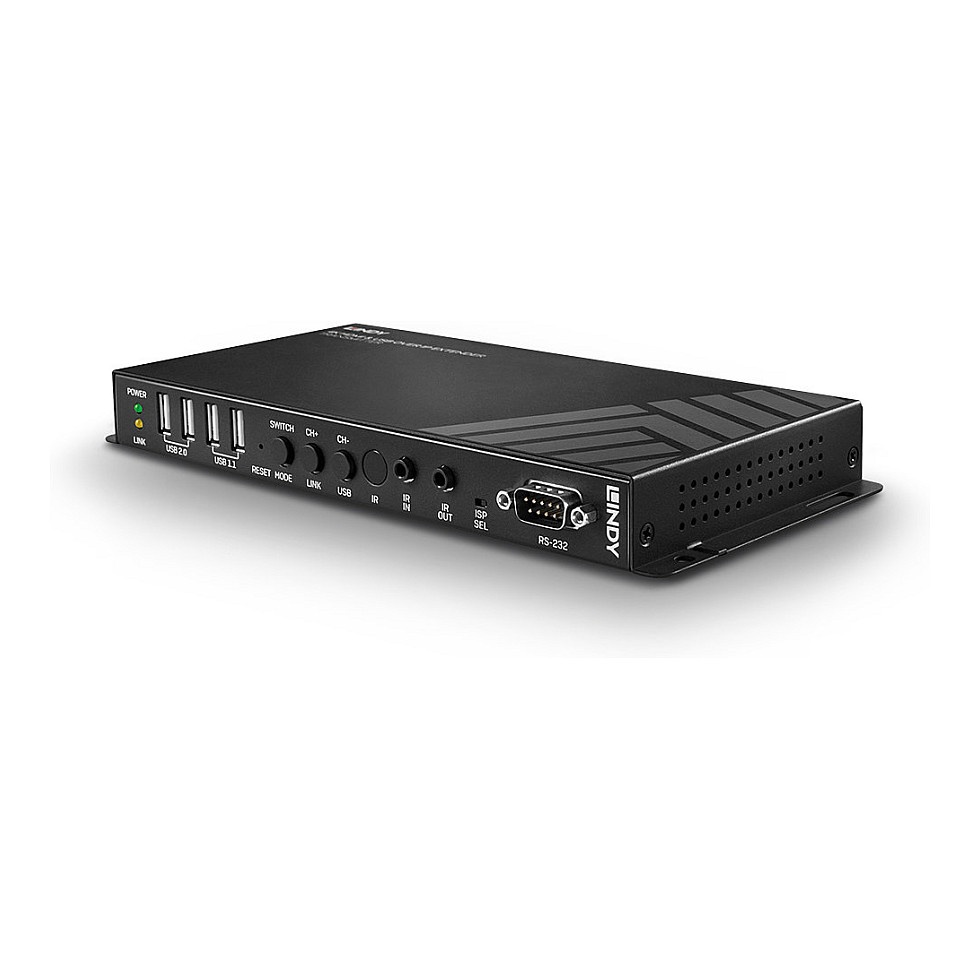

The 4K Over IP Extender system allows users to extend a 4K video source such as a PC or PVR through a standard Gigabit IP network letting the user control it from the remote side through the extended USB interfaces. This receiver unit can be connected to a transmitter unit (No. 38266 – not included) to create a standard point to point control system with a maximum distance of 100m (393ft). The transmitter can also be connected to many receivers, allowing a single device to be controlled from different consoles at the receiver end or creating a Video Wall installation via a dedicated Gigabit Ethernet (supporting 8kB Jumbo frames) switch on the same private network.

Besides the HDMI embedded audio signal, this unit also manages 2 additional audio channels (1 x Line out audio from the source side and 1 for microphone connected on the remote side) and a SPDIF optical port on the receiver unit to connect a digital audio amplifier or device.

This HDMI Over IP extender system includes a convenient bidirectional IR (20-60Khz) repeating system to allow the extension of the remote control signals.

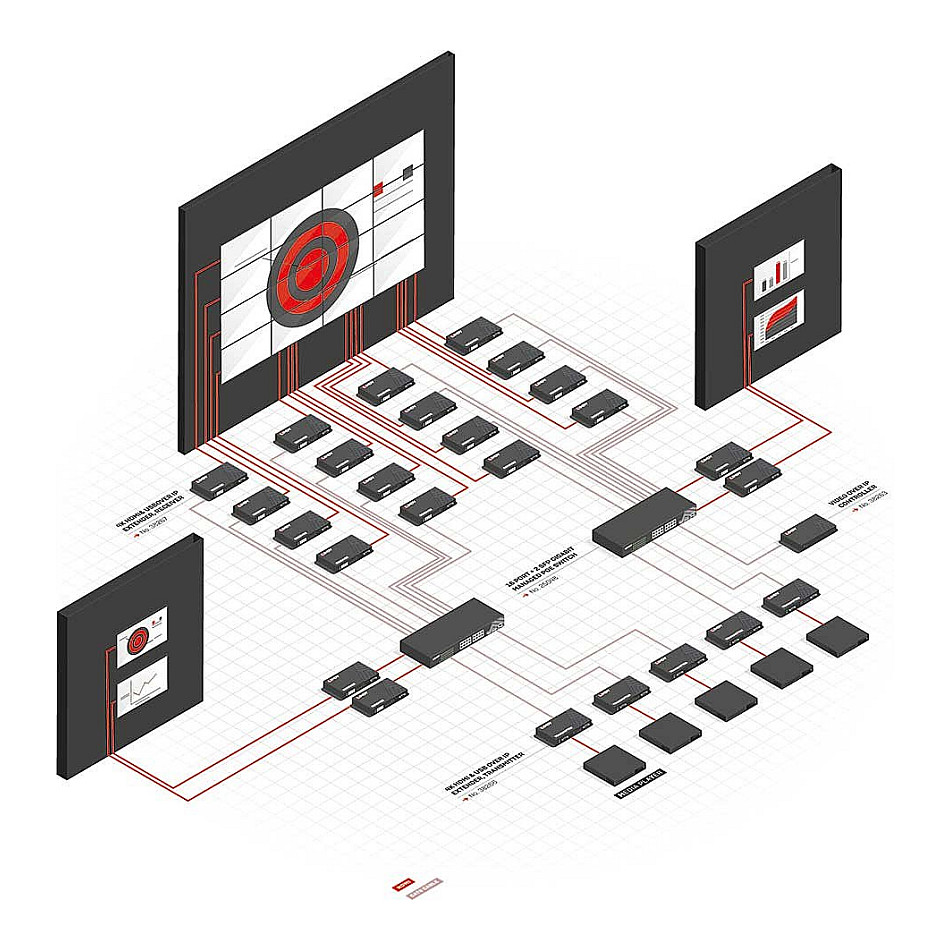

This device is a typical solution for security system management (PVR management or control rooms) or remote server administration (though the KVM control system) as well as AV signals over IP extension for distributed monitoring of industrial facilities. Another main application for this system is big Video Wall installation (up to 16x16 screens) widely used for digital signage and retail stores.

Features
Type: AV receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat6
Maximum transfer distance: 100 m
Maximum refresh rate: 60 Hz
LED indicators: Link, Power
Supported graphics resolutions: 1920 x 1200 (WUXGA), 3840 x 2160
Bandwidth: 10.2 Gbit/s
HDCP: Yes
Material: Metal
HDCP version: 2.2
Product colour: Black
Certification: CE, FCC, REACH
Ports & interfaces
Connectivity technology: Wired
RJ-45 output ports: 3
VGA (D-Sub) output ports: 1
Number of HDMI outputs: 1
HDMI version: 2.0
USB ports quantity: 4
USB version: 2.0
USB connector type: USB Type-A
Digital audio optical out: 1
Serial ports quantity: 1
Serial interface type: RS-232
DC-in jack: Yes
Power
Operating voltage: 5 V
Input current: 4 A
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
Width: 235 mm
Depth: 25 mm
Height: 108 mm
Weight: 670 g
Packaging data
Package width: 225 mm
Package depth: 190 mm
Package height: 80 mm
Package weight: 1.4 kg
Packaging content
AC adapter included: Yes
Manual: Yes
IR blaster included: Yes
IR receiver included: Yes
Technical details
Compliance certificates: RoHS
