KVM SWITCH

Use an RJ45 network cable to transmit high-resolution, uncompressed audio/video content, USB signals and data

- Transmit high-resolution multimedia content without loss of quality and uncompressed over lengths of up to 100 m
- Saves unnecessary cabling and bundles multimedia and many other signals in one network cable
- Forwarding without loss of quality through transmission of uncompressed data
- Supports HDBaseT™ 2.0 via CAT6A/7/8 cable up to 100 m
- Supports transmission of video, audio + USB signals via network cable
- Supports Full 3D, 1080p, 4K@60Hz (YUV 4:2:0)
- Supports USB 2.0 features (HighSpeed) for up to 6 USB devices
- Supports CEC (Consumer electronics control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audio™ and Dolby TrueHD)

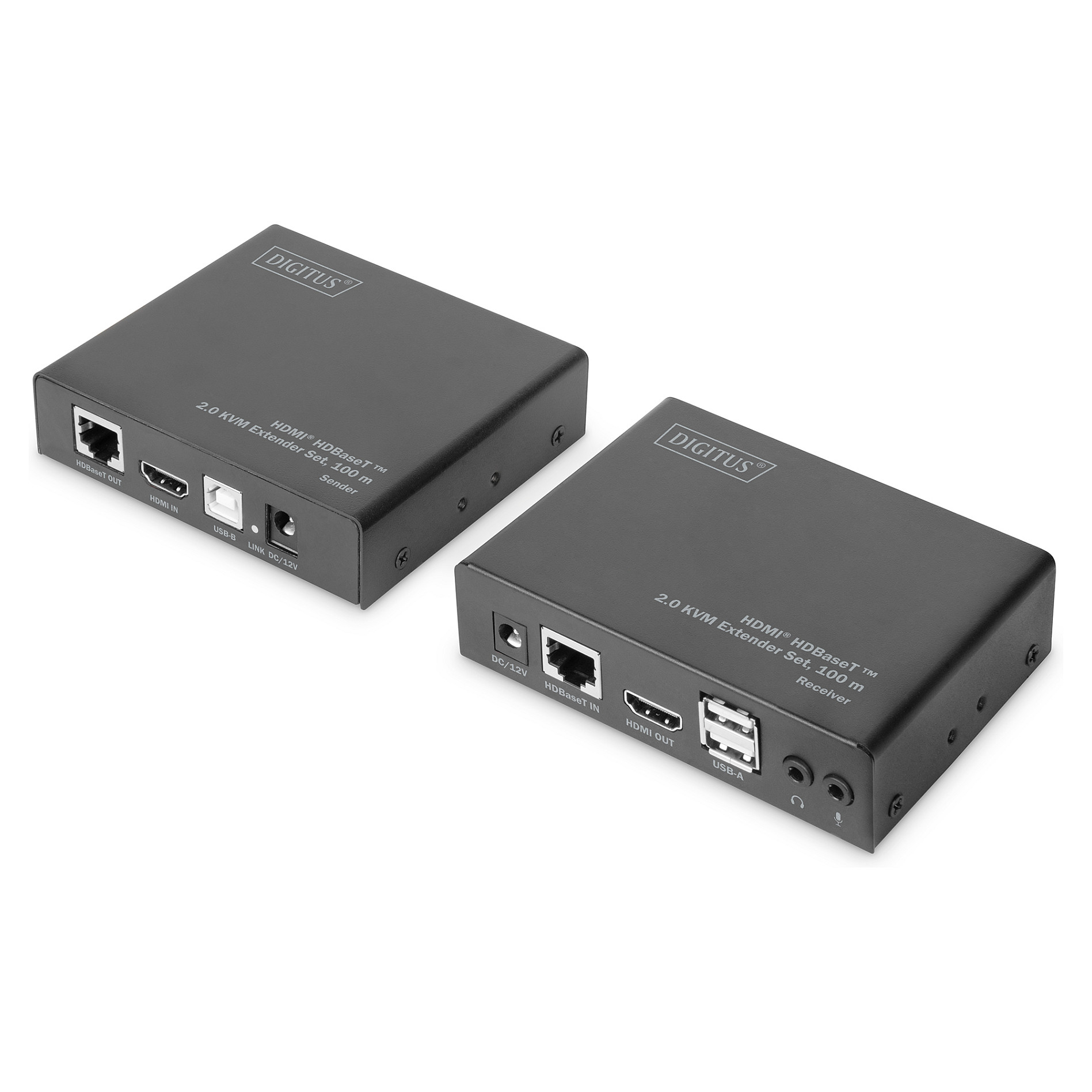

With the DIGITUS® HDMI HDBaseT™ 2.0 KVM Extender Set, you can control your source device from up to 100 meters away over a single CAT6A/7/8 cable connection, with uncompressed 4K HDMI™ video content and access to up to 6 connected USB devices. This extender has been specifically designed for a smooth and straightforward setup. The HDBaseT™ 2.0 technology enables installation via a single cable, avoiding the hassle of running multiple cables. The typical use case would be a cross-room solution, for example, where the source device and display can be up to 100 meters apart. You can use up to 6 USB devices connected to the transmitter module from the receiver and of course enjoy video and audio content. A very simple KVM functionality in terms of installation and use. Instead of multiple cables, lay just one RJ45 network cable or use the existing network connections (point-to-point) with the HDMI HDBaseT™ 2.0 Extender from DIGITUS®.

Features
Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 100 m
Cable types supported: Cat5e
Maximum digital resolution: 4096 x 2160 pixels
Colour depth: 36 bit
Product colour: Black
Material: Metal
Transmitter
Transmitter video port type: HDMI
Transmitter local keyboard/mouse port type: USB
RJ-45 ports quantity (transmitter): 1
Receiver
Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1
Ports & interfaces
USB 2.0 ports quantity: 6
Power
AC input voltage: 100 - 240 V
Input current: 0.65 A
AC adapter output voltage: 12 V
AC adapter output current: 2 A
Power consumption (transmitter) (max): 3 W
Power consumption (receiver) (max): 7 W
Weight & dimensions
Transmitter width: 13 cm
Transmitter depth: 1 cm
Transmitter height: 2.5 cm
Transmitter weight: 212 g
Receiver width: 11 cm
Receiver depth: 8 cm
Receiver height: 2.8 cm
Receiver weight: 240 g
Packaging data
Package width: 196 mm
Package depth: 243 mm
Package weight: 975 g
Packaging content
Cables included: USB
Mounting bracket(s) included: Yes
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 90%
Technical details
Maximum resolution: 3840 x 2160 pixels
Package volume: 2857.68 cm³
Logistics data
Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 84733080
