KVM SWITCH

Enables AV signal transmission in UHD resolution (4K/30Hz) over a distance of up to 40 m via a CAT6 (or higher) network cable and offers KVM function (keyboard, video, mouse) as well as PoC (Power over Cable) on the receiver side

- Loss-free HDMI signal transmission in UHD 4K/30Hz (3840x2160p) up to 40 m via CAT6 (or higher) network cable
- Loss-free HDMI signal transmission in Full HD (1080p/60Hz) up to 70 m via CAT6 (or higher) network cable
- Ultra Low Latency - Virtually latency-free image reproduction (10-20 ms) and uncompressed AV signal transmission
- Additional connectivity & control: KVM function for connecting mouse & keyboard on the receiver side
- Flexible installation thanks to PoC support: only the transmitter unit needs to be supplied with power via an external power supply unit
- Supports point-to-point connections
- Supports CAT6 (or higher) network cables
- Plug & Play installation

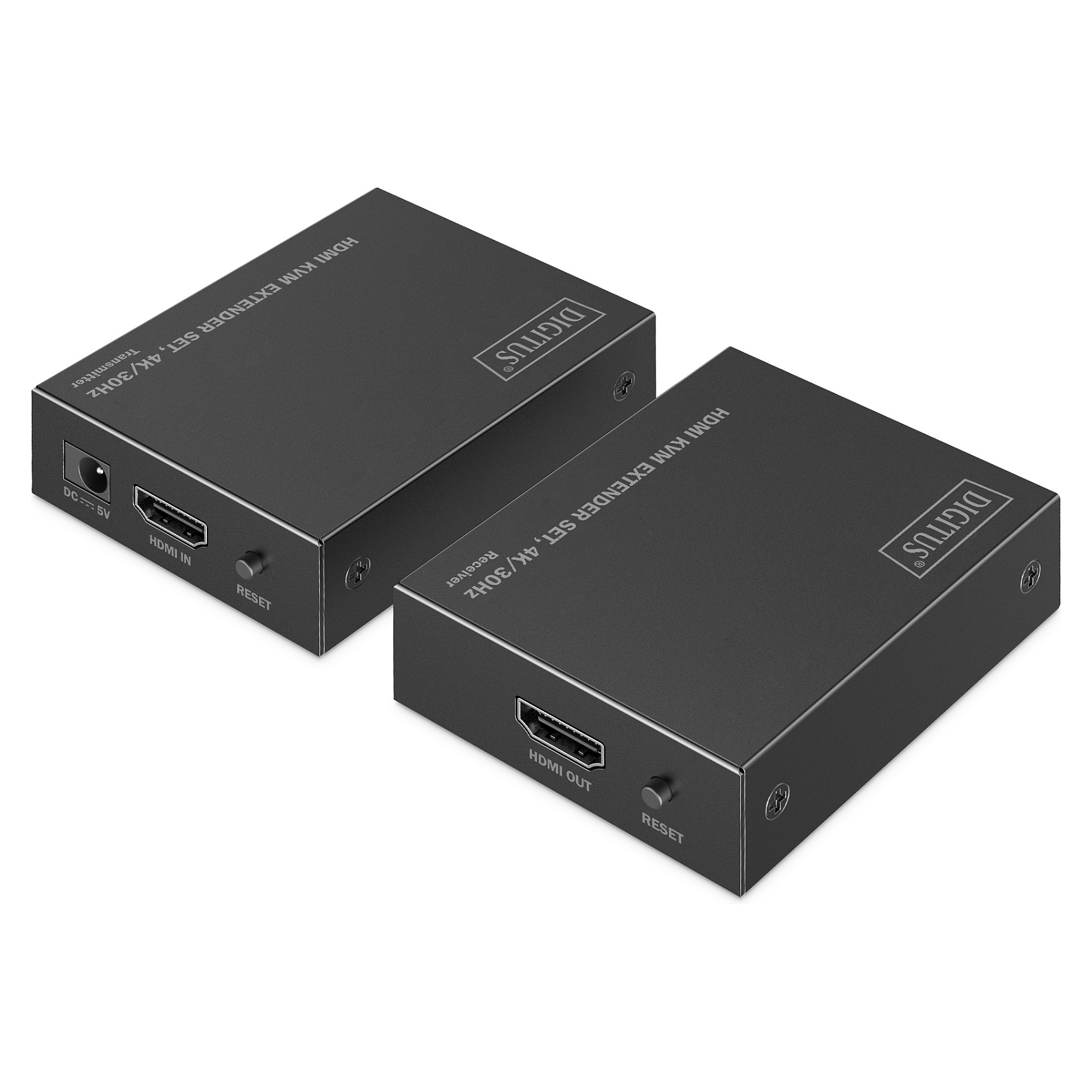

The HDMI KVM Extender Set (4K/30Hz) enables lossless and virtually latency-free (10-20 ms) transmission of AV signals in Ultra HD resolution (4K/30Hz) over a distance of up to 40 meters using a CAT6 or higher-quality network cable. Thanks to the integrated KVM function, the mouse and keyboard can be connected directly to the receiver side, enabling convenient remote control. The system supports both uncompressed HDMI signal transmission in 4K/30Hz over 40 meters and Full HD (1080p/60Hz) transmissions over a distance of up to 70 meters. The ultra-low latency technology ensures virtually lag-free image playback (10-20 ms latency) and a seamless user experience. For easy and flexible installation, the set offers PoC (Power over Cable) support so that only the transmitter unit needs to be supplied with a power supply unit. Thanks to Plug & Play installation, quick and uncomplicated commissioning is guaranteed. The HDMI KVM Extender Set is the ideal solution for professional applications, conference rooms, industrial control systems or home theater setups that require high-resolution signal transmission with additional control options.

Features
Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 70 m
Cable types supported: Cat6
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 30 Hz
Product colour: Black
Material: Metal
Easy to install: Yes
LED indicators: Yes
Electrostatic Discharge (ESD) protection: Yes

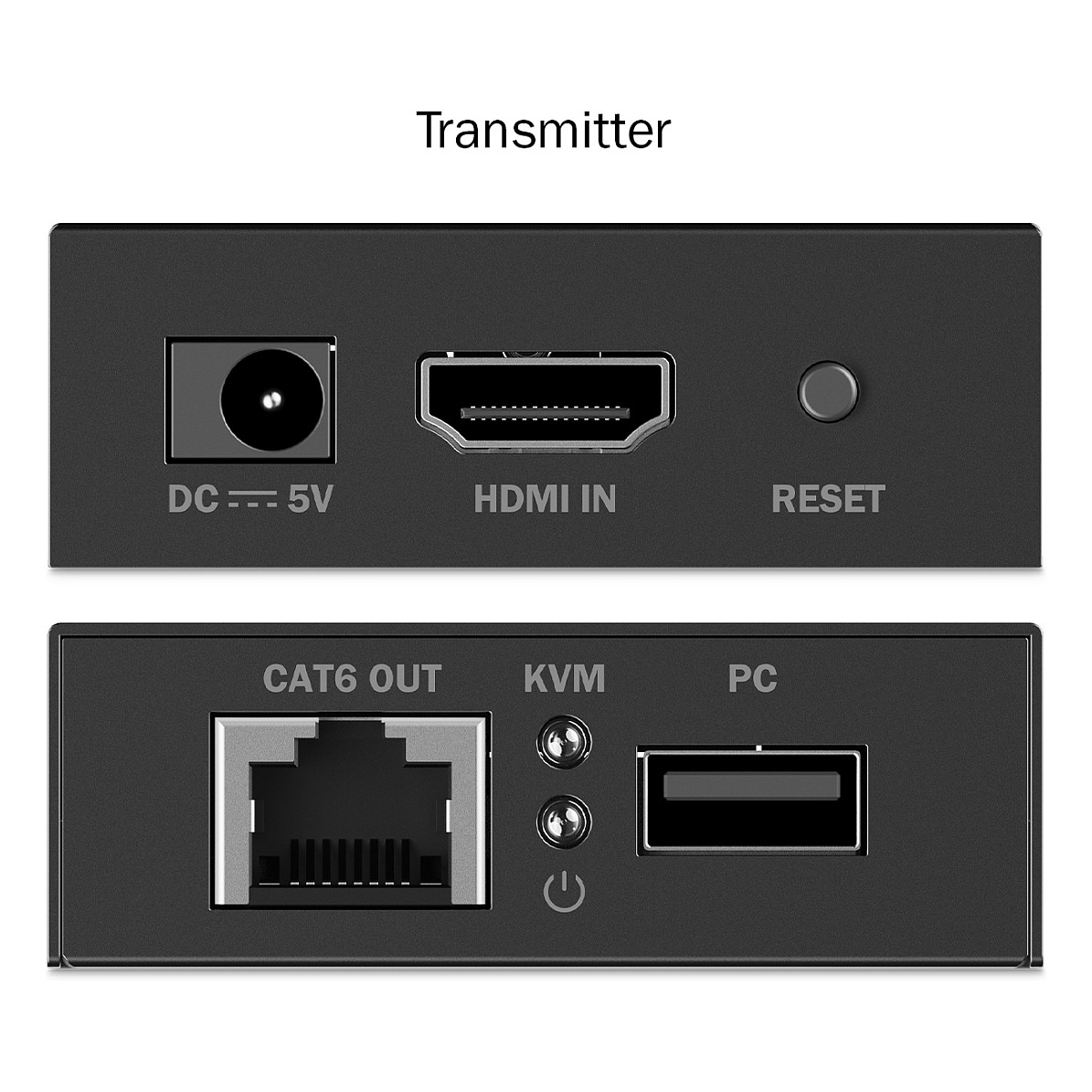

Transmitter
Transmitter video port type: HDMI
Number of displays supported: 1
RJ-45 ports quantity (transmitter): 1
Receiver
Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1
Receiver USB Type-A ports quantity: 2
Ports & interfaces
USB port type: USB Type-A
HDMI version: 1.4
RJ-45 ports quantity: 2
USB 1.1 ports quantity: 3
Power
AC adapter output voltage: 5 V
AC adapter output current: 2 A
Power consumption (transmitter) (max): 5 W
Power consumption (receiver) (max): 5 W
DC-in jack: Yes
Weight & dimensions
Transmitter width: 6 cm
Transmitter depth: 7.5 cm
Transmitter height: 2 cm
Transmitter weight: 123 g
Receiver width: 6 cm
Receiver depth: 7.5 cm
Receiver height: 2 cm
Receiver weight: 123 g
Packaging data
Package width: 117 mm
Package depth: 150 mm
Package height: 77 mm
Packaging content
AC adapter included: Yes
Cables included: USB
Quick installation guide: Yes
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Other features
HDCP: Yes
HDCP version: 1.4
Bandwidth: 10.2 Gbit/s
