KVM SWITCH

Expand the HDMI IP Extender Set (DS-55355) with additional receiver units (253 max.) to play your AV content on multiple displays at the same time

- Expandable via IP: Expand the HDMI IP Extender Set (DS-55355) to up to 253 receivers (displays) - point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Additional connectivity & control: KVM function for connecting mouse & keyboard as well as touch screen support on the receiver side
- Outstanding picture quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 120-170 ms
- Supports CAT6 (or higher) network cables

Expand your existing HDMI IP Extender Set (DS-55355) with additional receiver units and experience a highly flexible and powerful AV solution. Thanks to point-to-multipoint technology, you can transmit content over IP to up to 253 displays - ideal for professional applications in corporate, educational or digital signage environments. Use your existing 1G network infrastructure to transmit signals over unlimited distances or use additional 1G network switches for cascaded expansion. For even more functionality, the receiver offers an integrated KVM function that enables mouse and keyboard connection as well as touch screen support - perfect for flexible control of the signal source. Enjoy outstanding picture quality with a razor-sharp UHD resolution of up to 4K/60Hz (4096x2160p) and a low latency of just 120-170 ms. The connection is made via CAT6 or higher network cables to ensure stable and reliable signal transmission. With the HDMI KVM IP Receiver (DS-55356), you get a scalable solution for professional use that combines maximum flexibility and outstanding performance.

Features
Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 200 m
Cable types supported: Cat6
Maximum digital resolution: 4096 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Black
Material: Metal
Easy to install: Yes
LED indicators: Yes
Electrostatic Discharge (ESD) protection: Yes

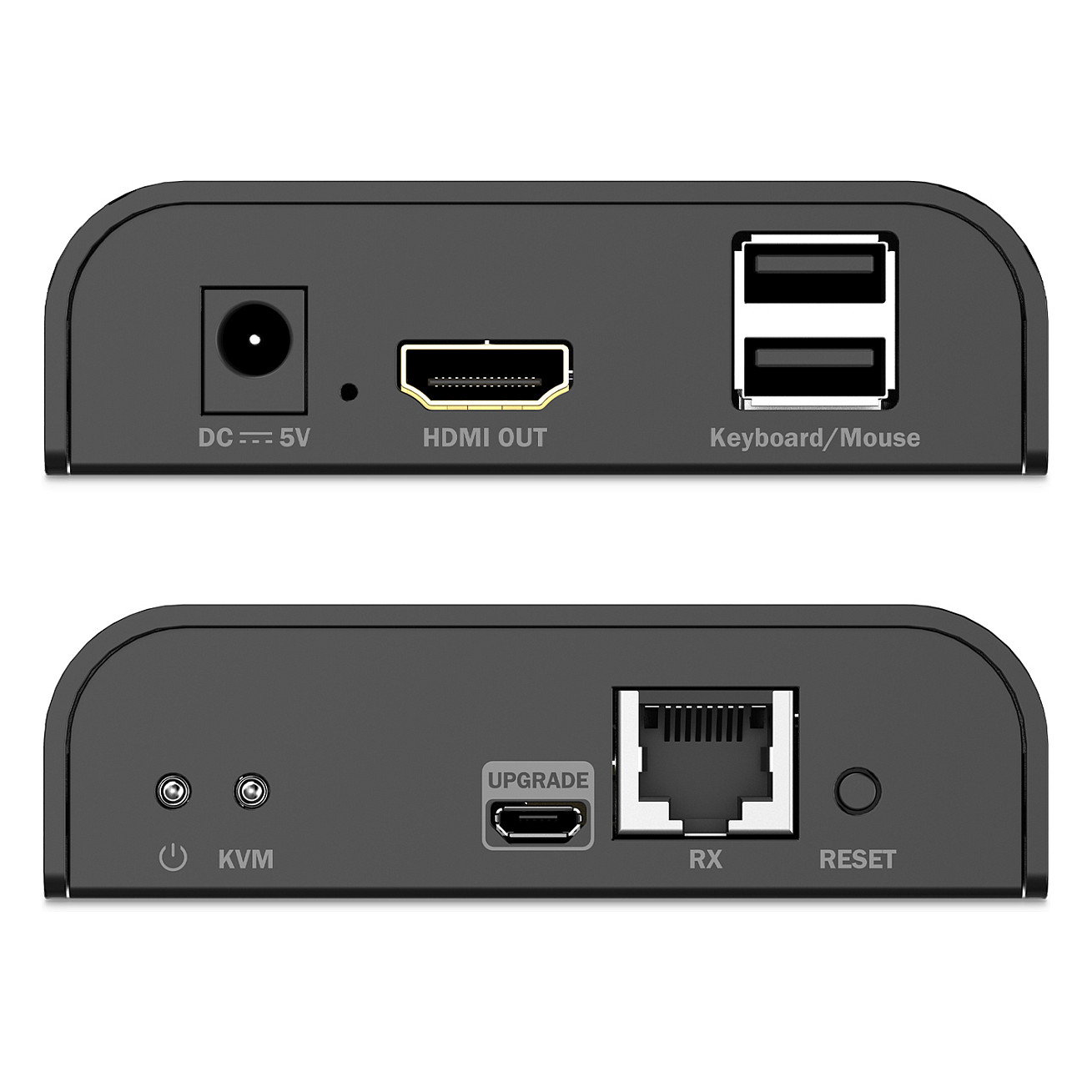

Receiver
Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1
Receiver Micro-USB ports quantity: 1
Receiver USB Type-A ports quantity: 2
Ports & interfaces
USB port type: USB Type-A/Micro-USB
USB 2.0 ports quantity: 2
HDMI version: 2.0
USB data transfer rates: 480 Mbit/s
RJ-45 ports quantity: 1
Power
AC adapter output voltage: 5 V
AC adapter output current: 1 A
Power consumption (transmitter) (max): 3.5 W
Power consumption (receiver) (max): 2.5 W
DC-in jack: Yes
Weight & dimensions
Receiver width: 8.95 cm
Receiver depth: 10.9 cm
Receiver height: 2.63 cm
Receiver weight: 243 g
Packaging content
AC adapter included: Yes
Cables included: USB
Quick installation guide: Yes
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Other features
HDCP: Yes
HDCP version: 1.4/2.2
Bandwidth: 18 Gbit/s
