DIGITUS USB Extender 4xUSB-A 150m mit CAT6 schwarz
Product code: 24435722 // MPN: DA-73120 // EAN: 4016032502104
New entry
€155,00 (inc. VAT)
Available from 4 to 10 days (18 pcs available)
Similar products
STARTECH.COM 4-Port KVM Switch Dual Monitor DisplayPort 4K 60Hz 2x USB 3.0 2x USB 2.0 Hotkey/Drucktasten KVM Umschalter 4 PC 2monito
Code: 22527722
€1.269,85
Available from 4 to 10 daysOvercome the technical limitations of USB cable lengths and reliably connect up to four USB devices over distances of up to 150m with a CAT 6 cable (or higher). The Digitus 150m USB 2.0 extender is ideal for offices, industry and conferences.
- USB extension up to 150m via CAT 6 or higher
- Cascading: Extension up to 300m (2x 150m) using a network switch

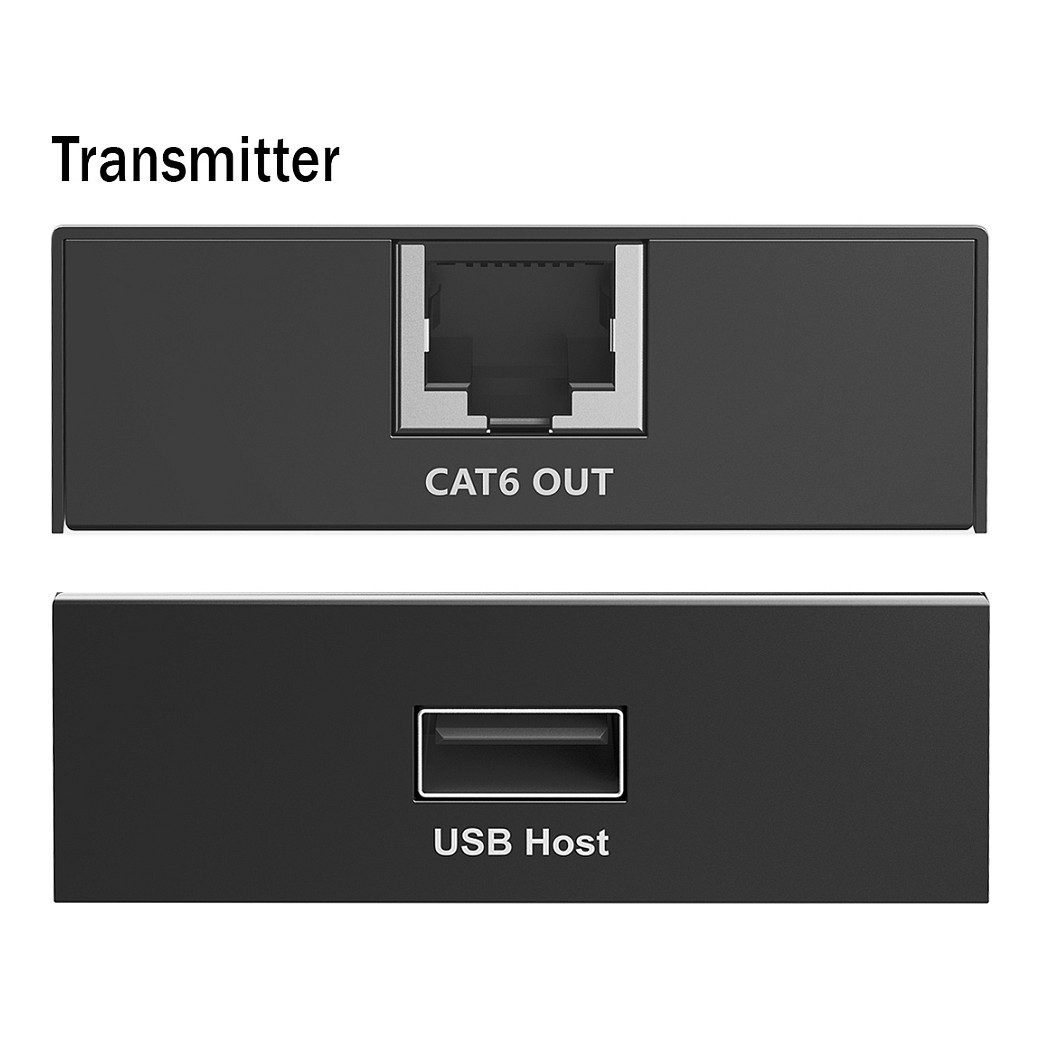

- Transmitter unit is supplied with power via the host PC - No additional power supply unit required

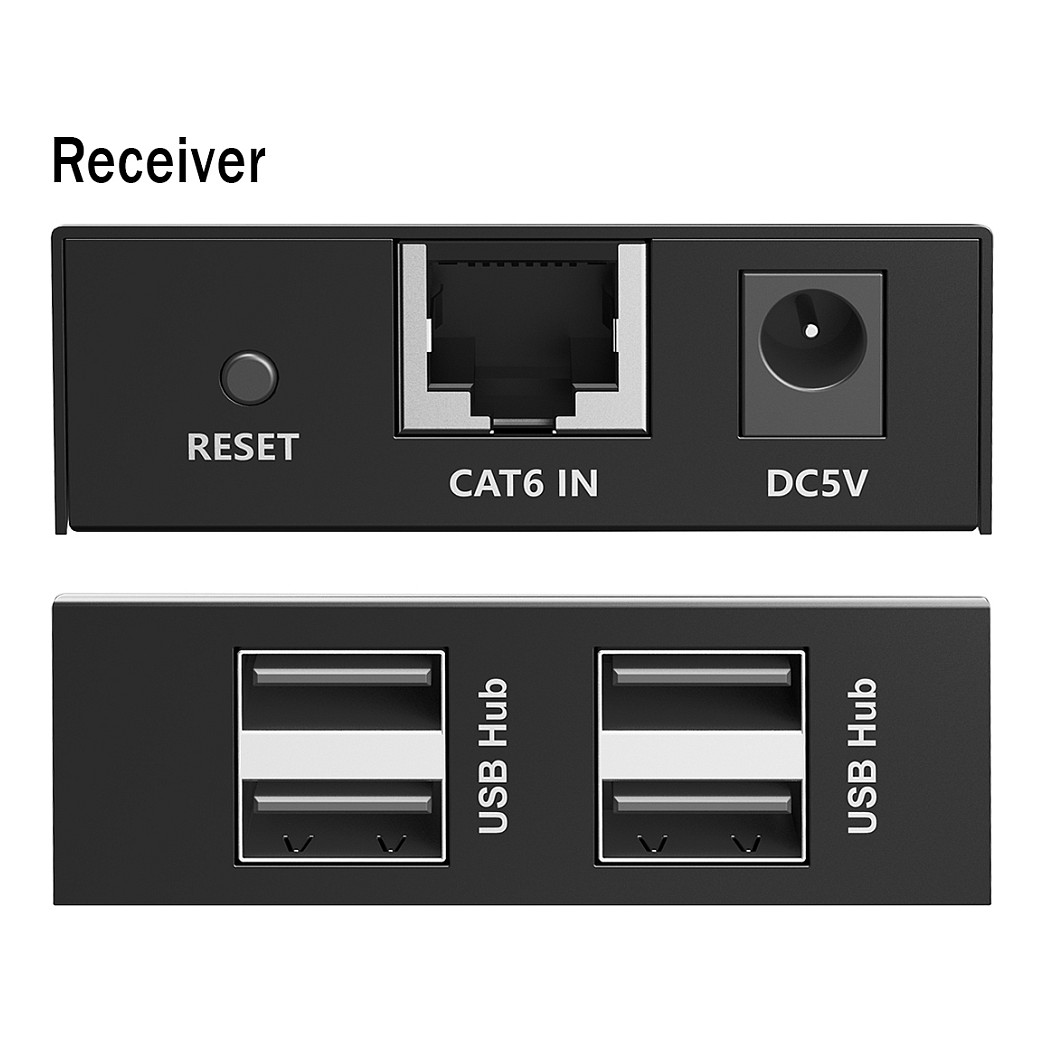

- Multifunctional USB hub: Supports the connection of up to four USB devices simultaneously
- USB 2.0: Supports transfer rates of up to 480 Mbps, ideal for numerous USB devices such as printers, cameras, keyboards and scanners
- Safe protection: integrated ESD protection (up to 8kV) and overvoltage protection for your devices
- Plug & Play: No software required. Simply connect and use immediately
- Robust and versatile: Ideal for demanding environments such as industry or large offices thanks to the metal housing
This USB extender offers a reliable solution for transmitting USB signals over distances of up to 150 meters using a CAT 6 (or higher) network cable (not included) without signal loss. Ideal for use in large offices, conference rooms, surveillance systems or industrial environments where longer USB connections are required. The USB 2.0 standard enables transfer rates of up to 480 Mbps. This means that nothing stands in the way of the smooth connection of a wide range of USB devices such as cameras, printers, scanners, keyboards, mice and USB sticks. The extender offers maximum flexibility thanks to its four USB-A inputs, allowing multiple devices to be operated simultaneously - ideal for working environments with different peripheral devices. The plug & play design enables easy installation without the need for additional drivers. In addition, the robust metal housing ensures durability and stability, even in demanding industrial environments. Say goodbye to the limitations of conventional USB cables - with this 150m USB 2.0 extender you can place your USB devices where you need them without having to move the computer.
Technical details
Type: Console transmitter & receiver
Data transfer rate: 1000 Mbit/s
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Maximum transfer distance: 150 m
Product colour: Black
I/O ports: 4x USB 2.0 A in1x USB 2.0 A Out
Housing material: Aluminium, Metal
LED indicators: Yes
Cable types supported: Cat6
Plug and Play: Yes
Ports & interfaces
USB 2.0 ports quantity: 5
USB 2.0 Type-A ports quantity: 5
RJ-45 ports quantity: 2
DC-in jack: Yes
Weight & dimensions
Width: 60 mm
Depth: 76 mm
Height: 21 mm
Transmitter weight: 123 g
Receiver weight: 128 g
Package width: 117 mm
Package depth: 150 mm
Package height: 77 mm
Package weight: 470 g
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Packaging content
Cables included: USB Type-A
Manual: Yes
Quick start guide: Yes
Power
Power source type: DC
Power consumption (max): 3.5 W
Power consumption (typical): 2 W
Input voltage: 5 V
Input current: 1 A
Output voltage: 5 V
Output current: 1 A
- USB extension up to 150m via CAT 6 or higher
- Cascading: Extension up to 300m (2x 150m) using a network switch
- Transmitter unit is supplied with power via the host PC - No additional power supply unit required
- Multifunctional USB hub: Supports the connection of up to four USB devices simultaneously
- USB 2.0: Supports transfer rates of up to 480 Mbps, ideal for numerous USB devices such as printers, cameras, keyboards and scanners
- Safe protection: integrated ESD protection (up to 8kV) and overvoltage protection for your devices
- Plug & Play: No software required. Simply connect and use immediately
- Robust and versatile: Ideal for demanding environments such as industry or large offices thanks to the metal housing
This USB extender offers a reliable solution for transmitting USB signals over distances of up to 150 meters using a CAT 6 (or higher) network cable (not included) without signal loss. Ideal for use in large offices, conference rooms, surveillance systems or industrial environments where longer USB connections are required. The USB 2.0 standard enables transfer rates of up to 480 Mbps. This means that nothing stands in the way of the smooth connection of a wide range of USB devices such as cameras, printers, scanners, keyboards, mice and USB sticks. The extender offers maximum flexibility thanks to its four USB-A inputs, allowing multiple devices to be operated simultaneously - ideal for working environments with different peripheral devices. The plug & play design enables easy installation without the need for additional drivers. In addition, the robust metal housing ensures durability and stability, even in demanding industrial environments. Say goodbye to the limitations of conventional USB cables - with this 150m USB 2.0 extender you can place your USB devices where you need them without having to move the computer.
Technical details
Type: Console transmitter & receiver
Data transfer rate: 1000 Mbit/s
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Maximum transfer distance: 150 m
Product colour: Black
I/O ports: 4x USB 2.0 A in1x USB 2.0 A Out
Housing material: Aluminium, Metal
LED indicators: Yes
Cable types supported: Cat6
Plug and Play: Yes
Ports & interfaces
USB 2.0 ports quantity: 5
USB 2.0 Type-A ports quantity: 5
RJ-45 ports quantity: 2
DC-in jack: Yes
Weight & dimensions
Width: 60 mm
Depth: 76 mm
Height: 21 mm
Transmitter weight: 123 g
Receiver weight: 128 g
Package width: 117 mm
Package depth: 150 mm
Package height: 77 mm
Package weight: 470 g
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Packaging content
Cables included: USB Type-A
Manual: Yes
Quick start guide: Yes
Power
Power source type: DC
Power consumption (max): 3.5 W
Power consumption (typical): 2 W
Input voltage: 5 V
Input current: 1 A
Output voltage: 5 V
Output current: 1 A
