KVM SWITCH

USB-C & USB-A/HDMI Desktop KVM Switch | 2 Port | 4K 60Hz HDMI 2.0

This 2-port USB-C™ / USB-A KVM enables you to easily switch between a USB Type-C or Thunderbolt™ 3 desktop/laptop computer and a USB-A and HDMI desktop/laptop computer, using a single keyboard, HDMI® monitor and mouse.

Easy to Setup and Use

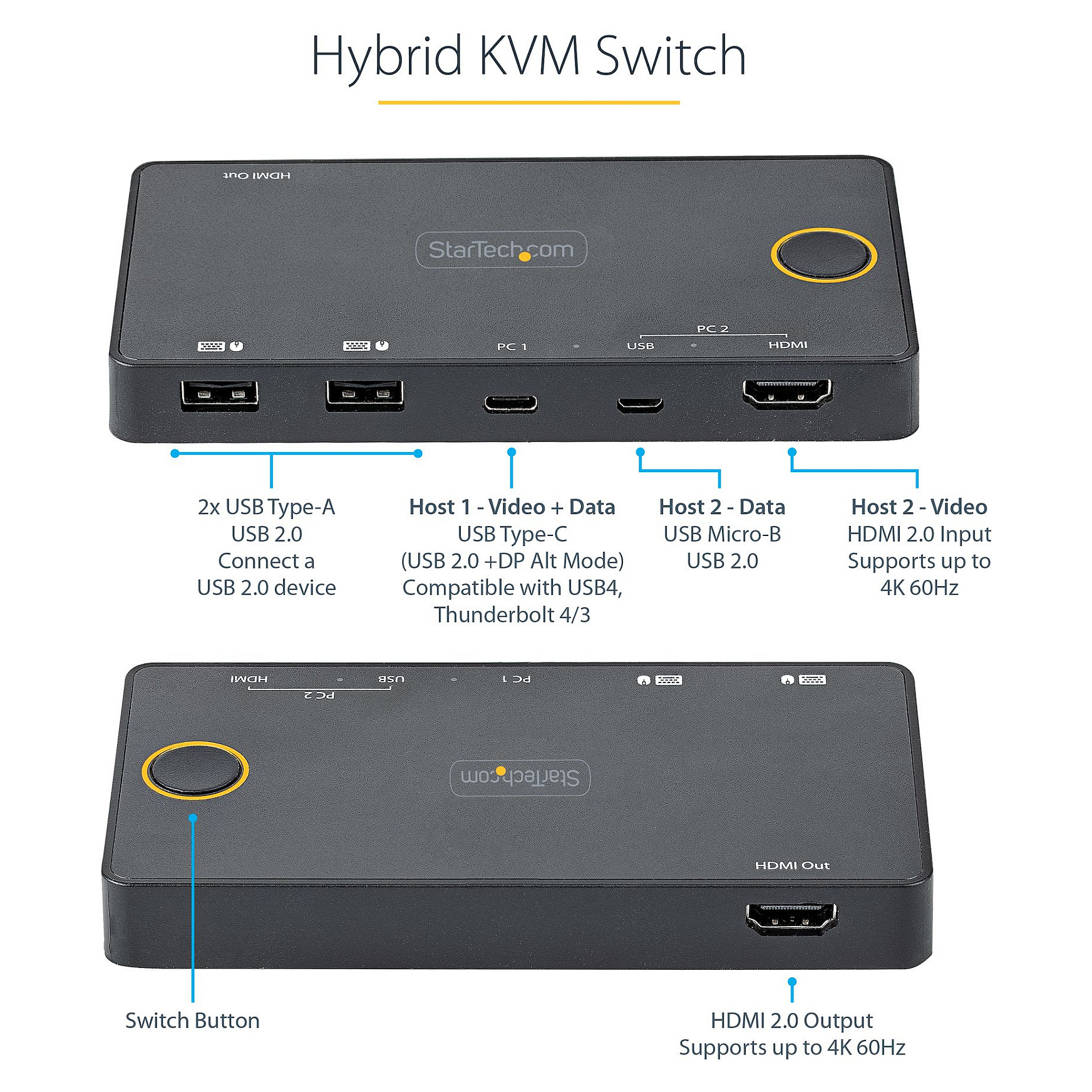

Utilizing USB-C with DP alt-mode and USB-A and HDMI this compact KVM switch only requires three host cable connections, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.

PC 1

PC 2

1x USB Type-C

(Video + Data)

1x HDMI 2.0

+

1x Micro USB-B

For easy operation, the KVM features a single button that toggles between connected computers.

Supports 4K 60Hz Resolutions

The USB-C KVM switch supports UHD resolutions up to 4K (3840 x 2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.

Compact and Portable

Along with the USB-C design that ensures cabling requirements are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.

Guaranteed Compatibility

The KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.

The SV221HUC4K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage


Ports & interfaces
Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPort version: 1.2
USB connector type: Micro-USB B, USB Type-A, USB Type-C
Performance
HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Video bandwidth: 60 Hz
Data transfer rate (max): 0.48 Gbit/s
Daisy chain: No
Chipset: Parade - PS176, VLI - VL170, Terminus - FE1.1S
Audio channels: 7.1
Number of displays supported: 1
Design
Rack mounting: No
Product colour: Black
LED indicators: Yes
Push button: Yes
Hot keys: No
Mean time between failures (MTBF): 50000 h
Display
Built-in display: No
On Screen Display (OSD): No
Power
USB powered: Yes
Operational conditions
Operating temperature (T-T): 5 - 55 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 20 - 80%
Weight & dimensions
Width: 138 mm
Depth: 70 mm
Height: 15 mm
Weight: 200 g
Packaging data
Package width: 120 mm
Package depth: 172 mm
Package height: 85 mm
Package weight: 250 g
Packaging content
Cables included: HDMI, Micro-USB, USB Type-C to USB Type-C
Quick installation guide: Yes
Other features
IP control: No
Logistics data
Harmonized System (HS) code: 85176200
Master (outer) case width: 410 mm
Master (outer) case length: 470 mm
Master (outer) case height: 370 mm
Products per master (outer) case: 20 pc(s)
