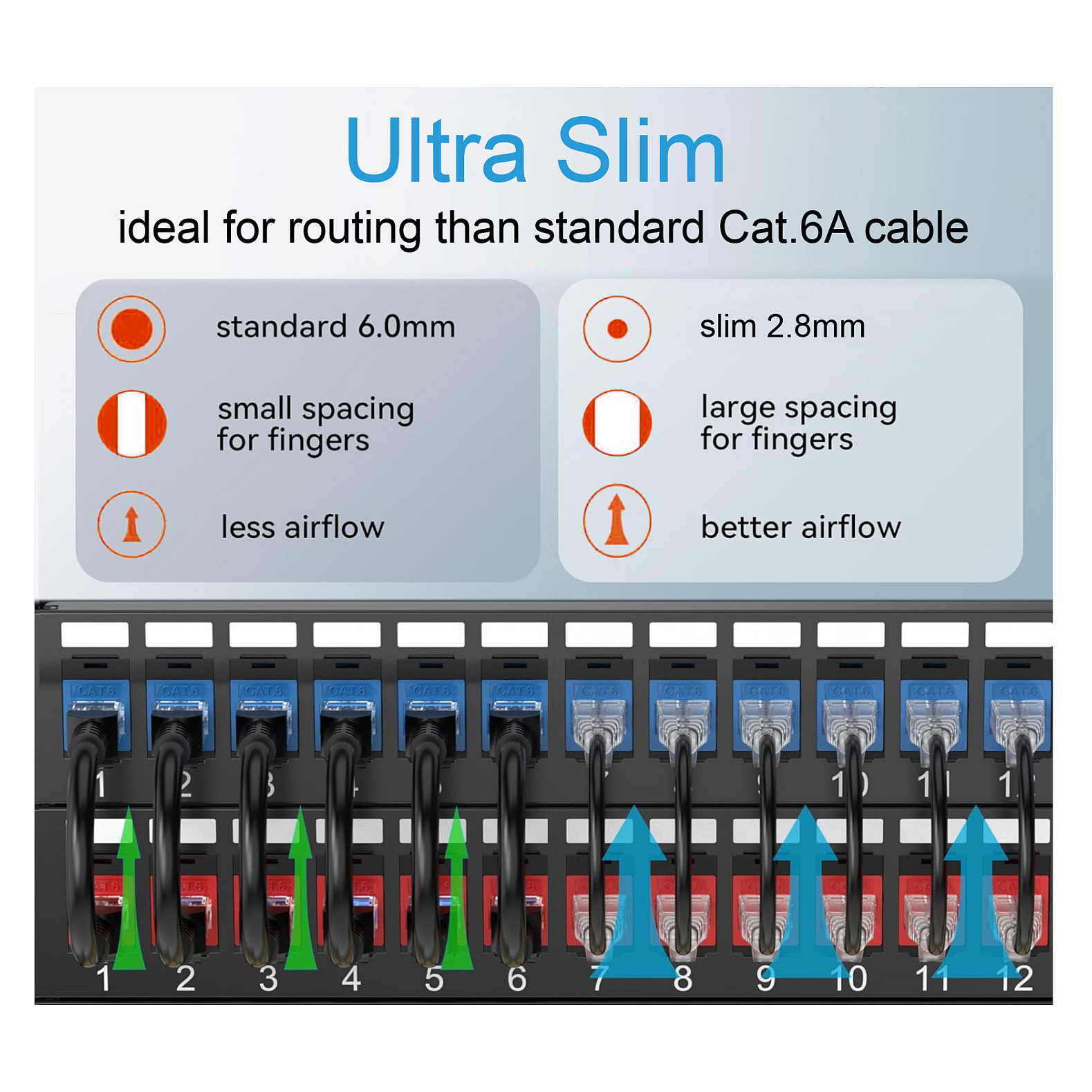

The Cat.6A U/UTP Slim Patch Cable is a high-performance networking solution designed for modern data centers, enterprise networks, and high-density installations. Featuring a slim, space-saving design with a reduced diameter (typically around 32AWG), this cable helps improve airflow and cable management in crowded racks or patch panels without compromising performance.

Engineered to support 10 Gigabit Ethernet and frequencies up to 500 MHz, the Cat.6A U/UTP Slim Patch Cable ensures fast, reliable data transmission with minimal crosstalk and signal loss. The unshielded twisted pair (U/UTP) construction provides excellent performance in low to moderate EMI environments, while the high-quality, stranded copper conductors offer durability and flexibility for frequent reconfigurations.

Features
Product colour: Grey
Cable length: 0.15 m
Cable standard: Cat6a
Cable shielding: U/UTP (UTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor type: Stranded
Conductor material: Copper
Cabling technology: 10GBase-T
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
AWG wire size: 32/7
Data transfer rate: 10000 Mbit/s
Frequency: 500 MHz
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Active PoE, PoE+
Molded cable boot: Yes
Plug and Play: Yes
Country of origin: China
Certificates
Compliance certificates: RoHS
Weight & dimensions
Width: 11 mm
Depth: 15 mm
Height: 150 mm
Outer diameter: 2.8 mm
Weight: 3.4 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 100 mm
Package depth: 175 mm
Package height: 0.0700 mm
Package weight: 6 g
Package type: Polybag
Logistics data
Master (outer) case width: 380 mm
Master (outer) case length: 290 mm
Master (outer) case gross weight: 4.3 kg
Master (outer) case height: 350 mm
Products per master (outer) case: 600 pc(s)
