Future-oriented standards and high-end quality for your network.

- 10GBit Ethernet
- 500 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Cca

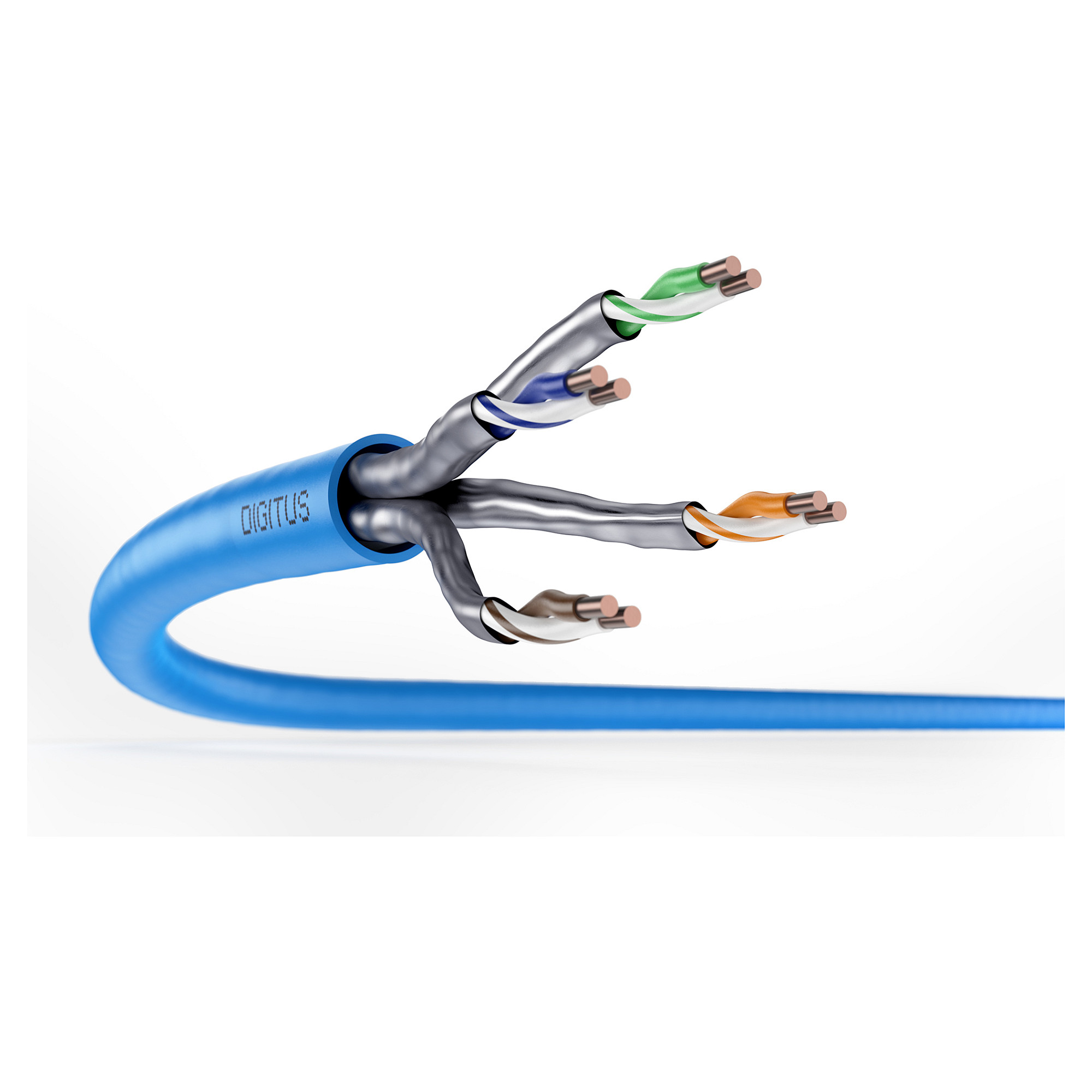

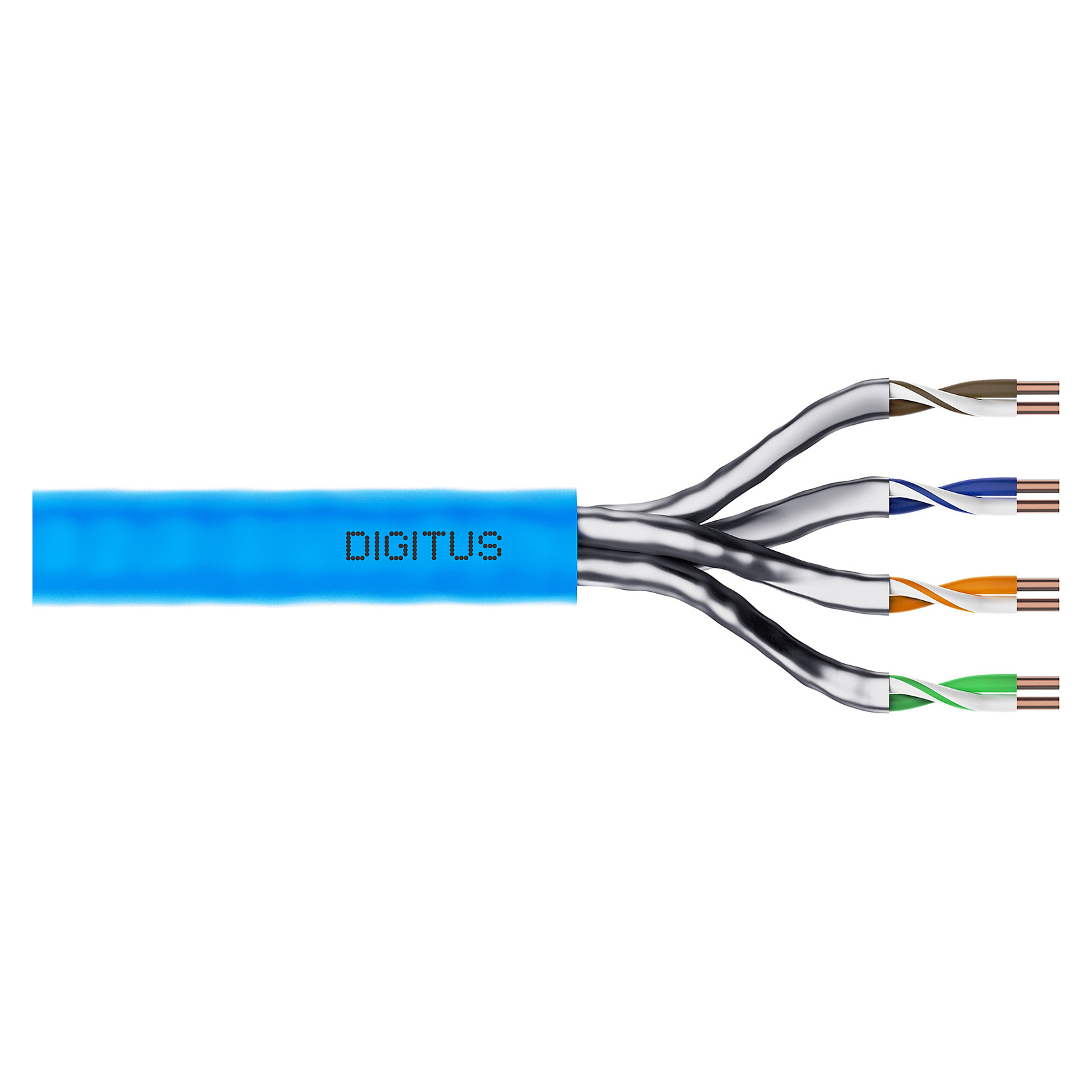

The Digitus® Cat.6A U/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Cca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1.

Features
Product colour: Blue
Cable length: 305 m
Cable standard: Cat6a
Cable shielding: U/FTP (STP)
Connector 1: No
Connector 2: No
Connector 1 gender: No
Connector 2 gender: No
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor type: Solid
Conductor material: Copper
Cable fire class: Cca
AWG wire size: 23/1
Frequency: 500 MHz
Plug and Play: Yes
Operational conditions
Operating temperature (T-T): -20 - 75 °C
Storage temperature (T-T): -20 - 60 °C
Sustainability
Doesn't contain: Halogen
Weight & dimensions
Outer diameter: 7.6 mm
Packaging content
Quantity per pack: 1 pc(s)
