Design-capable, shielded, tool-free and intelligent cable manager

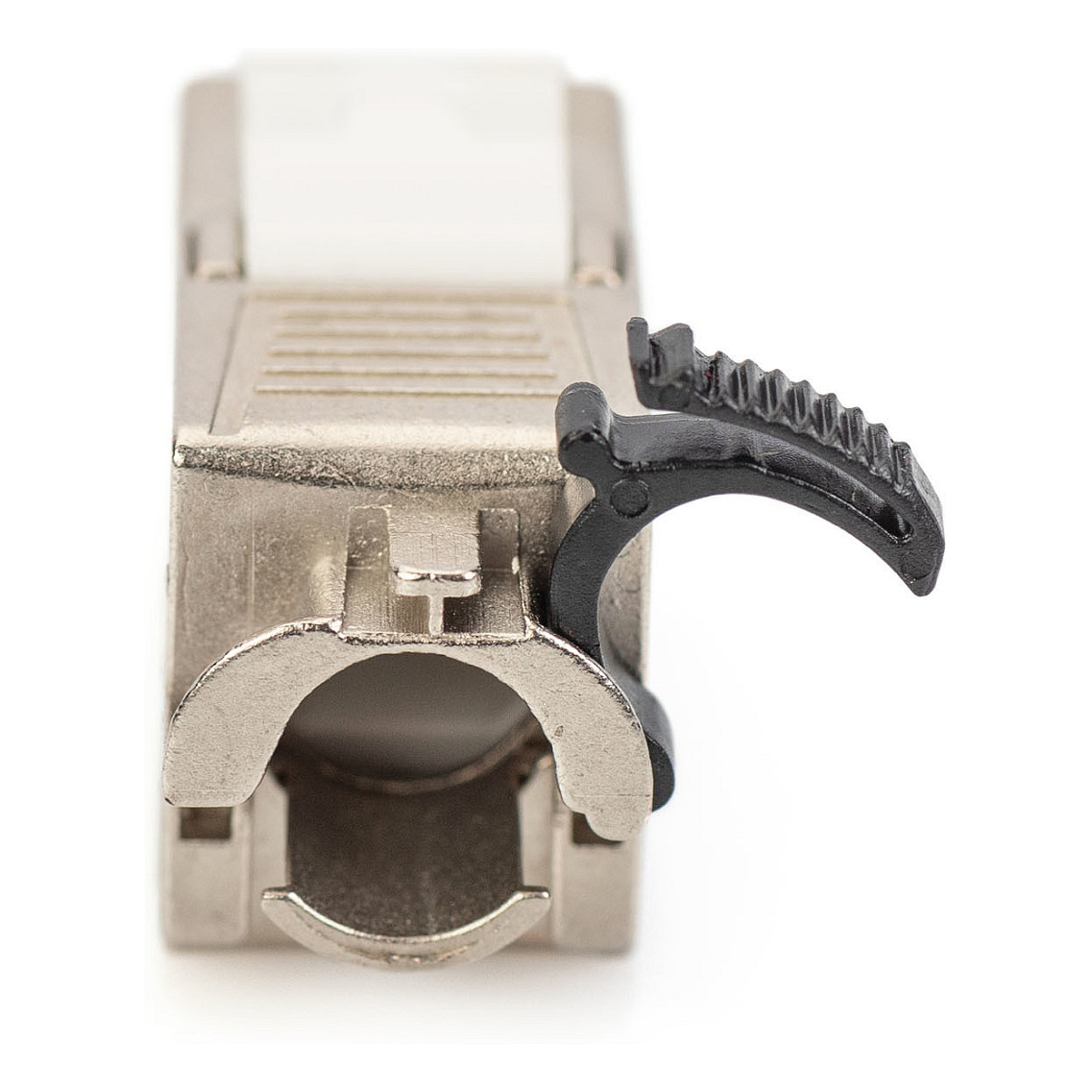

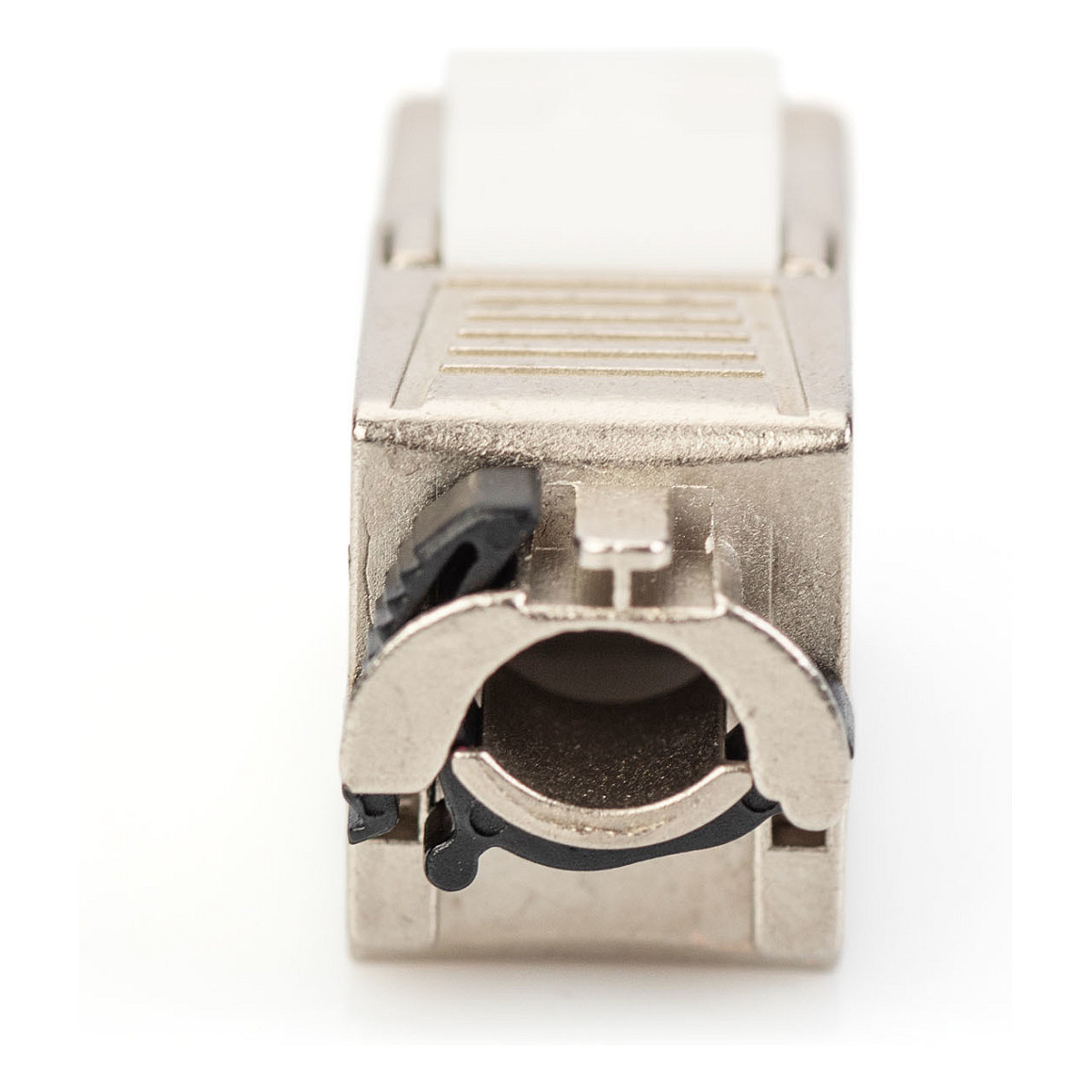

- Strain relief and cable fixing using intelligent cable manager
- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes
- CAT 6A with LSA insulation displacement connectors
- Dust protection cap for RJ45 socket
- GHMT certified
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

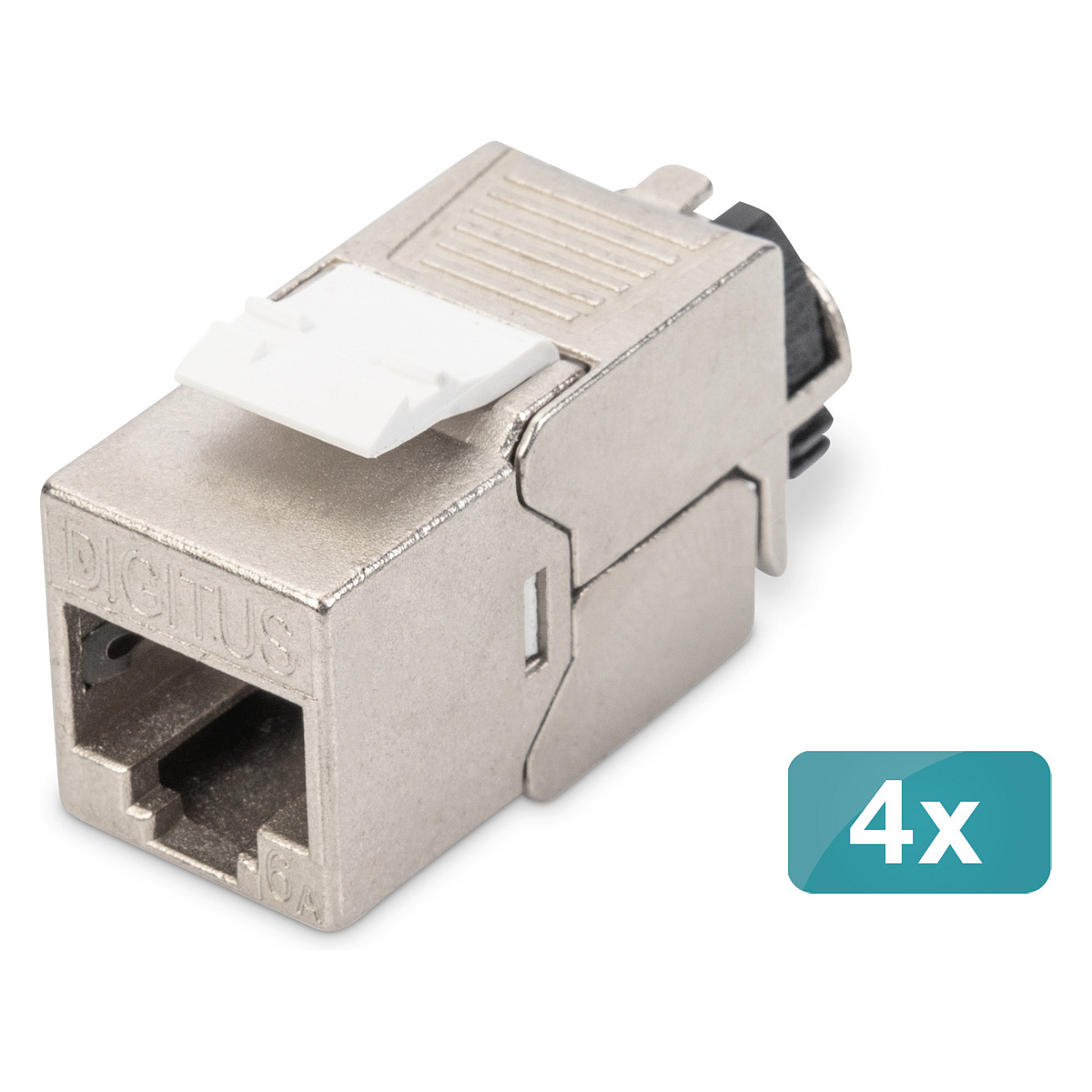

The shielded CAT 6A Keystone module set DN-93617-4 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules have 360° shield contacting, a locking lever and a reclosable, intelligent cable manager for strain relief and cable fixing. The compact design allows for row installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded in accordance with EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Features
Construction type: Flat
Product colour: Silver
Connector 1: RJ-45
Connector 2: LSA
Connector 1 gender: Female
Connector 2 gender: Female
Cabling technology: 10GBase-T
Connector contacts plating: Gold
AWG wire size: 26/7
Cable types supported: Cat6a
Housing material: Zinc
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Frequency: 500 MHz
Power over Ethernet (PoE): Yes
Magnetically shielded: Yes
Weight & dimensions
Width: 14.5 mm
Depth: 34.5 mm
Height: 21 mm
Weight: 19.5 g
Packaging content
Quantity per pack: 4 pc(s)
