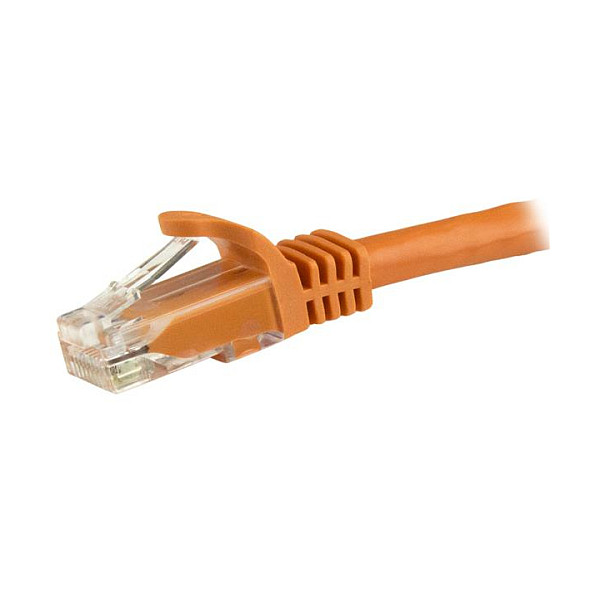

1.5 m CAT6 Patch Cable | Snagless | 100% Copper Wire | Orange | ETL Verified

This CAT6 cable meets all Category 6 cable specifications, to deliver a reliable Gigabit network connection.

Protect Your Equipment

This CAT6 patch cable is built using 100% copper wire and are tested to comply with ANSI/TIA 568 C.2 Category 6 requirements. We don’t use copper-clad aluminum (CCA) wire, which is subject to problems like weak power delivery, heat buildup, equipment damage and possibly fire.

The 50-micron gold connectors deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.

High-Quality Construction

The CAT6 cable is manufactured using high-quality copper conductors and carefully constructed and tested to keep Near-End Crosstalk (NEXT) well within acceptable limits. The patch cable is constructed with 24 AWG copper wire, to ensure peak performance for demanding Ethernet applications such as Power-over-Ethernet and 4K or 1080p video streaming.

Easily Install Your Network Cables

For trouble-free cable runs, this durable cable feature snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.

The CAT6 Ethernet cable also features molded boots which offer strain relief by stopping the RJ45 connectors from bending at sharp angles. This reduces the risk of cable damage, which could decrease network connectivity and performance.

N6PATC150CMOR is backed by a StarTech.com lifetime warranty for guaranteed reliability.

Features
Product colour: Orange
Cable length: 1.5 m
Cable standard: Cat6
Cable shielding: U/UTP (UTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Conductor type: Stranded
Conductor material: Copper
Cable rating: CMG (CM)
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Gigabit Ethernet
AWG wire size: 24
Data transfer rate: 1000 Mbit/s
Frequency: 650 MHz
Power over Ethernet (PoE): Yes
Snagless cable boot: Yes
Plug and Play: Yes
Certificates
Compliance certificates: RoHS
Certification: CE, ETL, REACH
Weight & dimensions
Width: 11.6 mm
Height: 8.2 mm
Weight: 70 g
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package width: 220 mm
Package depth: 200 mm
Package weight: 80 g
Logistics data
Harmonized System (HS) code: 84733080
Master (outer) case width: 370 mm
Master (outer) case length: 405 mm
Master (outer) case height: 270 mm
Products per master (outer) case: 120 pc(s)
