Install Erika Violet OM4 fiber cables for easy identification and streamlined cable management

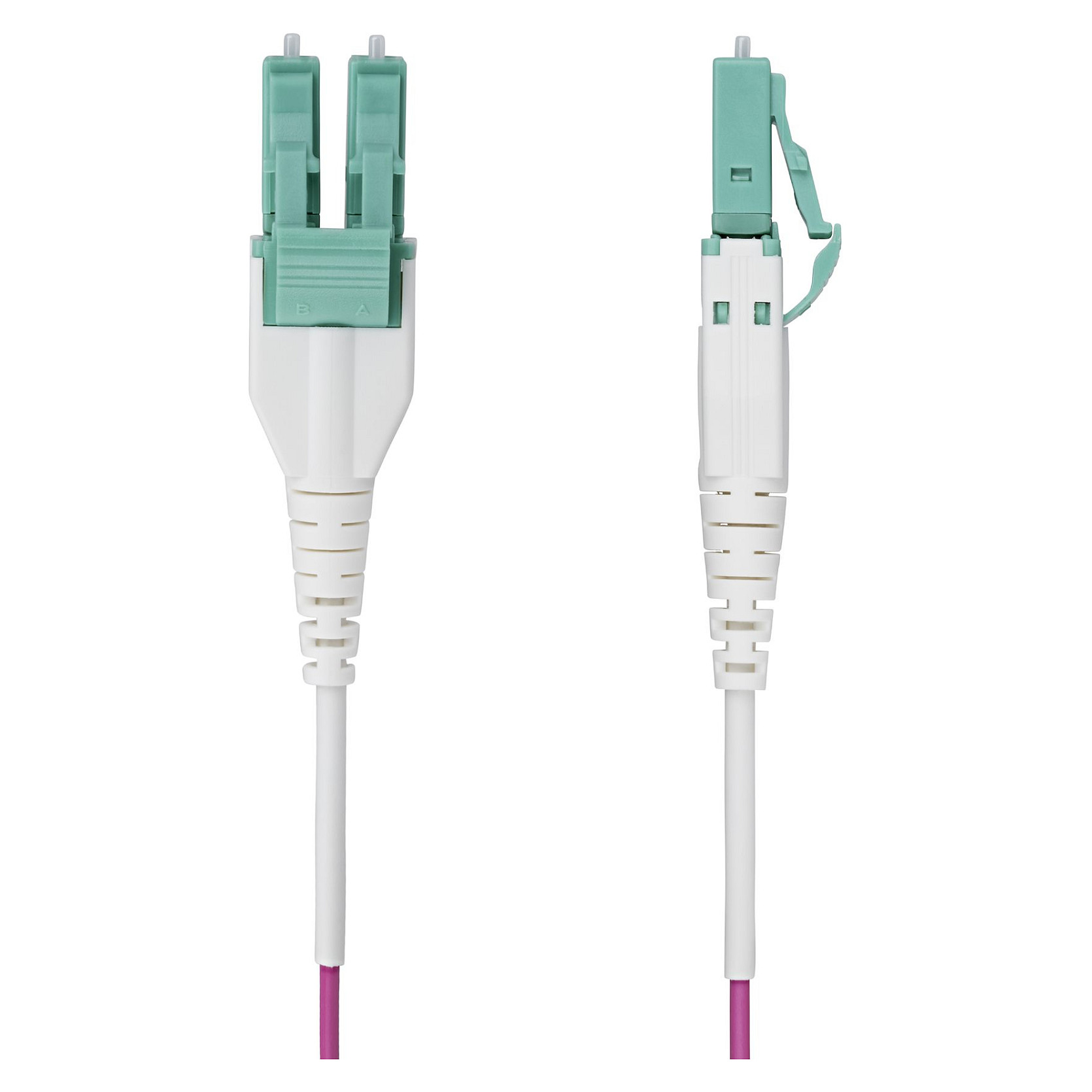

This OM4 LC to LC Multimode Duplex Fiber Optic Patch cable delivers reliable connectivity across 40 and 100 Gigabit networks. The TIA-standard Erika Violet jacket clearly distinguishes OM4 from Aqua OM3/OM4 cabling, eliminating guesswork in critical network setups. The compact uniboot connector design enables easy insertion and removal in high-density installations.

Engineered for Optimal Performance

Built with laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules maintain accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.

OFNR Riser Rated

Housed in an OFNR (Optical Fiber Nonconductive Riser) flame-retardant jacket, this Riser-rated OM4 fiber cable is engineered to minimize vertical flame propagation between building floors. It enables safer cable installations in riser spaces and vertical shafts within commercial buildings, supporting compliance with fire codes in multi-story structures and other regulated environments.

Wide Compatibility

This multimode 50/125µm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, facilitating reliable data transmission in legacy fiber environments.

StarTech.com fiber cables undergo rigorous testing to confirm operation within strict optical insertion loss limits, guaranteeing compatibility and 100% reliability.

The StarTech.com Advantage


Features
Cable length: 20 m
Fibre optic type: OM4
Cable shape: Round
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Connector polish type: PC
Cable type: OFNR
Product colour: Violet
Full duplex: Yes
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Wavelengths supported: 1300,850 nm
Data transfer rate: 100 Gbit/s
Jacket material: Polyvinyl chloride (PVC)
Certificates
Compliance certificates: RoHS, CE
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -20 - 60 °C
Weight & dimensions
Cable diameter: 1.6 mm
Weight: 159.4 g
Bending radius: 7.5 mm
Packaging data
Package width: 300 mm
Package depth: 250 mm
Package height: 20 mm
Package weight: 159.4 g
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Master (outer) case width: 420 mm
Master (outer) case length: 420 mm
Master (outer) case height: 270 mm
Products per master (outer) case: 64 pc(s)
