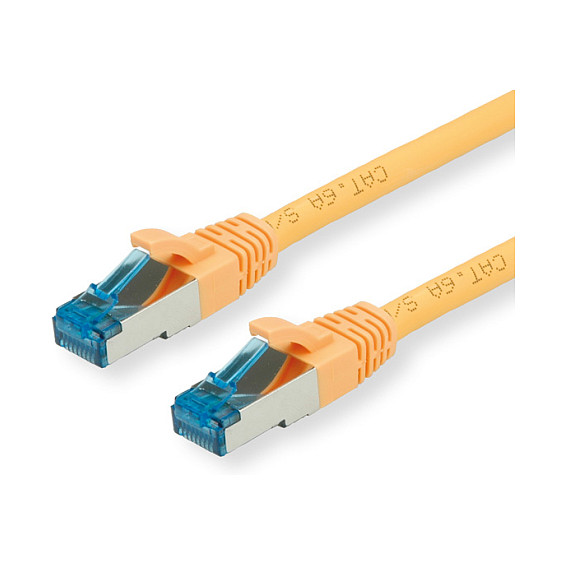

The cheap solution for data transfer rates of up to 10 Gbit/s and a bandwidth of 500 MHz. Patch cable for networking connections between devices. Prepared shielded Twisted Pair cable (PiMF) with RJ-45 connectors on both ends. Durable due to moulded kink protection. Flexible cable, suitable for narrow bending. Impedance: 100 Ohm. Contact settings 1:1, in accordance with the EIA/TIA 568 standard. Construction: 8 lines, pairs shielded with aluminium foil, complete braided shielding.


Features
Product colour: Yellow
Cable length: 7 m
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Low smoke zero halogen (LSZH)
Conductor type: Stranded
Cable class: Ea
Cabling technology: 10GBase-T
AWG wire size: 27
Data transfer rate: 10000 Mbit/s
Frequency: 500 MHz
Certificates
Compliance certificates: RoHS
Other features
Input impedance: 100 Ω
Cable diameter: 6.2 mm
