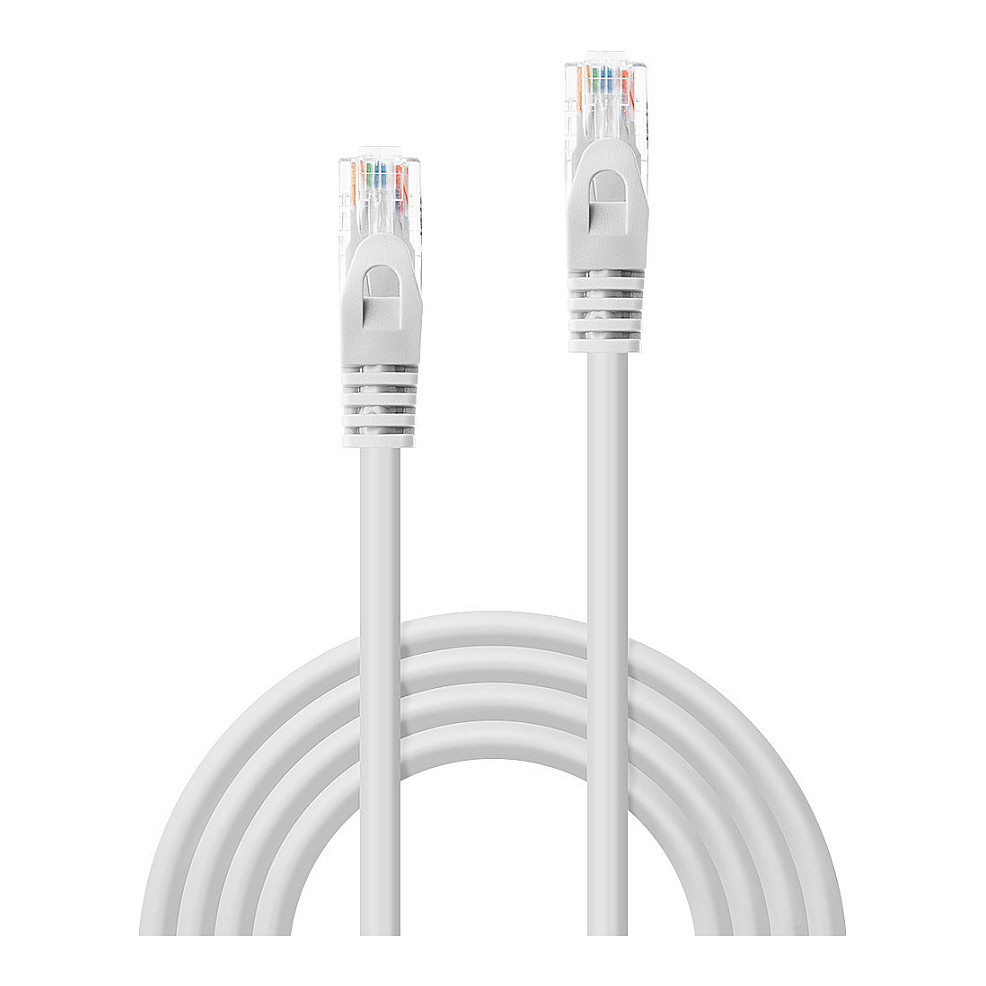

Cat.6 U/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the skin effect , while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m.
Available colours: Grey, Blue, Red, Black, White.

Features
Product colour: White
Cable length: 0.3 m
Cable standard: Cat6
Cable shielding: U/UTP (UTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Conductor material: Copper-Clad Aluminium (CCA)
Cabling technology: 10/100/1000Base-T(X)
AWG wire size: 26
Frequency: 250 MHz
Bend radius (min): 6.9 cm
Operational conditions
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 75 °C
Certificates
Certification: RoHS, REACH, California Proposition 65
Weight & dimensions
Outer diameter: 5.8 mm
Connector 1 dimensions (WxDxH): 11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH): 11.6 x 22.8 x 8.3 mm
Packaging data
Package type: Polybag
Other features
Category: 6
Logistics data
Harmonized System (HS) code: 84733080
