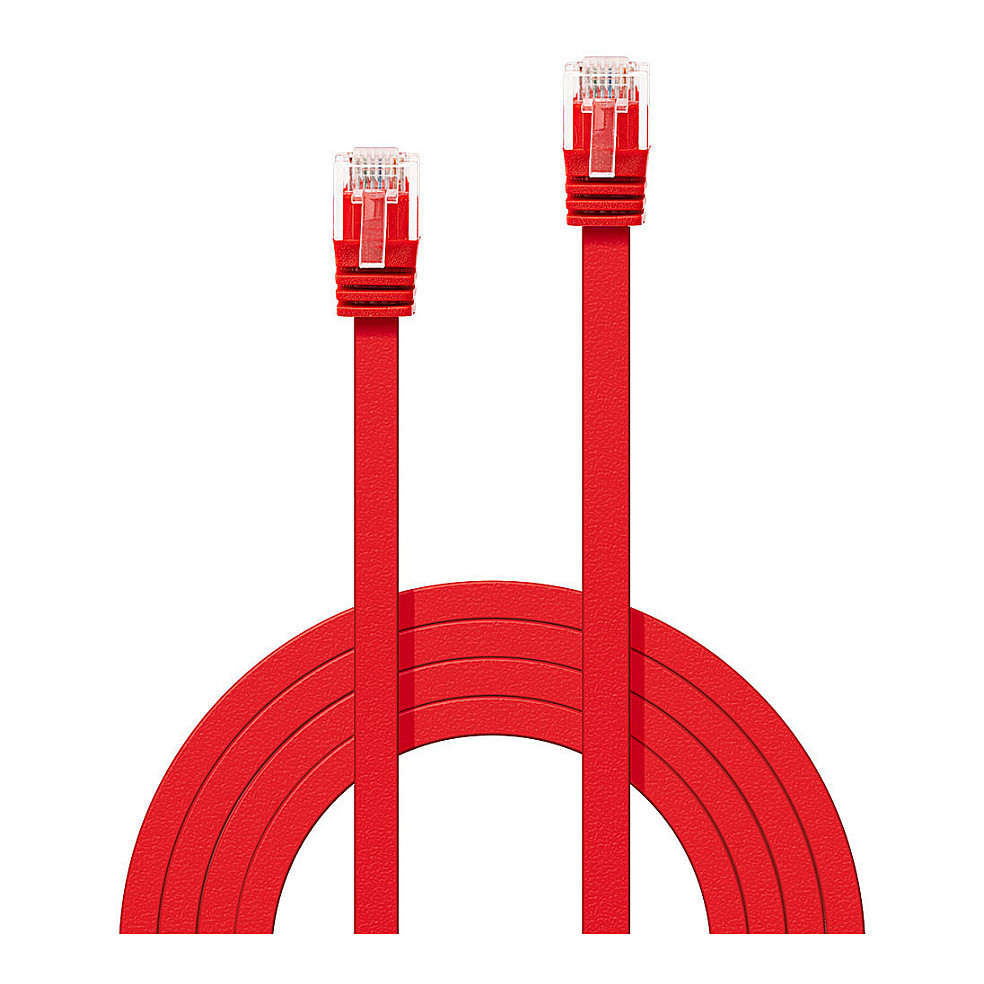

LINDY Patchkabel Cat6 Flachband ungeschirmt rot 1m
Κωδικός: 24883322 // Κωδικός προμηθευτή: 47511 // EAN: 4002888475112
Νέο προϊόν
€4,20 (συμπ. ΦΠΑ)
Διαθέσιμο από 4-8 εργάσιμες ημέρες (25 τεμάχια διαθέσιμα)
Δείτε επίσης
Synergy21 Patchkabel RJ45, CAT6 250Mhz, 2m rot, S-STP(S/FTP), TPE/LSZH(Superflex)
Κωδικός: 24807422
€6,75
Διαθέσιμο από 4-8 εργάσιμες ημέρεςCat.6 U/UTP flat network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameter (NExT, FExT, etc.) despite the lack of shielding. Designed as flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very fleixible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, Grey, White, Red.
Features
Product colour: Red
Cable length: 1 m
Cable standard: Cat6
Cable shielding: U/UTP (UTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Conductor material: Copper
Cabling technology: 10/100Base-T(X)
AWG wire size: 32
Frequency: 250 MHz
Bend radius (min): 6 cm
Operational conditions
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -10 - 40 °C
Certificates
Certification: RoHS, REACH, UL, California Proposition 65
Weight & dimensions
Connector 1 dimensions (WxDxH): 11.6 x 22.7 x 6.5 mm
Connector 2 dimensions (WxDxH): 11.6 x 22.7 x 6.5 mm
Packaging data
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameter (NExT, FExT, etc.) despite the lack of shielding. Designed as flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very fleixible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, Grey, White, Red.
Features
Product colour: Red
Cable length: 1 m
Cable standard: Cat6
Cable shielding: U/UTP (UTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Conductor material: Copper
Cabling technology: 10/100Base-T(X)
AWG wire size: 32
Frequency: 250 MHz
Bend radius (min): 6 cm
Operational conditions
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -10 - 40 °C
Certificates
Certification: RoHS, REACH, UL, California Proposition 65
Weight & dimensions
Connector 1 dimensions (WxDxH): 11.6 x 22.7 x 6.5 mm
Connector 2 dimensions (WxDxH): 11.6 x 22.7 x 6.5 mm
Packaging data
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
