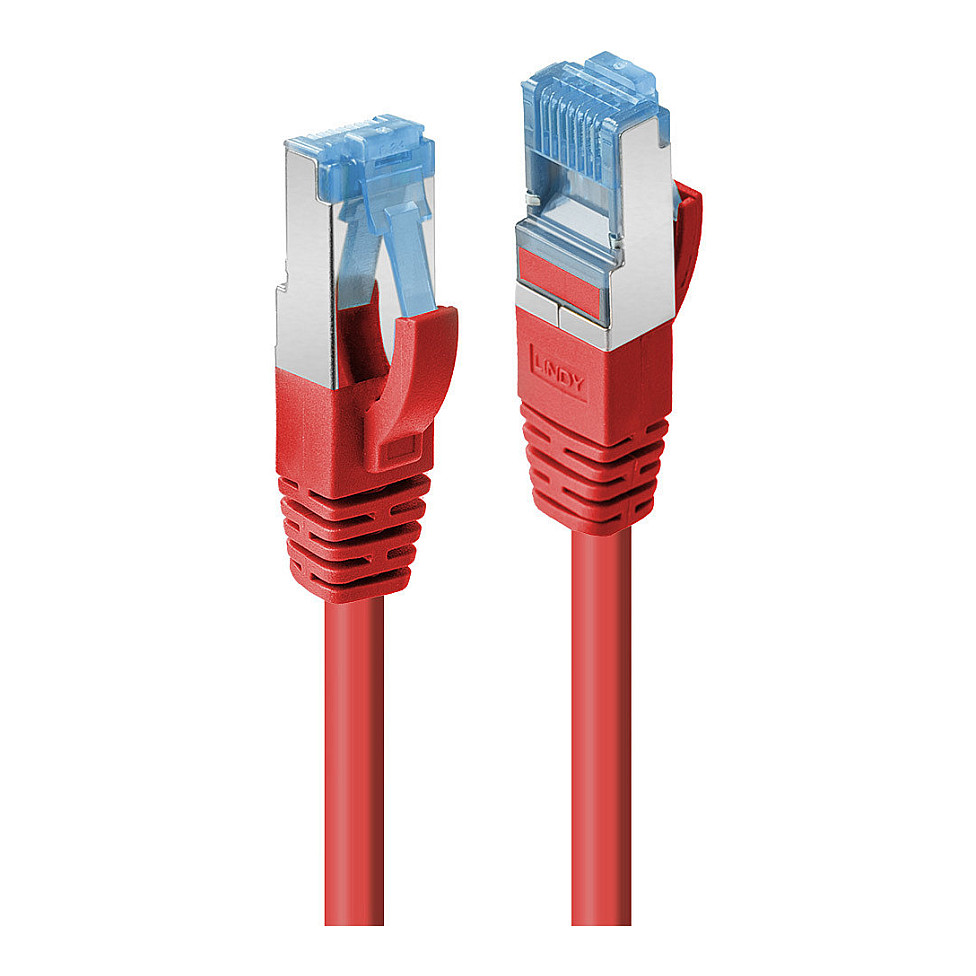

LINDY Patchkabel Cat6A S/FTP PIMF LSZH rot 1.00m
Product code: 24884922 // MPN: 47162 // EAN: 4002888471626
New entry
€9,10 (inc. VAT)
Available from 4 to 10 days (91 pcs available)
Similar products
Synergy21 Patchkabel RJ45, CAT8.1 2000Mhz, 5m, schwarz, S-STP(S/FTP), TPE/LSZH(SuperFlex), AWG26,
Code: 24788322
€13,80
Available from 4 to 10 daysCat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Features
Product colour: Red
Cable length: 1 m
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Nickel/Gold
Connector shielding: Yes
Connector shield material: Aluminium
Jacket material: Low smoke zero halogen (LSZH)
Conductor material: Copper
Cable class: E
Cabling technology: 10/100/1000Base-T(X)
AWG wire size: 27
Data transfer rate: 1000 Mbit/s
Frequency: 500 MHz
Bend radius (min): 7.2 cm
Plug and Play: Yes
Operational conditions
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 75 °C
Certificates
Certification: RoHS, REACH, UL
Weight & dimensions
Outer diameter: 6 mm
Connector 1 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Features
Product colour: Red
Cable length: 1 m
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Nickel/Gold
Connector shielding: Yes
Connector shield material: Aluminium
Jacket material: Low smoke zero halogen (LSZH)
Conductor material: Copper
Cable class: E
Cabling technology: 10/100/1000Base-T(X)
AWG wire size: 27
Data transfer rate: 1000 Mbit/s
Frequency: 500 MHz
Bend radius (min): 7.2 cm
Plug and Play: Yes
Operational conditions
Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -20 - 75 °C
Certificates
Certification: RoHS, REACH, UL
Weight & dimensions
Outer diameter: 6 mm
Connector 1 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH): 11.6 x 21.5 x 8.3 mm
Packaging content
Quantity per pack: 1 pc(s)
Packaging data
Package type: Polybag
Logistics data
Harmonized System (HS) code: 84733080
