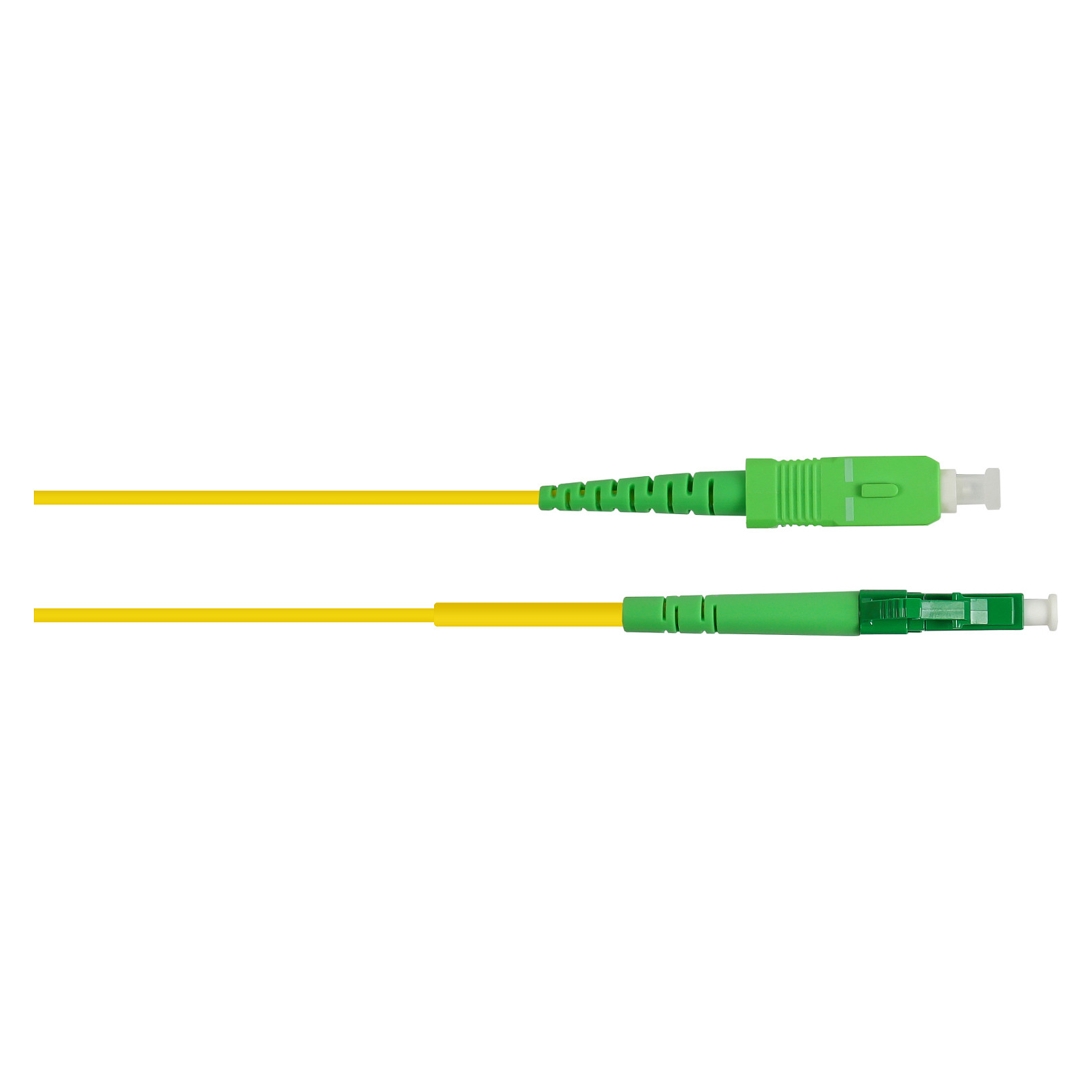

Patch cable FO Simplex OS2 (singlemode, 9/125) LC (APC) / SC (APC), LSZH, 1m, Good Connections®
Fiber optic patch cords from Good Connections® make it possible to connect different network components and ensure loss-free data transmission. Different quality classes (OMx/OSx) facilitate the qualitative and functional differentiation of a fiber optic patch cord.

Extensive areas of application - FTTx and Data Center
Whether in private households or in demanding and professional application scenarios - with its small 15mm bending radius and very good attenuation values, this simplex patch cable is ideal for the connection area of ​​FTTH (Fiber To The Home), FTTB (Fiber To The Building), FTTO (Fibre To the Office) and FTTx. For example, it can be used between the house transfer point (HÜP) and the network termination device / Optical Network Termination (ONT) / modem. It can also be used to connect NAS, gaming PCs or media centers with routers, Fritzboxes or modems.

High quality standards, 100% testing and individual measurement report
The use of high-quality materials and modern production facilities as well as ongoing quality controls during the production process ensure loss-free signal transmission and consistently high quality. Each individual patch cable undergoes a test after assembly. After a successful measurement, each patch cable is accompanied by an individual measurement/test report.

Features
Cable length: 1 m
Fibre optic type: OS2
Connector 1: LC
Connector 2: SC
Connector polish type: APC
Product colour: Yellow
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Jacket material: Low smoke zero halogen (LSZH)
Operational conditions
Operating temperature (T-T): -40 - 85 °C
Weight & dimensions
Cable diameter: 2 mm
Other features
Technical features: Quality: Each cable has its own measurement/test report; Min. bending radius: 15 mm
