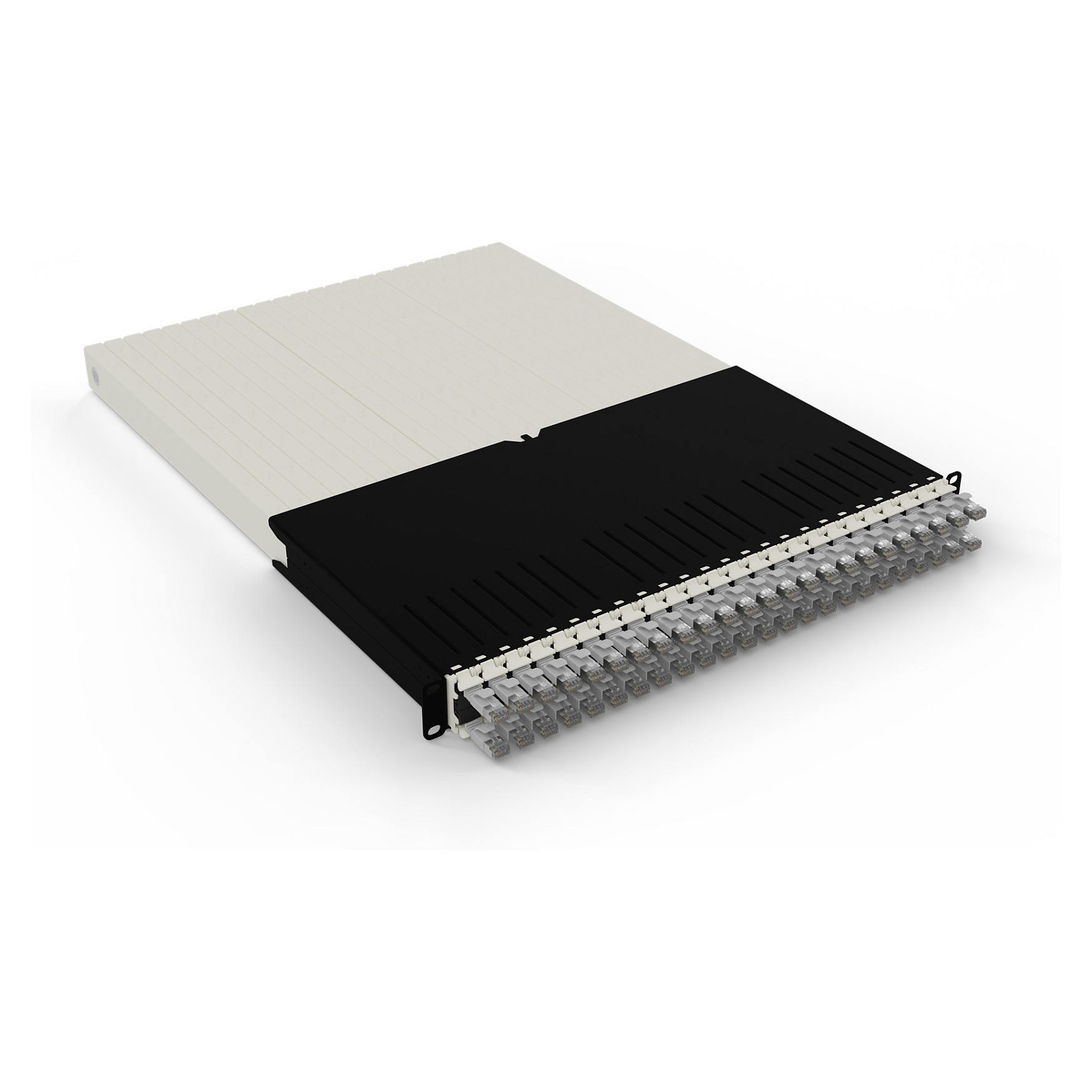

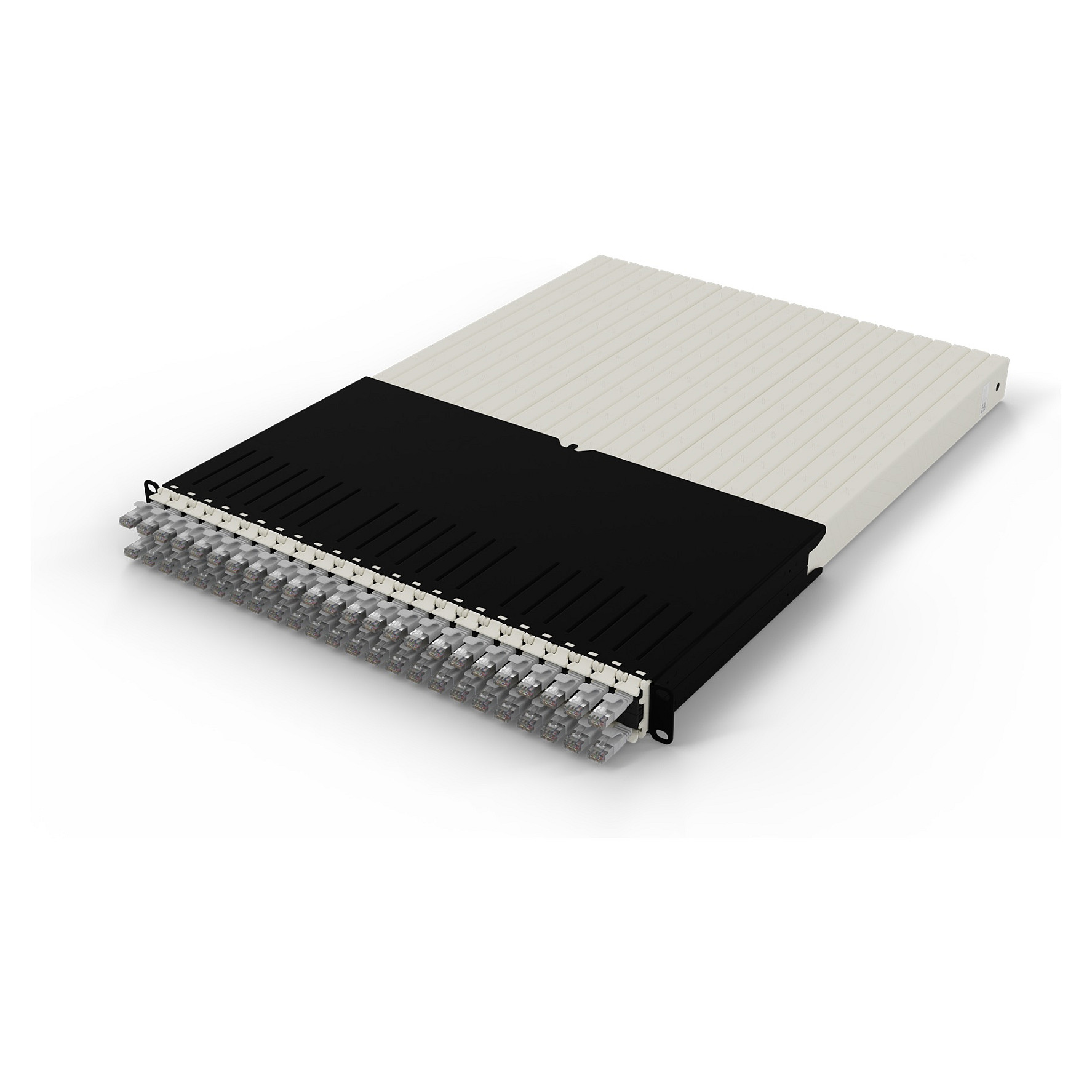

Patchbox patchbox.one Kabeleinzugssystem 30RU/STP (1,8 m) mit 24 Kassetten, Patchkabel Cat. 6a, U/FTP, PoE, Kabel grau
Κωδικός: 24974822 // Κωδικός προμηθευτή: PONE30STPSL // EAN: 4262427630765
Νέο προϊόν
€896,15 (συμπ. ΦΠΑ)
Διαθέσιμο από 4-8 εργάσιμες ημέρες (5 τεμάχια διαθέσιμα)
Δείτε επίσης
Western Digital HDD 3.5 PURPLE CCTV 4TB WD44PURZ
Κωδικός: 25118320
€221,60
Διαθέσιμο από 1-3 εργάσιμες ημέρεςThe Ultimate Cable Management Solution
The patchbox.one with its retractable Cat.6a cables is the ultimate solution for keeping your network rack forever organized, efficient, and future-proof. It is equipped with super-flexible twisted pair cables that are retractable, lighter and easier to handle.
Say Goodbye to Cable Chaos
With 24 retractable cables neatly stored inside modular cassettes, your rack stays tidy, reducing clutter and improving airflow.
Up to 50% More Usable Rack Space
By storing excess cable length where it doesn’t bother you and removing conventional cable managers, patchbox.one frees up precious rack space.
10x Faster Installation & Troubleshooting
Every cable retracts to your desired length—no measuring, no zip ties. IT Technicians can work significantly faster and more accurately and downtimes can be reduced by up to 90%.
High-Speed, PoE-Ready Performance
Cat.6a cables meet ISO/IEC 11801 Class Ea standards and support PoE (STP) and PoE++ (UTP), ready to power your devices.
Color-Code for Instant Overview
Choose from 8 different cable colors—ideal for cable-coding your rack setup.
Optimized for Your Rack Size
While our 8RU version includes 0.8m cables for compact racks, the 30RU version comes with 1.8m cables, ideal for full-height network cabinets.
Modular and Customizable
Cassettes can be replaced or rearranged in seconds—adapt to your changing infrastructure without starting over.
Built to Last, Backed by Warranty
patchbox.one and all cables come with a 10-Year Warranty, delivering reliability you can trust in mission-critical environments.
Features
Product colour: Grey
Cable length: 1.8 m
Cable standard: Cat6a
Cable shielding: U/FTP (STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Cable shape: Flat
Conductor material: Copper
AWG wire size: 36
Data transfer rate: 10000 Mbit/s
Bend radius (min): 1.2 cm
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Active PoE
Country of origin: Hungary
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Certificates
Certification: ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel
Weight & dimensions
Width: 482 mm
Depth: 600 mm
Height: 44 mm
Weight: 7.08 kg
Packaging content
Quantity per pack: 1 pc(s)
Packaging content: 24 x patchbox.one / Cassette / 30RU / STP / Grey1 x patchbox.one / Frame4 x Flanges4 x Hex nuts6 x Patchcatch2 x Mounting rails
Packaging data
Package width: 799 mm
Package depth: 587 mm
Package height: 55 mm
Package weight: 8.56 kg
Other features
Cables included: LAN (RJ-45)
The patchbox.one with its retractable Cat.6a cables is the ultimate solution for keeping your network rack forever organized, efficient, and future-proof. It is equipped with super-flexible twisted pair cables that are retractable, lighter and easier to handle.
Say Goodbye to Cable Chaos
With 24 retractable cables neatly stored inside modular cassettes, your rack stays tidy, reducing clutter and improving airflow.
Up to 50% More Usable Rack Space
By storing excess cable length where it doesn’t bother you and removing conventional cable managers, patchbox.one frees up precious rack space.
10x Faster Installation & Troubleshooting
Every cable retracts to your desired length—no measuring, no zip ties. IT Technicians can work significantly faster and more accurately and downtimes can be reduced by up to 90%.
High-Speed, PoE-Ready Performance
Cat.6a cables meet ISO/IEC 11801 Class Ea standards and support PoE (STP) and PoE++ (UTP), ready to power your devices.
Color-Code for Instant Overview
Choose from 8 different cable colors—ideal for cable-coding your rack setup.
Optimized for Your Rack Size
While our 8RU version includes 0.8m cables for compact racks, the 30RU version comes with 1.8m cables, ideal for full-height network cabinets.
Modular and Customizable
Cassettes can be replaced or rearranged in seconds—adapt to your changing infrastructure without starting over.
Built to Last, Backed by Warranty
patchbox.one and all cables come with a 10-Year Warranty, delivering reliability you can trust in mission-critical environments.
Features
Product colour: Grey
Cable length: 1.8 m
Cable standard: Cat6a
Cable shielding: U/FTP (STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Cable shape: Flat
Conductor material: Copper
AWG wire size: 36
Data transfer rate: 10000 Mbit/s
Bend radius (min): 1.2 cm
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Active PoE
Country of origin: Hungary
Operational conditions
Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Certificates
Certification: ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel
Weight & dimensions
Width: 482 mm
Depth: 600 mm
Height: 44 mm
Weight: 7.08 kg
Packaging content
Quantity per pack: 1 pc(s)
Packaging content: 24 x patchbox.one / Cassette / 30RU / STP / Grey1 x patchbox.one / Frame4 x Flanges4 x Hex nuts6 x Patchcatch2 x Mounting rails
Packaging data
Package width: 799 mm
Package depth: 587 mm
Package height: 55 mm
Package weight: 8.56 kg
Other features
Cables included: LAN (RJ-45)
