USB HUBS

Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB

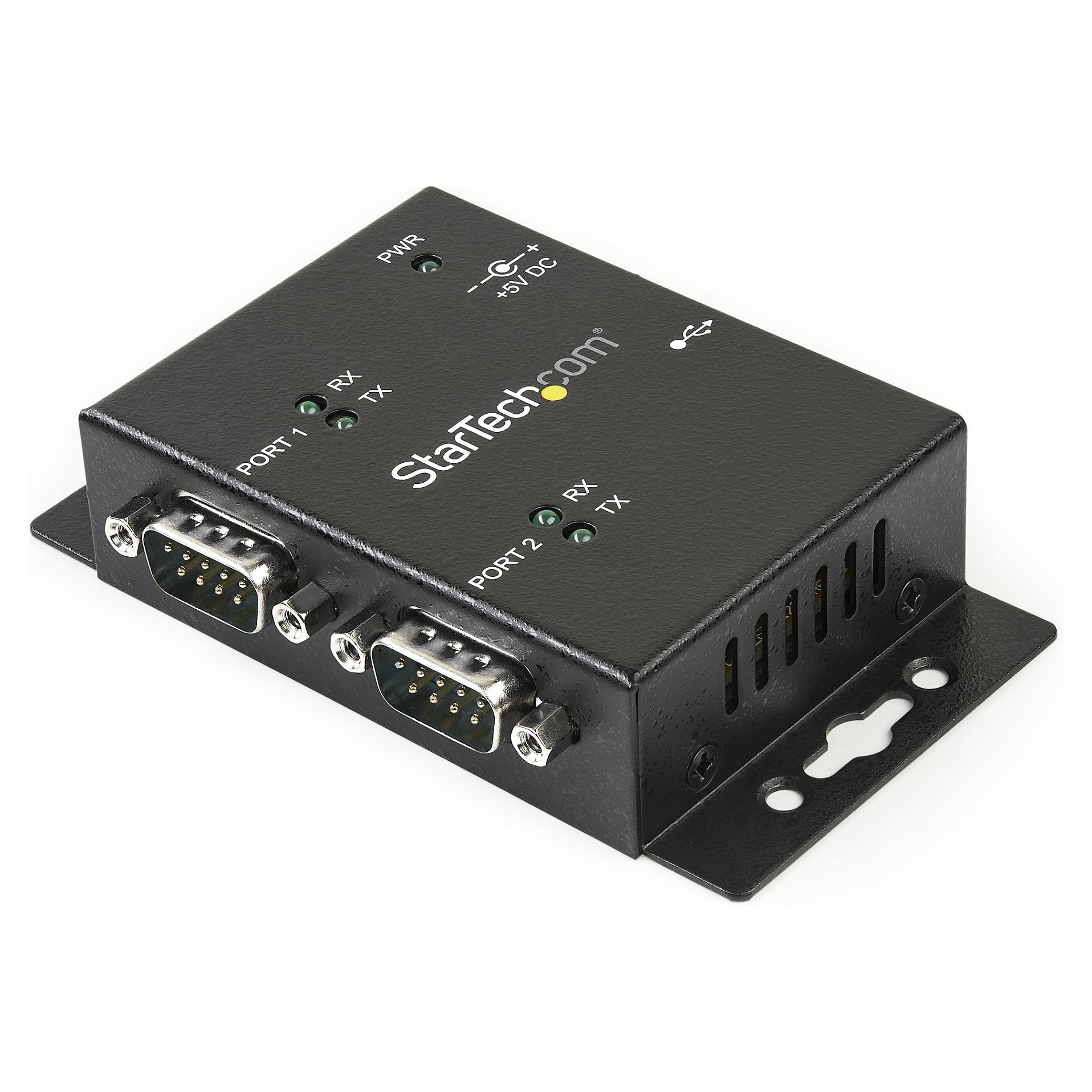

The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage


Ports & interfaces

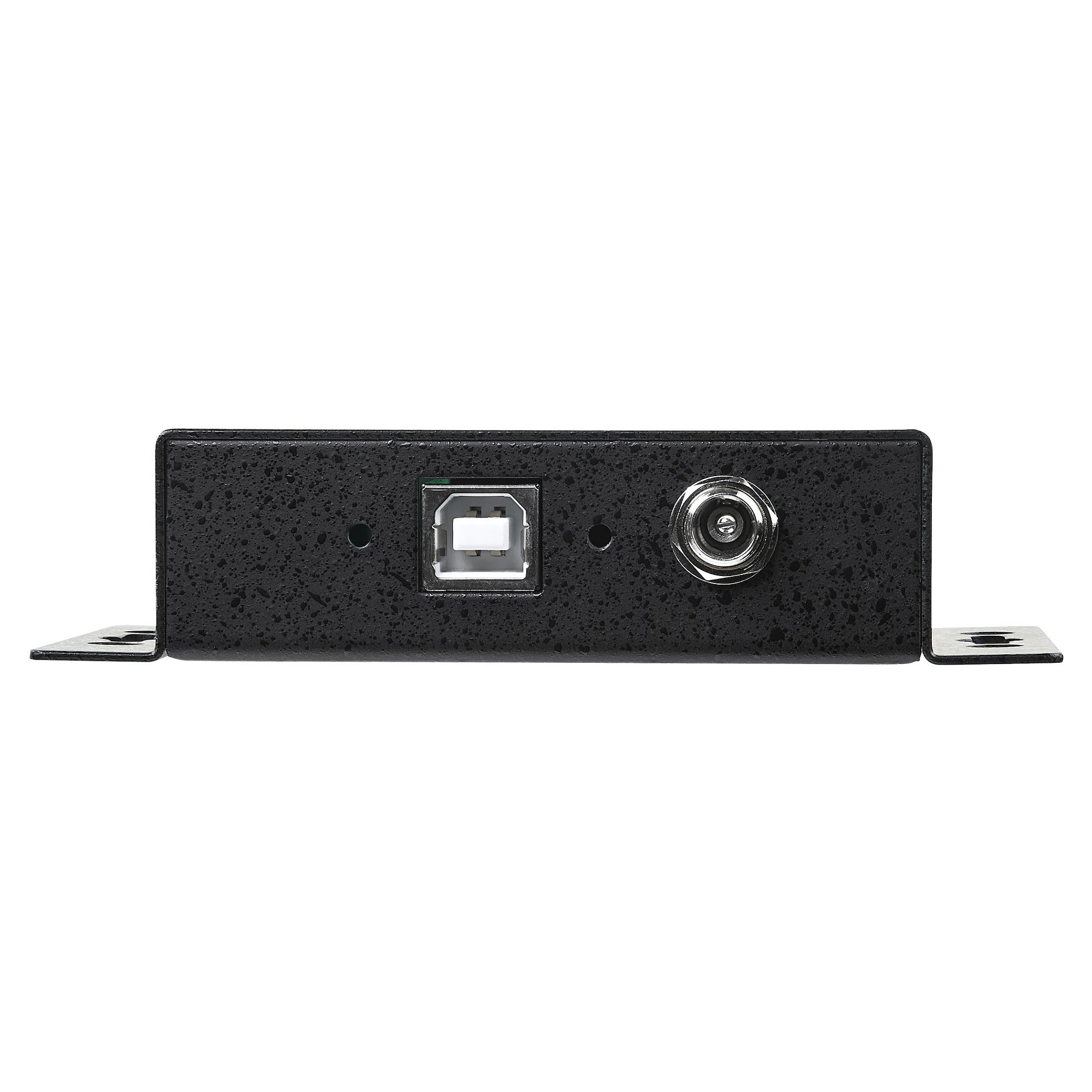

Host interface: USB 2.0 Type-B
Hub interfaces: Serial
Ports quantity: 2

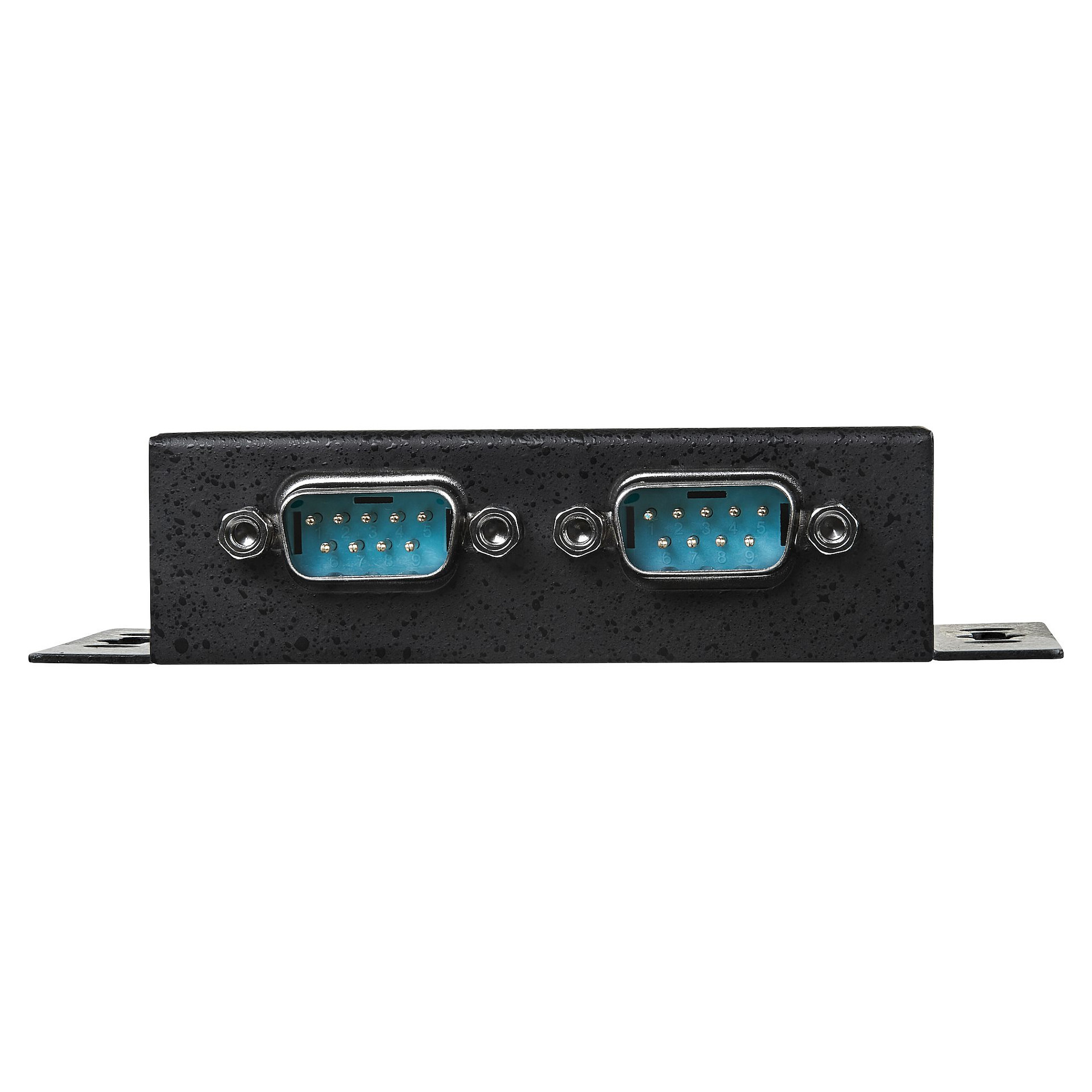

RS-232 ports: 2
Card reader integrated: No
DC-in jack: Yes
Features
Product colour: Black
Housing material: Steel
LED indicators: Activity
System requirements
Windows operating systems supported: Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Linux operating systems supported: Yes
Other operating systems supported: Windows XP Embedded
Compatible operating systems: Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x
Weight & dimensions
Width: 66 mm
Depth: 104 mm
Height: 24 mm
Weight: 162 g
Packaging data
Quantity per pack: 1 pc(s)
Package width: 145 mm
Package depth: 214 mm
Package height: 41 mm
Package weight: 400 g

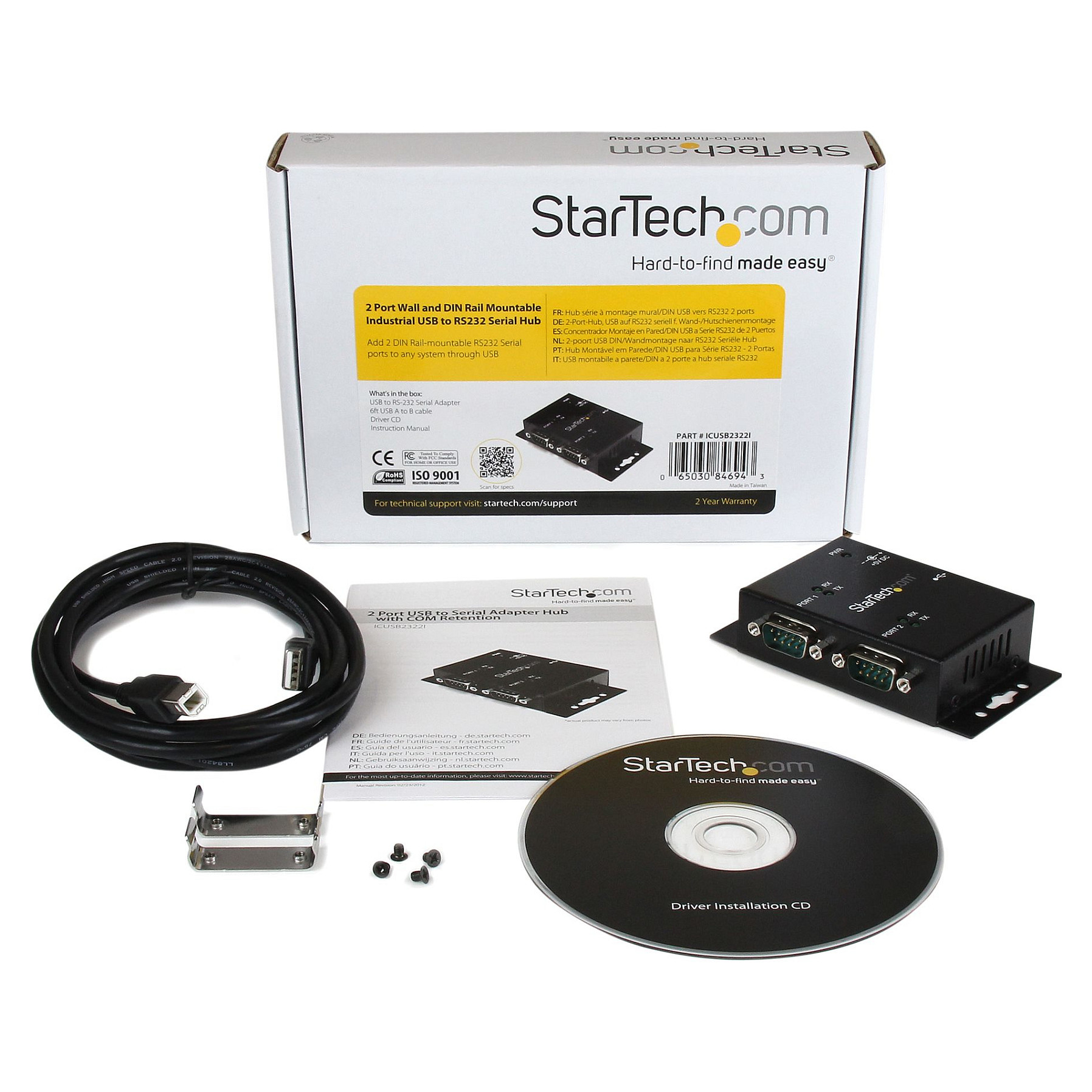

Packaging content
Cables included: USB
Manual: Yes
DIN rail kit included: Yes
Drivers included: Yes
Operational conditions
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Performance
Data bits: 7, 8
Stop bits: 1, 2
Parity bit: Even, Mark, No, Odd, Space
FIFO (First In, First Out): 256 B
Baud rate: 921.6 Kbit/s
Sustainability
Sustainability compliance: Yes
Logistics data
Master (outer) case width: 444 mm
Master (outer) case length: 525 mm
Master (outer) case height: 364 mm
Products per master (outer) case: 45 pc(s)
Harmonized System (HS) code: 84719000
Technical details
Compliance certificates: CE, RoHS
Other features
Chipset: FTDI - FT232RL
