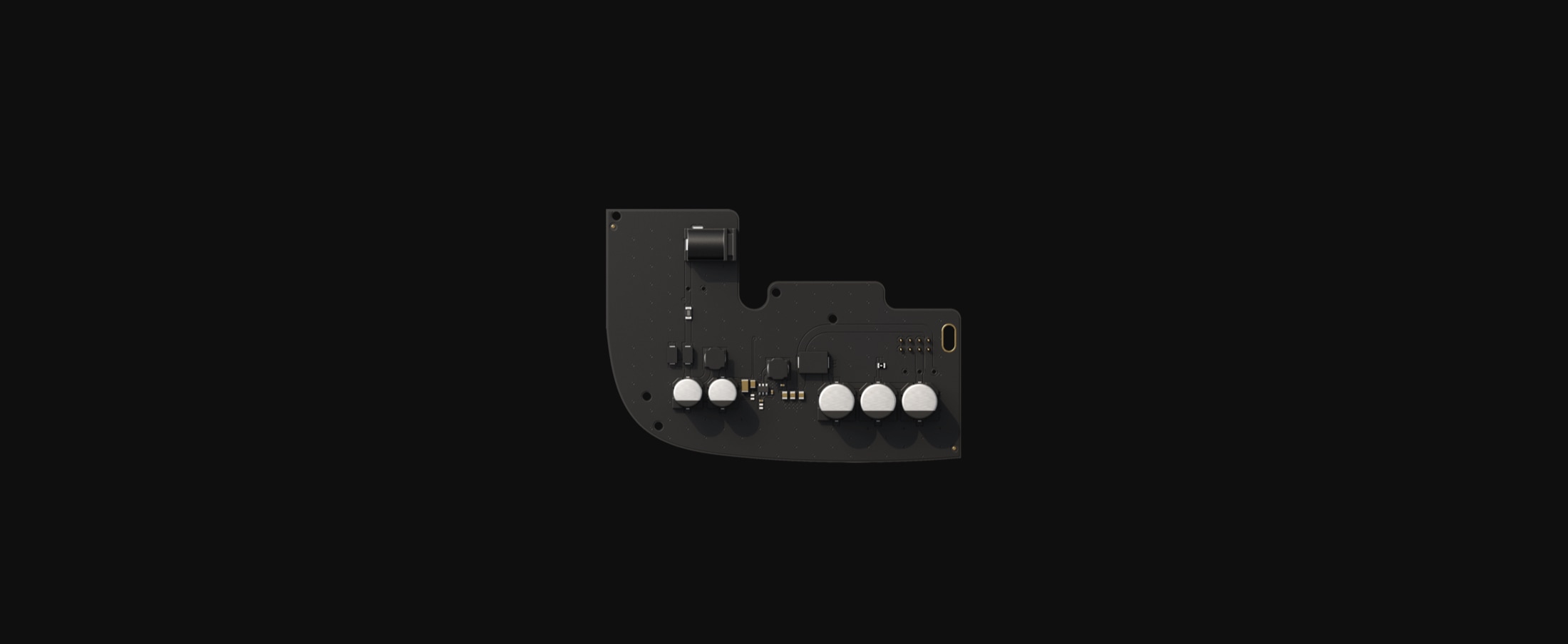

AJAX Power Board for Hub2 12V
Product code: 25071820 // MPN: 27418.94.NC
New entry
€41,60 (inc. VAT)
Available from 1 to 3 days
Similar products
New entry
Dahua Alarm Automation Transmitter with POE ARM320-W2(868)
Code: 25083520
€226,75
Available from 1 to 3 days- A power supply unit, connecting the Hub 2 control panel to a low-voltage power source
Compatibility
- The power supply unit is compatible with Hub 2 central panel. It features a standard socket for connecting the power jack plug and has a bundled terminal adapter.
Installation
- 12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit
- Input voltage : 8-20 V DC
- Output voltage : 4.8 V ± 3%
- Switch-on voltage : 8 V ± 2.5%
- Switch-off voltage : 6.9-7.5 V (depending on load)
- Input current : <1 А
- Output current : 1,5 А
- Connection : Socket: 6,5 × 2 mm / Plug: 5,5 × 2,1 mm (power jack)
- Dimensions : 98 × 70 × 17 mm
- Weight : 28 g
