SWITCHES

Provide a variety of installation methods for easy deployment in any environment
● Support 8-inch Rack-mount Steel Case
● Support Desktop installation

High Performance
Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Power Saving
Save power up to 40% - The GS1016 uses green Ethernet technology to make your network compatible without compromising performance. The switch automatically powers down the ports that are idle and budgets power output for different Ethernet cable lengths. It helps you save power up to 40%.

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto-negotiation: Yes
Optical fiber
Transmission distance (max): 0.1 km
Data transmission
Switching capacity: 32 Gbit/s
MAC address table: 8 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9216
Packet buffer memory: 4.1 MB
Design
Rack mounting: Yes
Product colour: Black

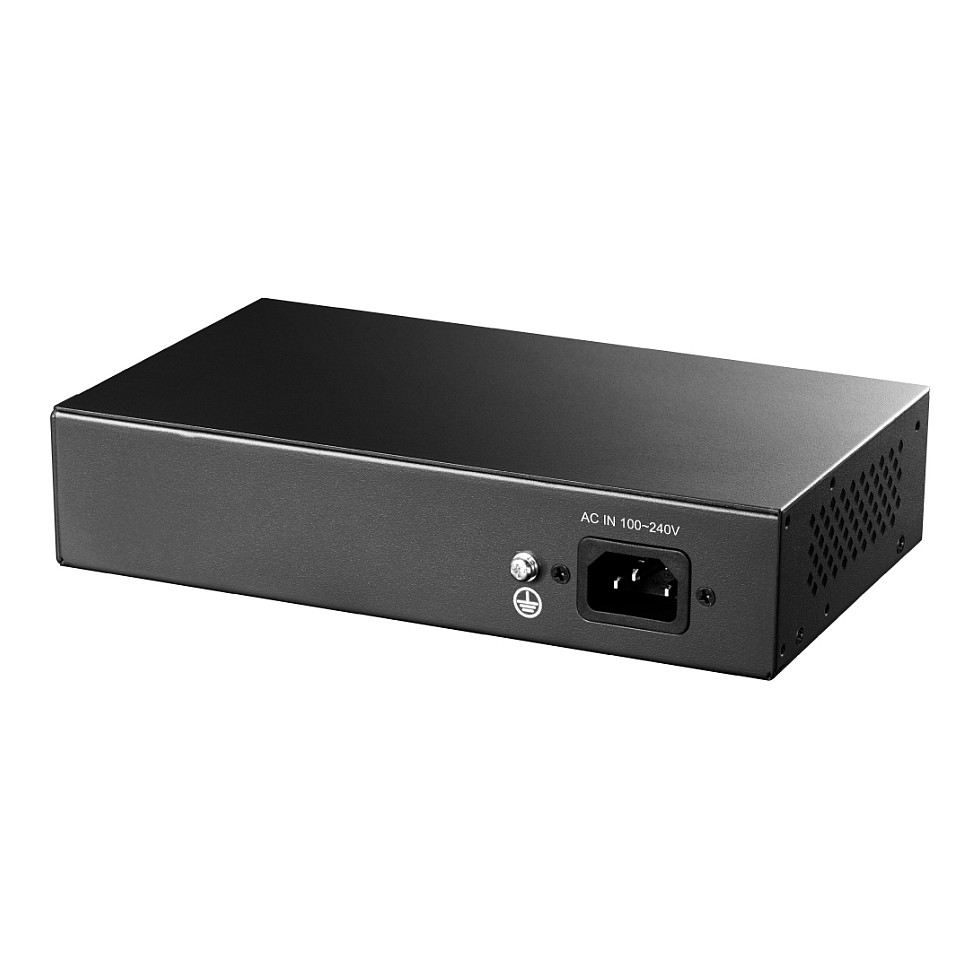

Power
Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
Power consumption (typical): 15 W
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 85%
Weight & dimensions
Width: 118 mm
Depth: 200 mm
Height: 44 mm

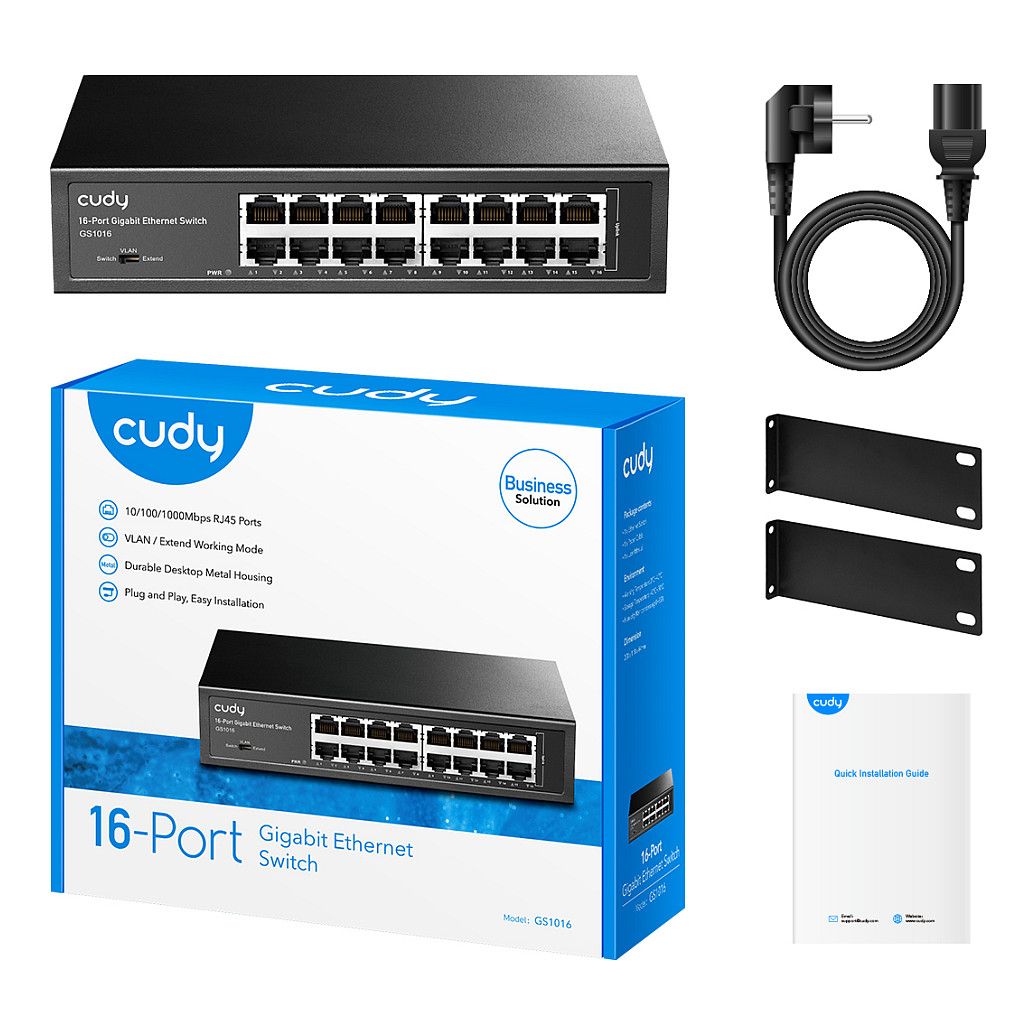

Packaging content
Cables included: AC
Manual: Yes
