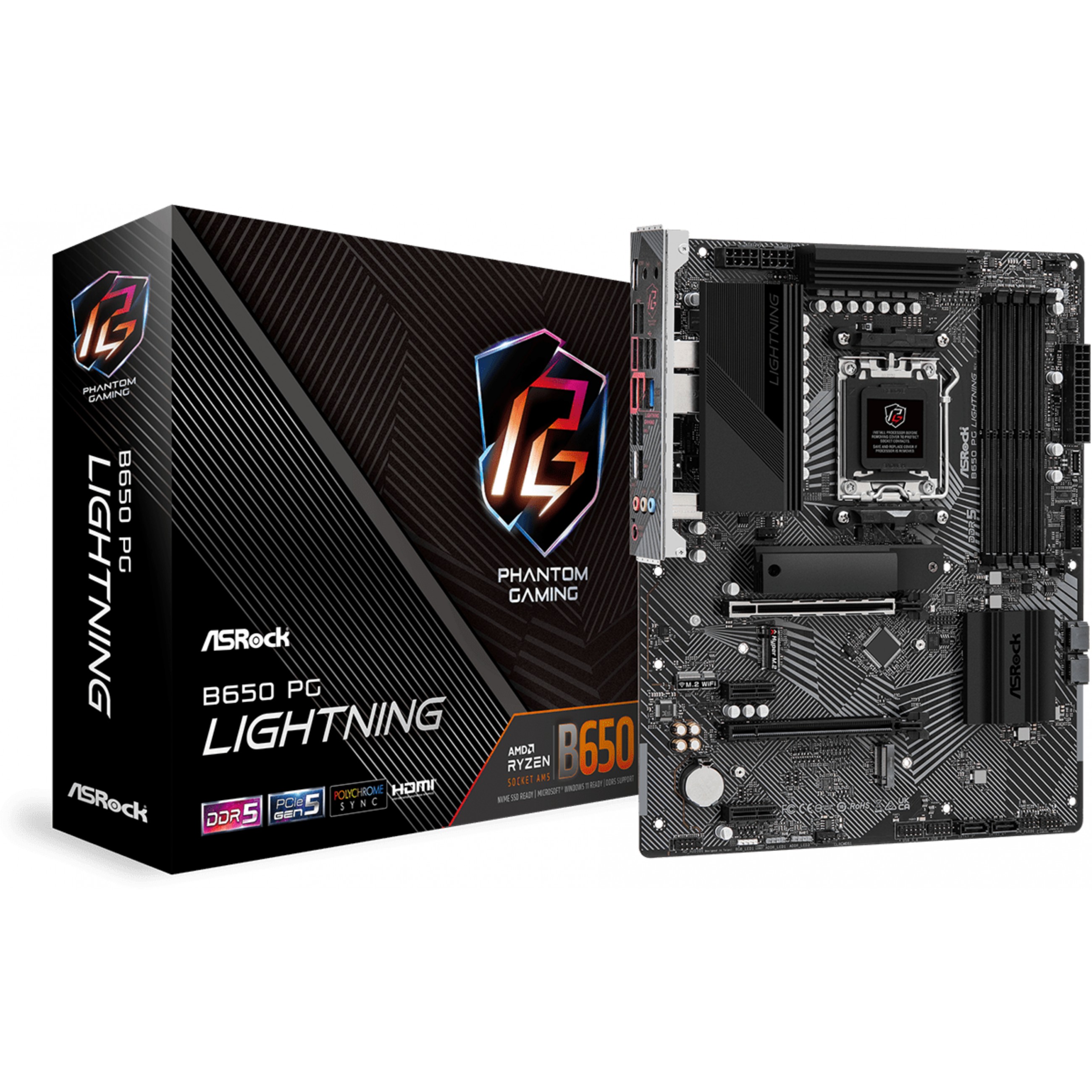

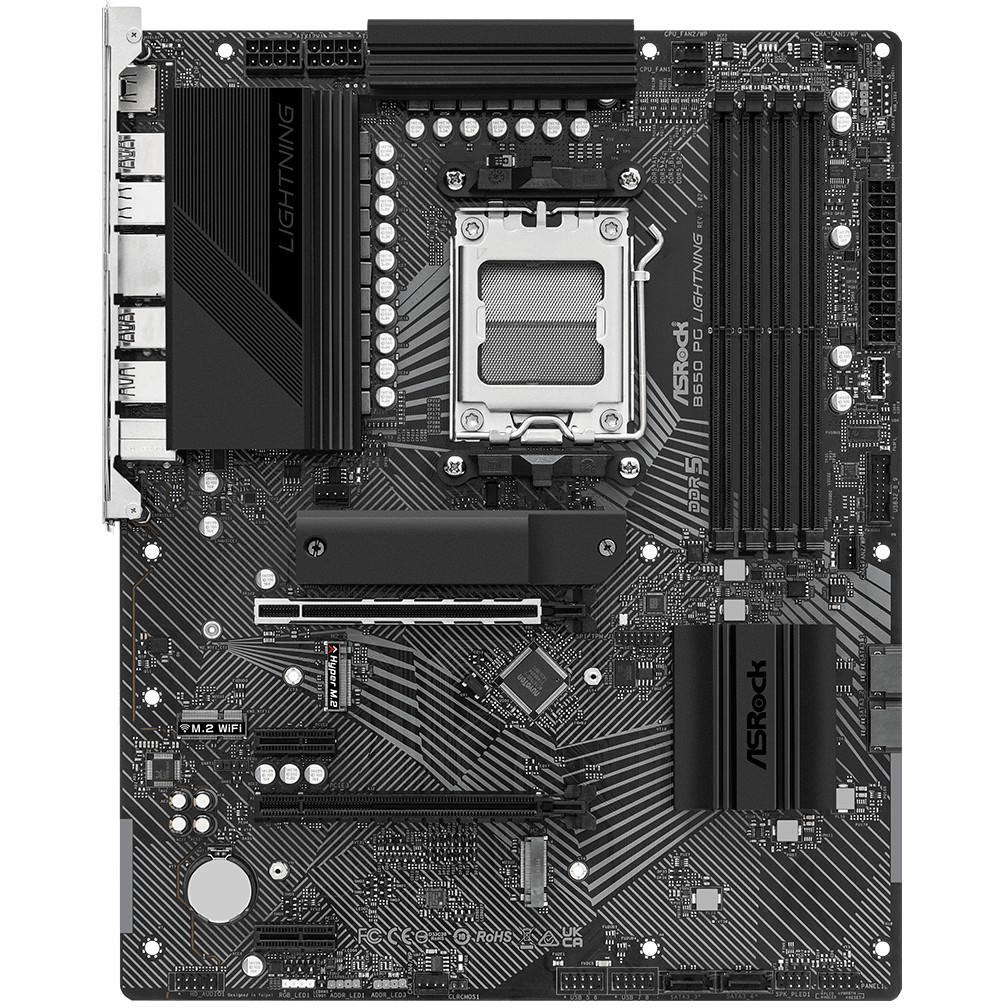

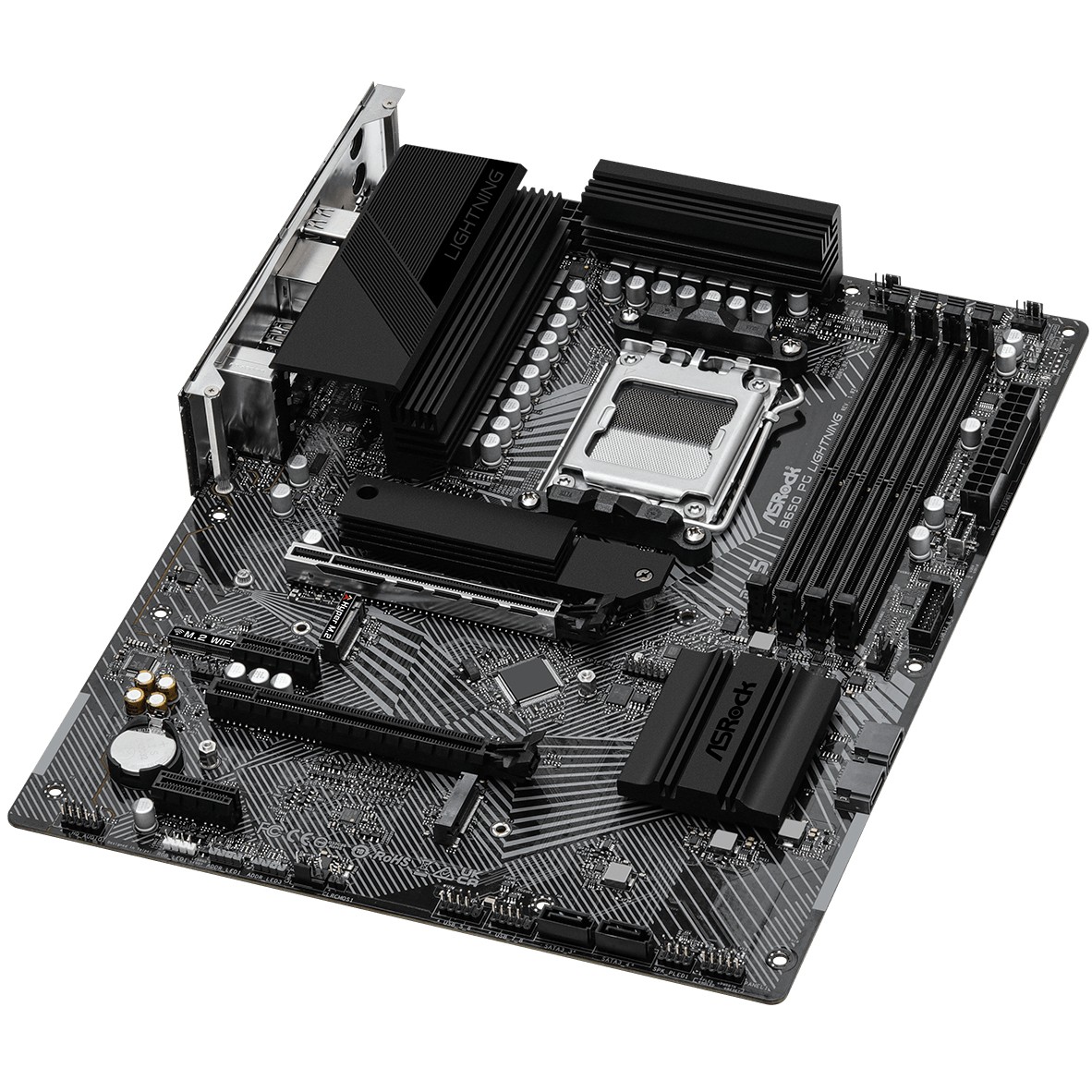

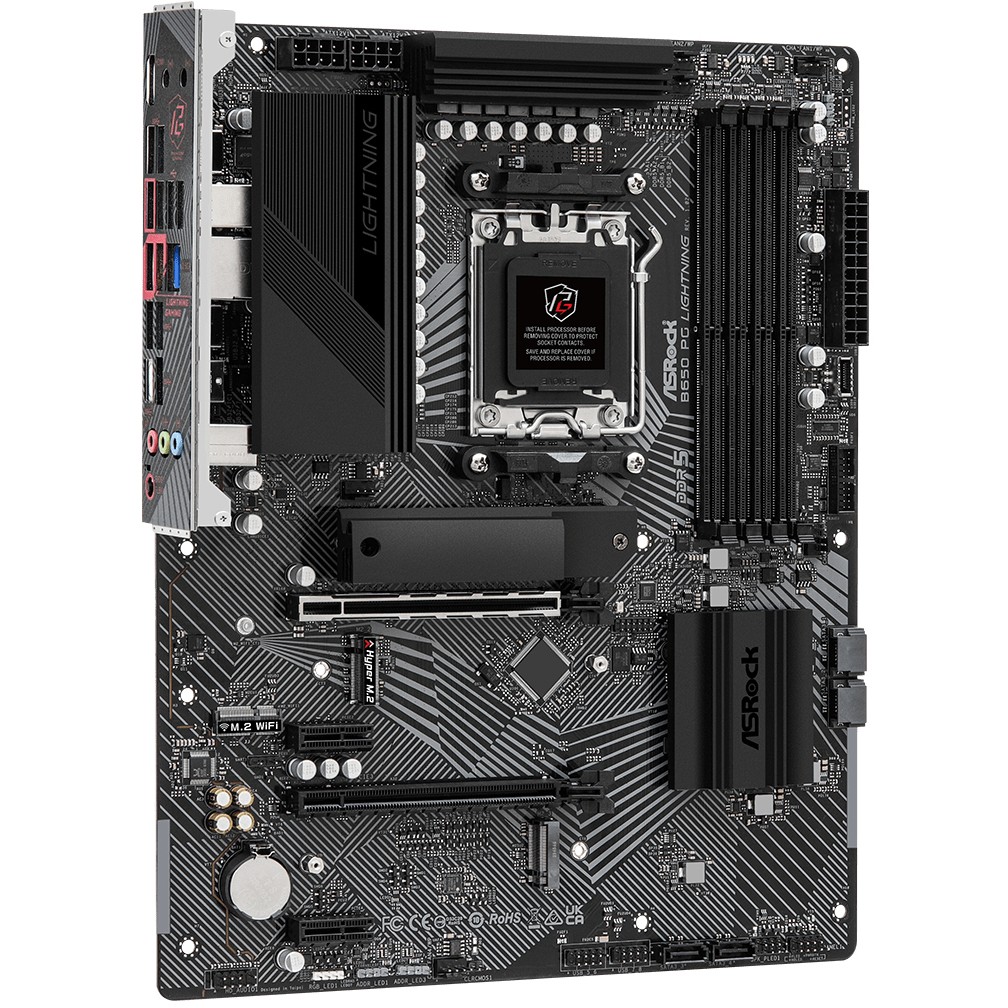

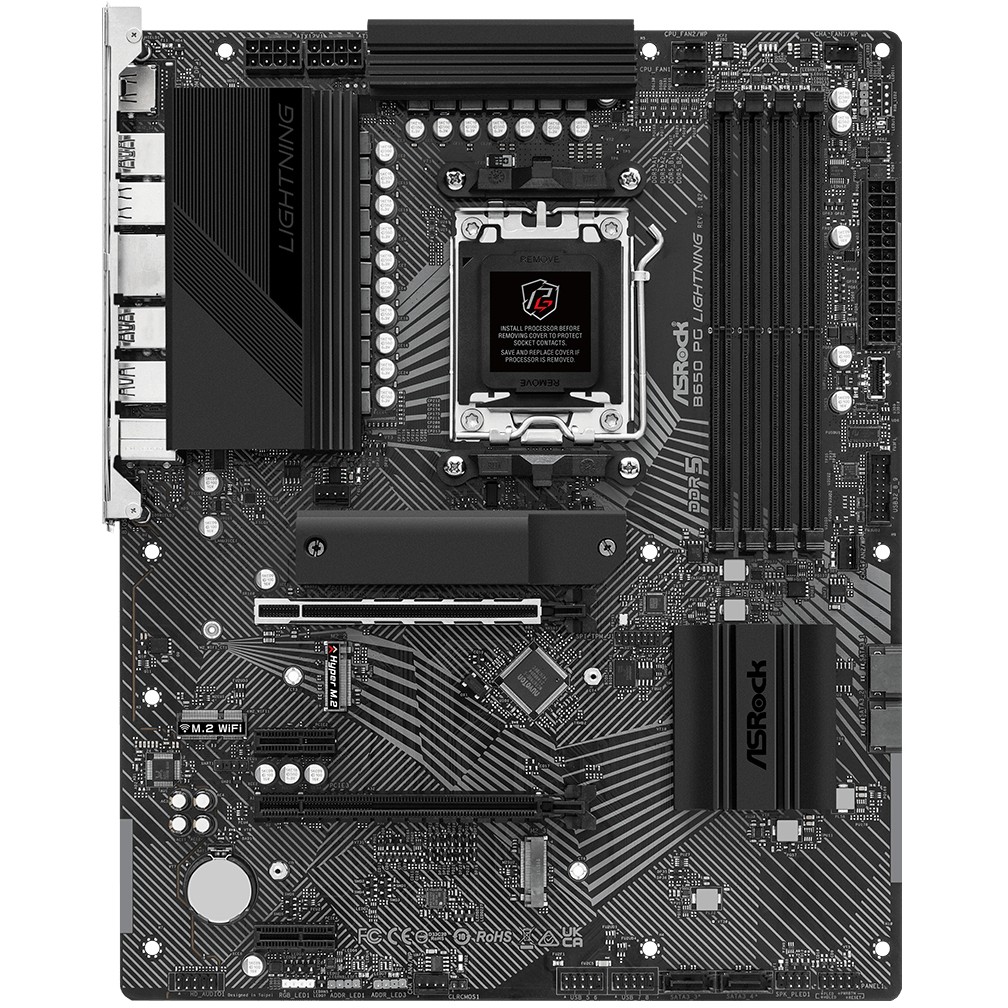

AM5 ASRock B650 PG Lightning DDR5
Product code: 11154922 // MPN: 90-MXBK20-A0UAYZ // EAN: 4710483940910
€159,30 (inc. VAT)
Available from 4 to 10 days (200 pcs available)
Similar products
New entry
ASROCK H810M-X GEN5 DDR5 Intel S1851 90-MXBU90-A0UAYZ retail
Code: 23214822
€105,35
Available from 4 to 10 days| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 6400 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x2 mode) ¦ 2 x PCIe 4.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 3 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |

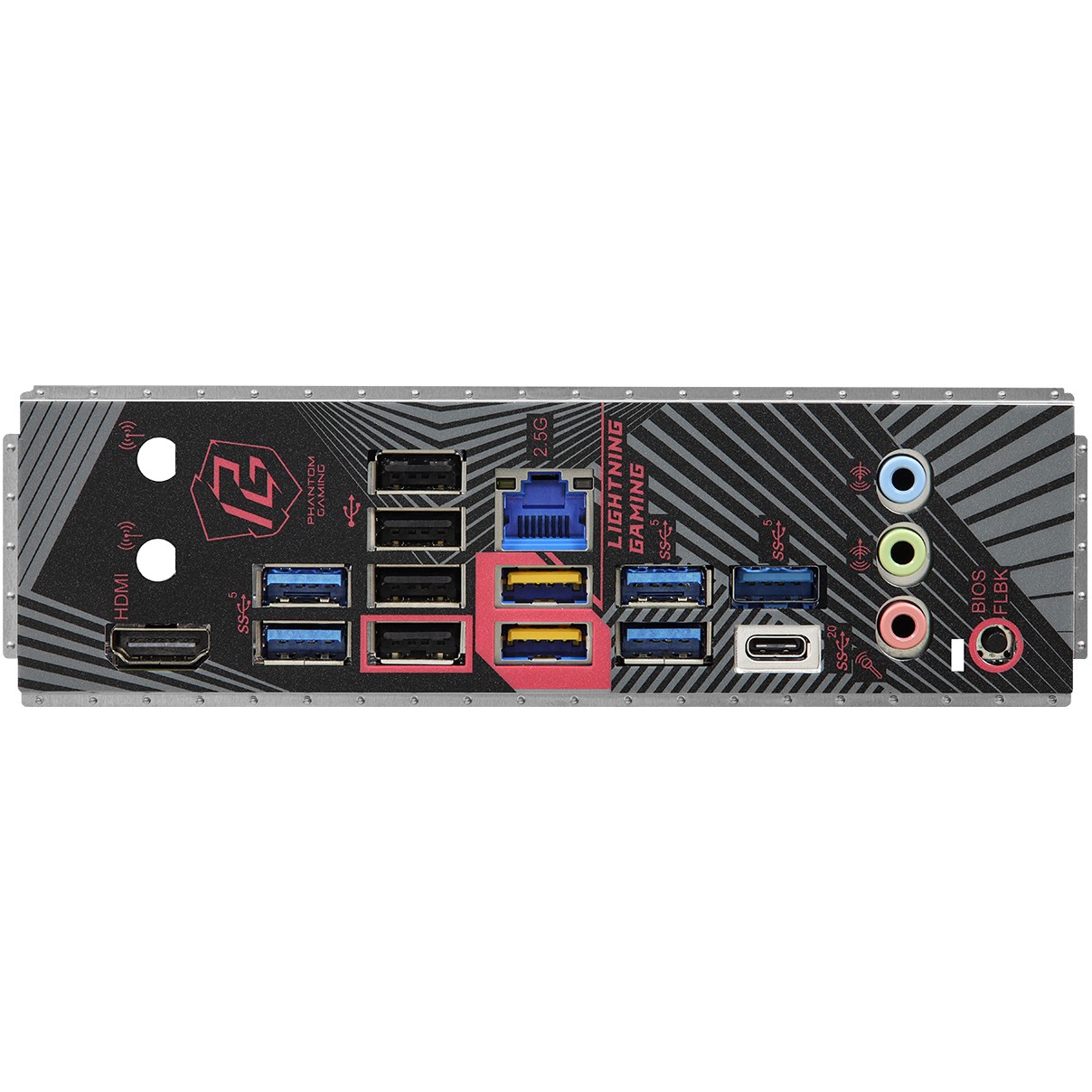

| Interfaces | 1 x USB-C 3.2 Gen2x2 ¦ 7 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Instant Flash, 15µ Gold Contact, 8 Layer PCB, ASRock Full HD UEFI, Water Pump Header, pre-mounted I/O shield, ASRock POST Status Checker (PSC), ASRock Auto Driver Installer, 60A Smart Power Stage, BIOS FlashBack button, 14+2+1 Phase Power Design |
| Miscellaneous | Miscellaneous |
| Included Accessories | 3 x M.2 screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC |
| Compliant Standards | FCC, EuP Ready, ErP Ready, HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| All in one: | |
| Brand: | ASRock |
| Gaming: |
