ASRock B860M Pro-A , Motherboard , micro ATX , LGA1851 Socket , B860 Chipset , USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 1 , 2.5 Gigabit LAN , onboard graphics (CPU required) , HD Audio (8-channel)
Product code: 11190122 // MPN: 90-MXBRR0-A0UAYZ // EAN: 4711581490291
€148,35 (inc. VAT)
Available from 4 to 10 days (15 pcs available)
Similar products
Kontron K3842-Q2 micro-ATX,Q670,iAMT,LGA1700,12th/13th/14th
Code: 19671823
€306,35
8-12 business days| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B860 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 8666 MHz (O.C.), 5600 MHz, 6800 MHz (O.C.), 6533 MHz (O.C.), 4800 MHz, 5600 MHz (O.C.), 4400 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered, clocked unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x M.2 socket (2230 M.2 Key E slot) 2 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x Blazing M.2 PCIe 4.0 -connectors: 2 x Hyper M.2 |

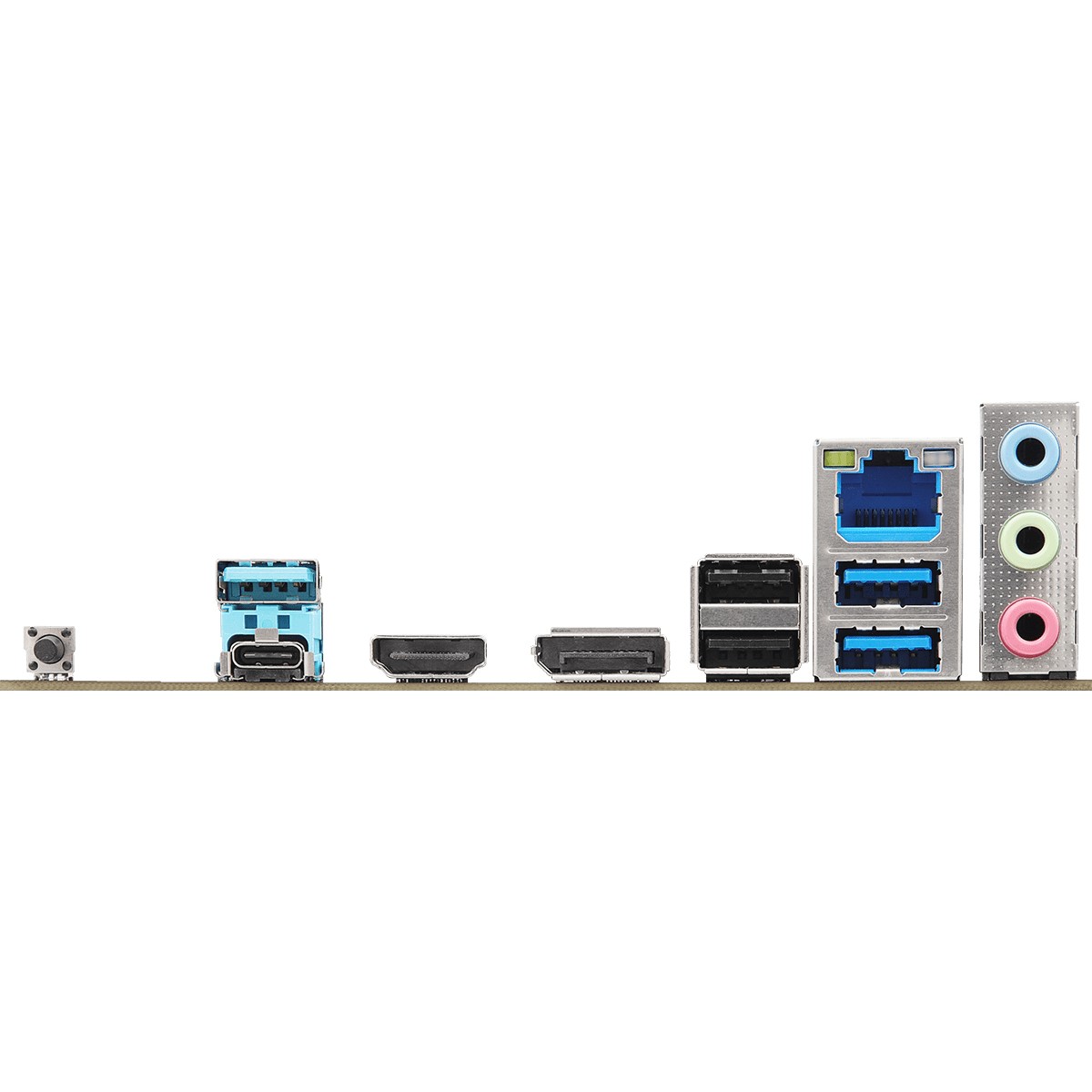

| Interfaces | 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x HDMI 1 x DisplayPort 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out - mini-jack |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), CUDIMM support, BIOS FlashBack button, chipset heatsink, VRM heatsink design, 10+1+1+1+1 Power Phase Design, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, Dr.MOS MOSFET, 6 Layer PCB, M.2 heatsink, aluminium heatsink design, ASRock Polychrome RGB, DIY Friendly Design, ASRock Steel Slots |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, 1 x M.2 screw |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Compliant Standards | FCC, ErP Ready, EuP Ready, HDCP 2.3, DisplayPort 1.4 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
