GA-Z890 AERO D (1851) (D)
Product code: 11191122 // MPN: Z890 AERO D // EAN: 4719331865894
€868,45 (inc. VAT)
Available from 4 to 10 days (4 pcs available)
Similar products
Specifications
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z890 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4750 MHz (O.C.), 4733 MHz (O.C.), 4667 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4467 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 3100 MHz, 3000 MHz, 2900 MHz, 2800 MHz, 2700 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel Wi-Fi 7 BE200 |
| Network Interfaces | 2 x 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 5.0 x16 (x8 mode) 1 x PCIe 4.0 x16 (x4 mode) 2 x M.2 socket (2280/22110 M.2 Key M slot) 2 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

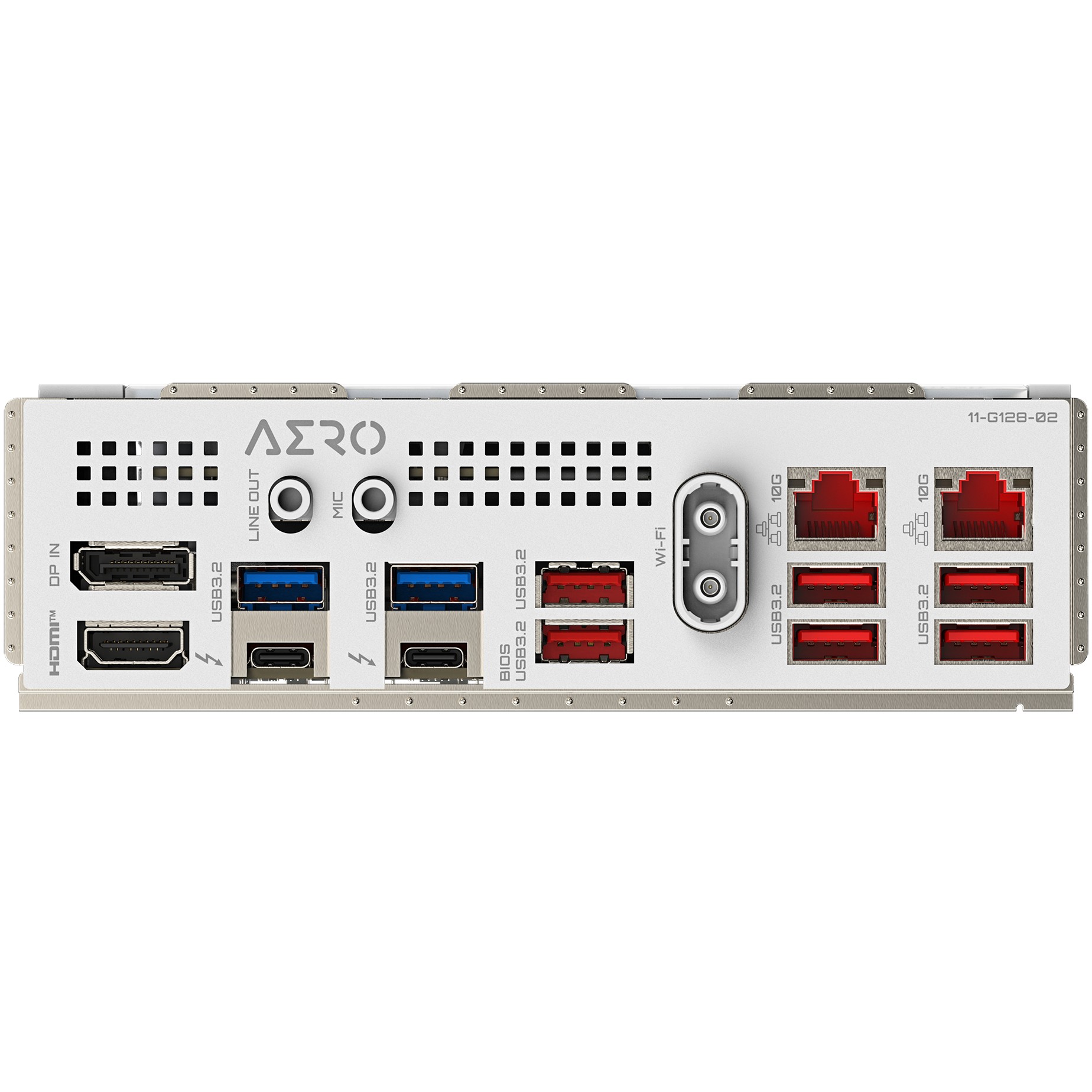

| Interfaces | 2 x USB4 2 x USB 3.2 Gen 1 6 x USB 3.2 Gen 2 2 x aerial 1 x HDMI 1 x DisplayPort 2 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 2 x aerial |
| Internal Interfaces | 1 x Thunderbolt 4 - header 2 x USB-C 3.2 Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support |
| Hardware Monitoring | Fan control, fan fail warning, fan speed detection, system voltage, temperature detection |
| Hardware Features | CUDIMM support, reset button, power button, Q-Flash Plus button, Q-Flash, Q-Flash Plus, 2x Copper PCB, M.2 Thermal Guard Ext., M.2 Thermal Guard L, VRM Thermal Armor Advanced, GIGABYTE VisionLINK TB, EZ Debug LED, AI SNATCH Engine, VRM heatsink design, GIGABYTE Smart Fan 6, Ultra Durable PCIe Armor, RGB FUSION, AI Perfdrive, WIFI EZ-Plug, M.2 EZ Latch plus, PCIe EZ Latch Plus |
| Miscellaneous | Miscellaneous |

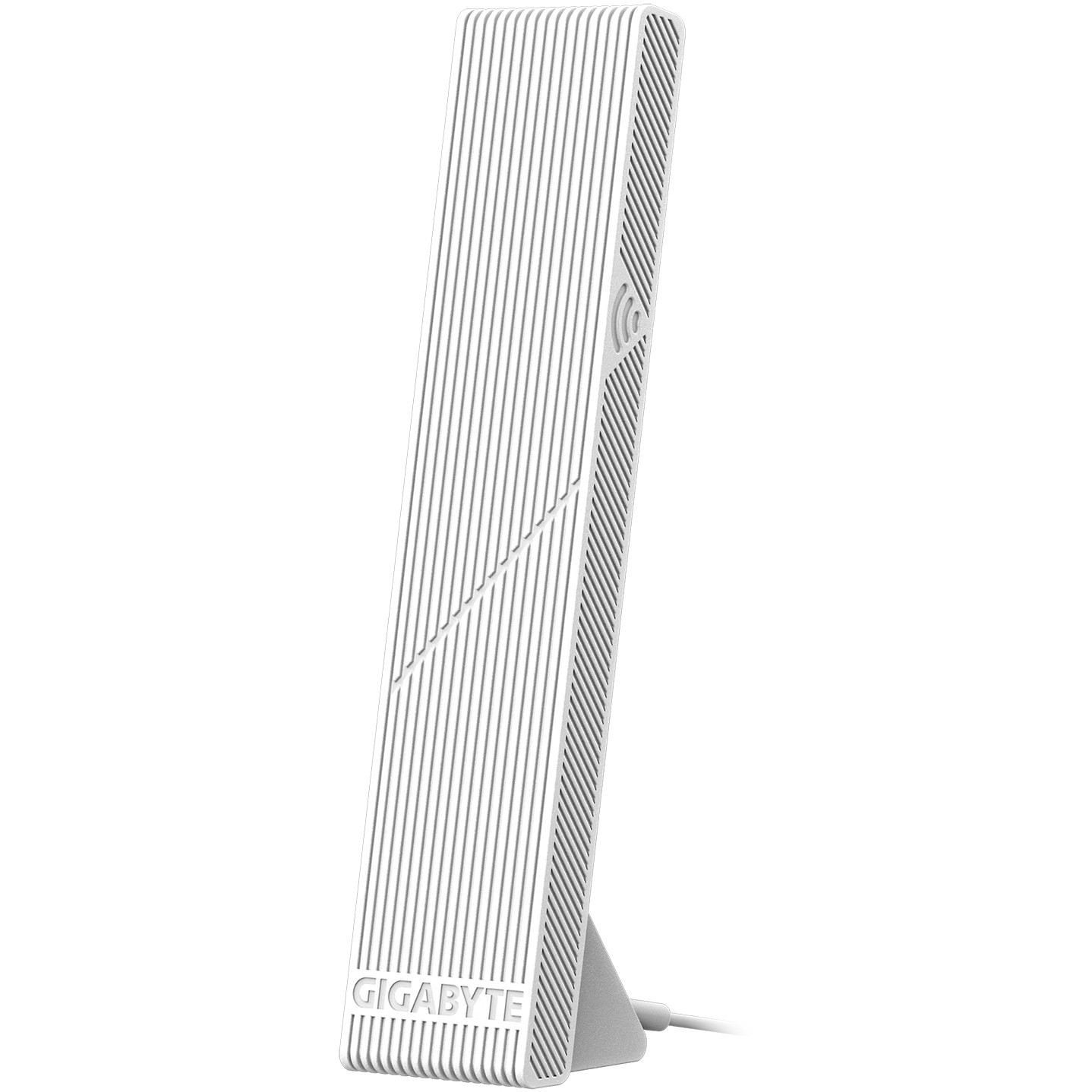

| Included Accessories | Noise detection cable, 4 x thermal pads for M.2 SSD, G-Connector, 2 thermistor cables, Wi-Fi aerial |
| Cables Included | 2 x SATA Express cable 1 x DisplayPort cable |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 30.5 cm |
| Depth | 28.5 cm |
| Brand: | Gigabyte |
