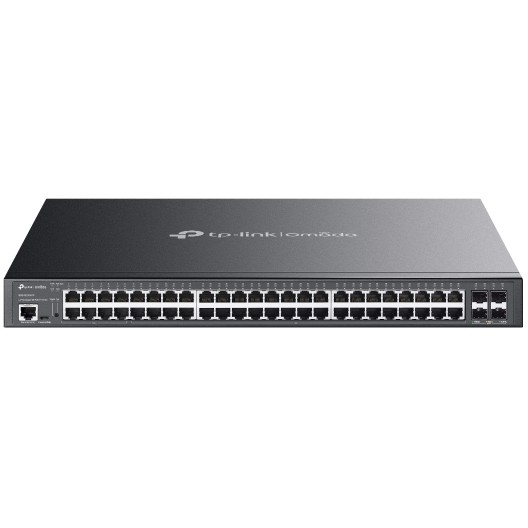

TP-Link Omada Switch 48x GE SG3452XMPP

Product code: 11748722 // MPN: SG3452XMPP // EAN: 8885020620870

€1.473,60 (inc. VAT)

Available from 4 to 10 days (3 pcs available)

Add to wishlist

Switch 5x GE GEU-0522 Kunststoff

Code: 17015222

€22,80

Available from 4 to 10 days

Device Type	Switch - 48 ports - L2+ - Managed
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	40 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE++) + 4 x 10Gb Ethernet SFP+
Power Over Ethernet (PoE)	PoE++
PoE Budget	750 W
Performance	Switching capacity: 176 Gbps ¦ Packet forwarding rate: 130.9 Mpps ¦ Packet buffer size: 12 Mbit
Capacity	Priority queues: 8 ¦ IPv6 interfaces: 128 ¦ IPv4 interfaces: 128 ¦ IPv4 routes (static): 48 ¦ IPv6 routes (static): 48 ¦ Static ARP entries: 128 ¦ ARP entries: 512 ¦ IGMP groups: 1000 ¦ Layer 2 multicast filtering profiles: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 30 ¦ VLAN templates: 16 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 100 ¦ Port security entries: 64
MAC Address Table Size	16K entries
Jumbo Frame Support	9KB
Routing Protocol	IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP, L2PT, PPPoE
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, OAM, ICMP, DHCP, IPv4, IPv6, RSTP, MIB, TCP/IP, UDP, BOOTP
Encryption Algorithm	SSL 3.0, TLS 1.2
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	Flow control, ARP support, ISP, VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, Cable Diagnostics Function, bandwidth control, DLDP support, DHCP relay, Port Security, MVR, GVRP, NDP, port isolation, CoS, SP, tagged VLAN, security lock slot (cable lock sold separately), 802.1x authentication, metal housing, ToS, ERPS, system log, ARP inspection, Link Aggregation, rate limit, DDM, fast leave, AAA, Voice VLAN, IPMB, Private VLAN, Guest VLAN, proxy ARP, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, loopback detection, MAB, queue scheduling support, schedule reboot, DSCP prioritisation, LLDP-MED, path MTU discovery, DoS protection, automatic device discovery
Compliant Standards	IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bt
RAM	512 MB
Flash Memory	32 MB
Built-in Devices	3 x fans
Status Indicators	Power, system, link/activity, fan, PoE max
[Expansion / Connectivity]
Interfaces	40 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 8 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W ¦ 2 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x console (micro-USB)
[Power]
Power Device	Internal power supply
Voltage Required	AC 100-240 V (50/60 Hz)
Power Consumption Stand by	26.5 Watt
[Miscellaneous]
Included Accessories	Rubber feet
Rack Mounting Kit	Included
Compliant Standards	FCC, RoHS
[Software / System Requirements]
OS Required	UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11
[Dimensions & Weight]
Width	44 cm
Depth	33 cm
Height	4.4 cm
[Environmental Parameters]
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	10 - 90% RH (non-condensing)
Min Storage Temperature	-40 °C
Max Storage Temperature	70 °C
Humidity Range Storage	5 - 90% RH (non-condensing)
