16-PORT 10G MANAGED SWITCH

Product code: 11765622 // MPN: XSM4316-100NES // EAN: 0606449161472

€3.297,95 (inc. VAT)

Available from 4 to 10 days (2 pcs available)

Add to wishlist

48+4P Cambium EX2052 M

Code: 11839222

€2.629,85

Available from 4 to 10 days

Device Type	Switch - 16 ports - L3 - Managed - stackable

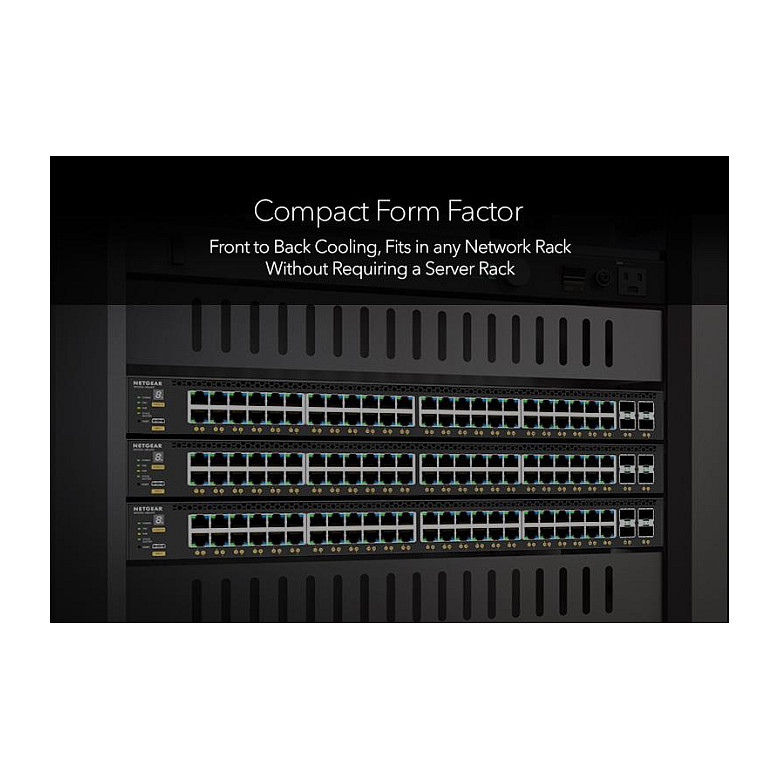

Enclosure Type	Front to back airflow rack-mountable 1U
Subtype	10 Gigabit Ethernet
Ports	8 x 10/100/1000/2.5G/5G/10GBase-T + 8 x 1 Gigabit / 10 Gigabit SFP+
Performance	Routing/switching capacity: 320 Gbps Throughput: 238.08 Mpps
Capacity	Packet buffer size: 32 MB Multicast entries (IPv4): 512 Multicast entries (IPv6): 256 VLANs supported: 4000 Jumbo frame size: up to 12000 IGMP multicast groups: 2000 DHCP users: 2000 ARP entries: 4000 NDP entries: 512
MAC Address Table Size	16K entries
Jumbo Frame Support	12KB
Routing Protocol	RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP
Remote Management Protocol	SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS
Encryption Algorithm	SHA, MD5, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0, SSL 3.0
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	BOOTP support, DHCP support, ARP support, DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, NSF, sFlow, RSTP support, MSTP support, LLDP support, LACP, MIB, CoS, PTP, PIM
Compliant Standards	IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1BA, IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak
Processor	X ARM Cortex-A57: 1.8 GHz
RAM	2 GB DDR4 SDRAM
Flash Memory	512 GB
Status Indicators	Speed/activity, link
[Expansion / Connectivity]
Interfaces	8 x 100/1000/2.5G/5G/10GBase-T RJ-45 8 x 1/10GBase-X SFP+ 2 x USB Type A 1 x management (Gigabit LAN) RJ-45 1 x console (USB) Type C
[Power]
Power Device	Internal power supply
Installed Qty	1
Max Supported Qty	1
Power Provided	240 Watt
Power Consumption Operational	81.1 Watt
Power Consumption Stand by	30.5 Watt
[Miscellaneous]
Included Accessories	Rubber caps, rubber feet, mounting brackets
Cables Included	1 x console cable
Rack Mounting Kit	Included
MTBF	1,101,630 hours
Compliant Standards	EN 55032:2012+AC:2013 Class A, CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, AS/NZS CISPR32:2013 Class A, GB 4943.1-2011, GB/T9254-2008 Class A, VCCI-CISPR 32:2016 Class A, YD/T993-1998, FCC CFR 47 Part 15 Class A, ICES-003:2016 issue 6 Class A, ANSI C63.4:2014, BSMI CNS 13438 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, RCM, CCC, AN/NZS 60950.1:2015, BSMI CNS 14336-1
Localisation	North America, United Kingdom, Europe
[Dimensions & Weight]
Width	22 cm
Depth	40 cm
Height	4.32 cm
Weight	4.05 kg
[Manufacturer Warranty]
Service & Support	Limited warranty - lifetime
[Environmental Parameters]
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Humidity Range Operating	90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	95% (non-condensing)
