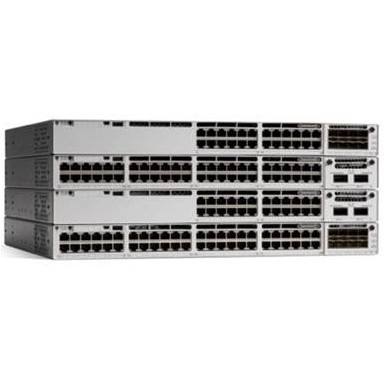

Cisco CATALYST 9300L 48P POE

Product code: 11790322 // MPN: C9300L-48P-4G-E // EAN: 0889728174633

€8.260,90 (inc. VAT)

Available from 4 to 10 days (3 pcs available)

Add to wishlist

52P D-Link DGS-1510-52XMP PoE+ M Gigabit Stack

Code: 11705522

€2.158,20

Available from 4 to 10 days

Device Type	Switch - 48 ports - L3 - stackable
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit Ethernet SFP+
Power Over Ethernet (PoE)	PoE+
PoE Budget	505 W
Performance	Switching capacity with stacking: 424 Gbps Â¦ Switching capacity: 104 Gbps Â¦ Forwarding rate: 77.38 Mpps Â¦ Forwarding rate with stacking: 315.48 Mpps
Capacity	IPv4 routes: 32000 Â¦ IPv6 routes: 16000 Â¦ Multicast scale: 8000 Â¦ QoS scale entries: 5120 Â¦ ACL scale entries: 5120 Â¦ Routed ports: 416 Â¦ VLANs supported: 4094 Â¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features	Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3bz
RAM	8 GB
Flash Memory	16 GB
Expansion / Connectivity	Expansion / Connectivity
Interfaces	48 x 1000Base-T RJ-45 Â¦ 4 x 1000Base-X SFP+ uplink
Power	Power
Power Device	Internal power supply - hot-plug
Installed Qty	1
Max Supported Qty	2
Power Redundancy	Optional
Power Provided	715 Watt
Voltage Required	AC 120/230 V (50 - 60 Hz)
Miscellaneous	Miscellaneous
MTBF	314,140 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Dimensions & Weight	Dimensions & Weight
Width	44.5 cm
Depth	4.4 cm
Height	40.9 cm
Weight	7.03 kg
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - lifetime - response time: next business day
Environmental Parameters	Environmental Parameters
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-40 Â°C
Max Storage Temperature	70 Â°C
Humidity Range Storage	5 - 90% (non-condensing)
